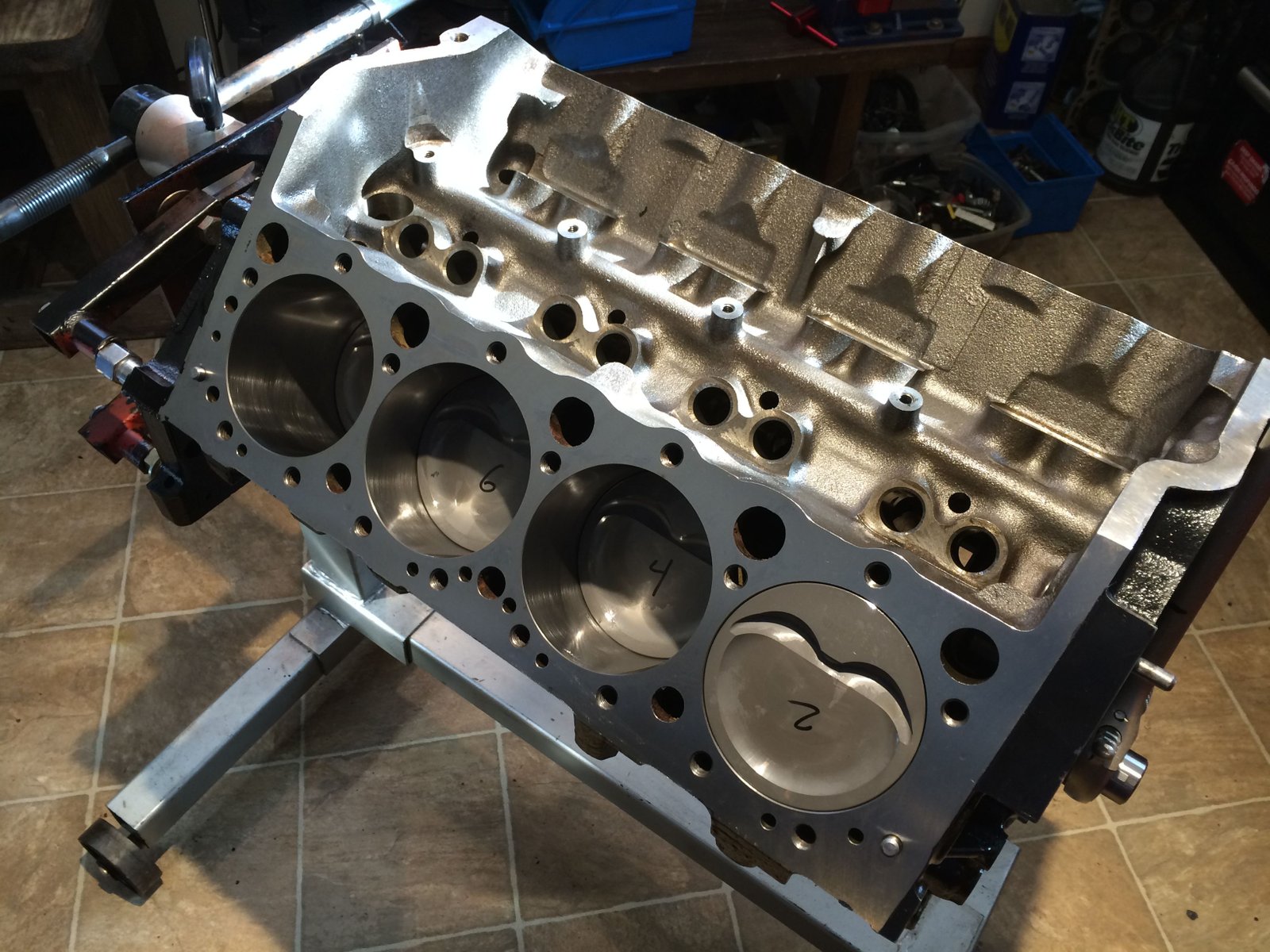

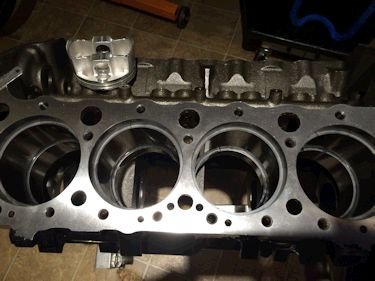

The block is 1/2 way finished. It is bored and honed and
decked and clearanced for rods. It still needs 4-bolt cap
installation.
|
![](15t.jpg)

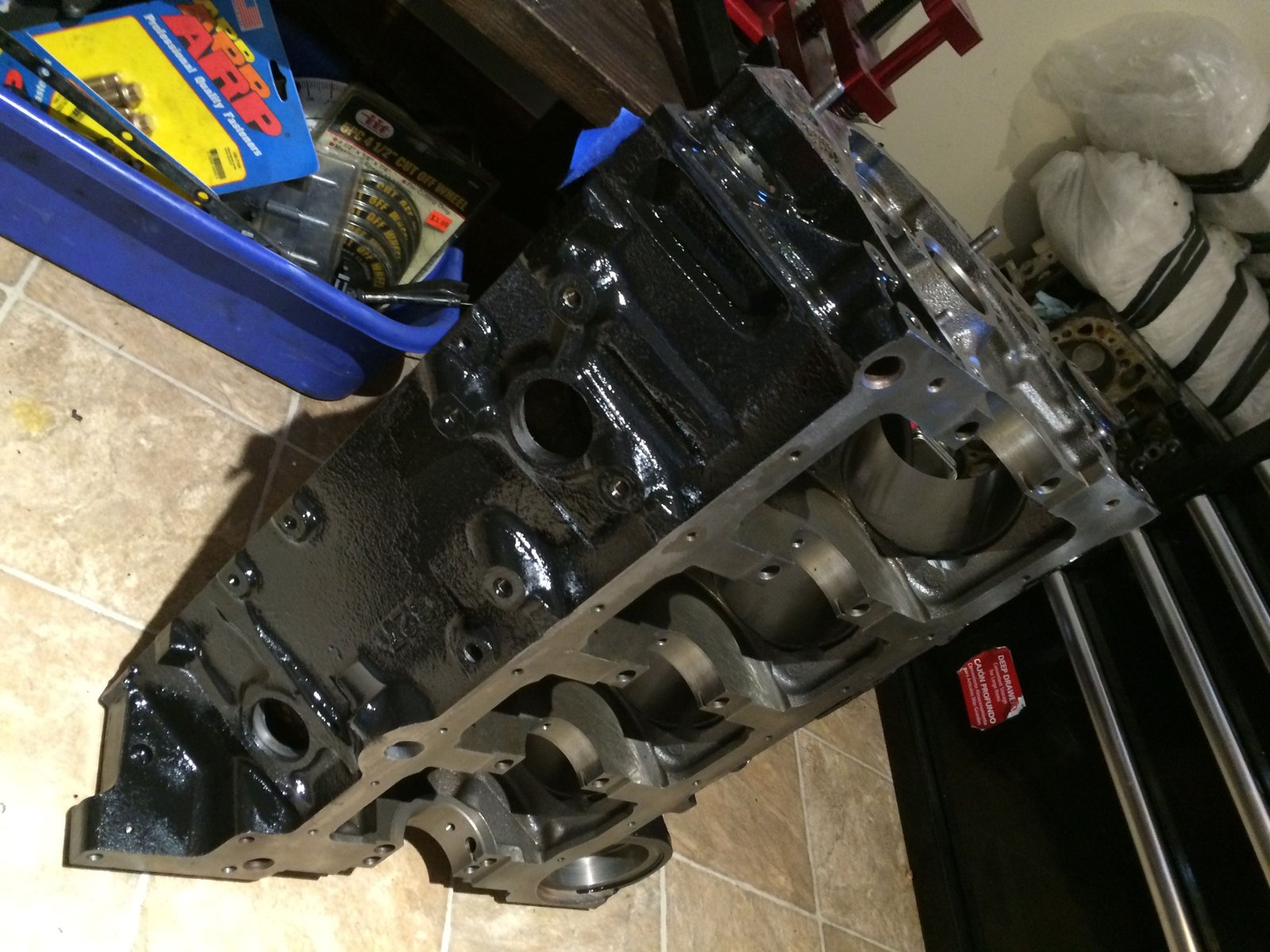

Here she is posing. I smooth the rough edges of the block
prior to painting. POR15 Engine black is my paint of choice.
|
![](420t.jpg)

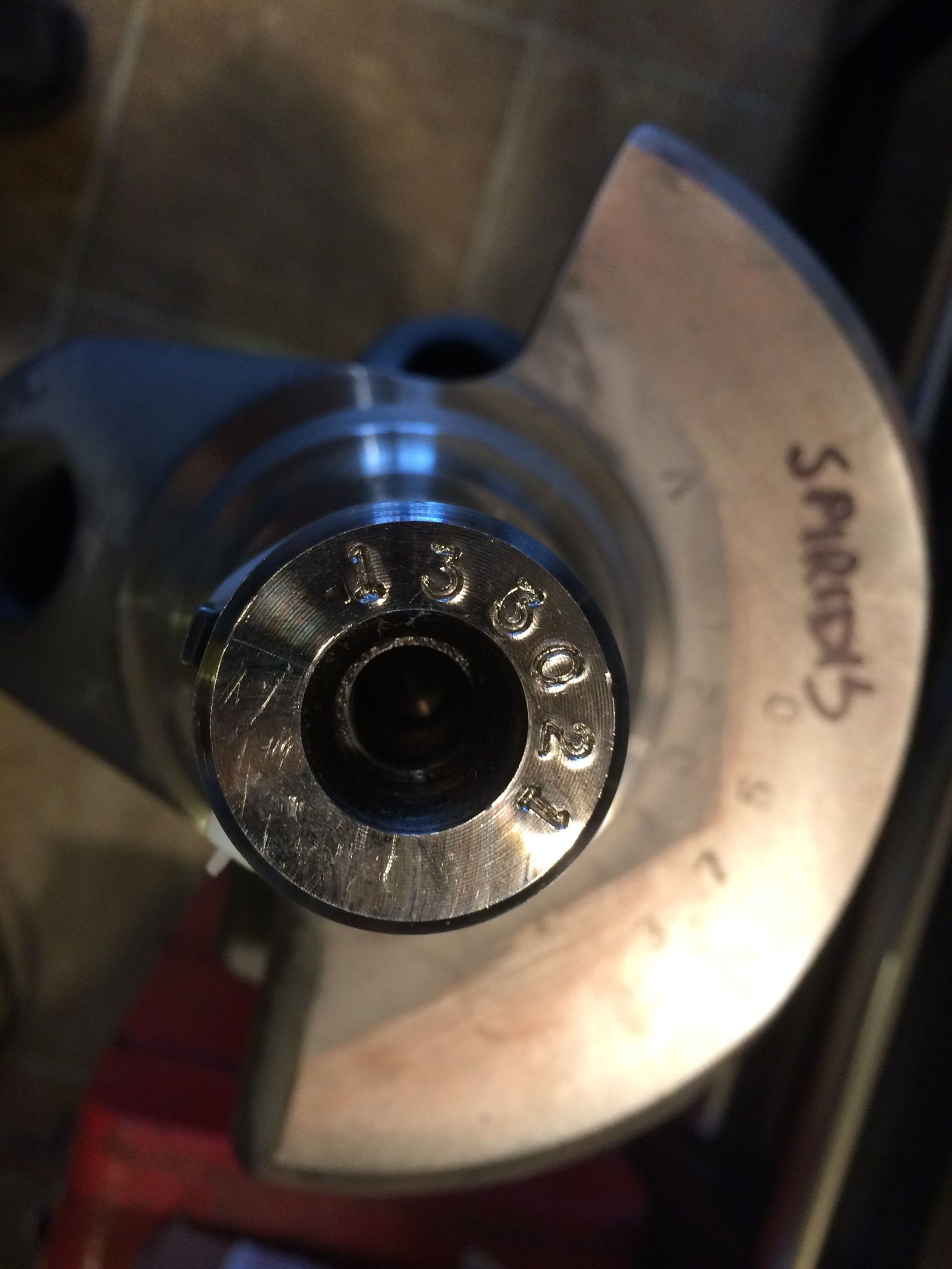

Callies Dragonslayer
|
![](421t.jpg)

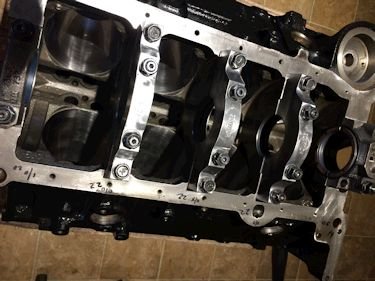

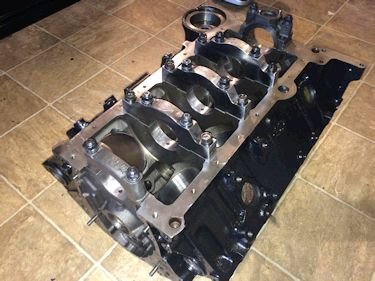

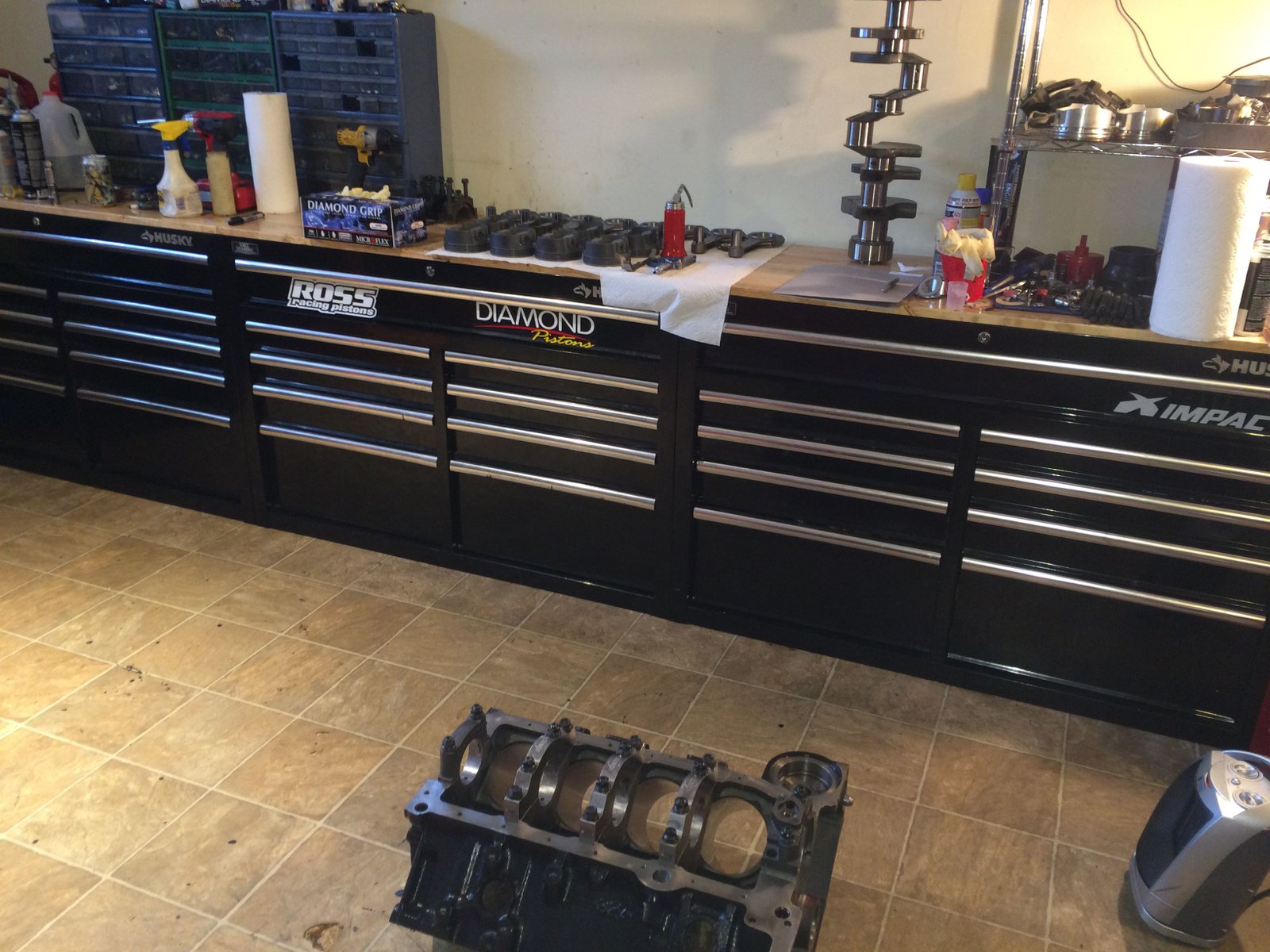

The block has returned from the main cap installation shop.
|
![](422t.jpg)

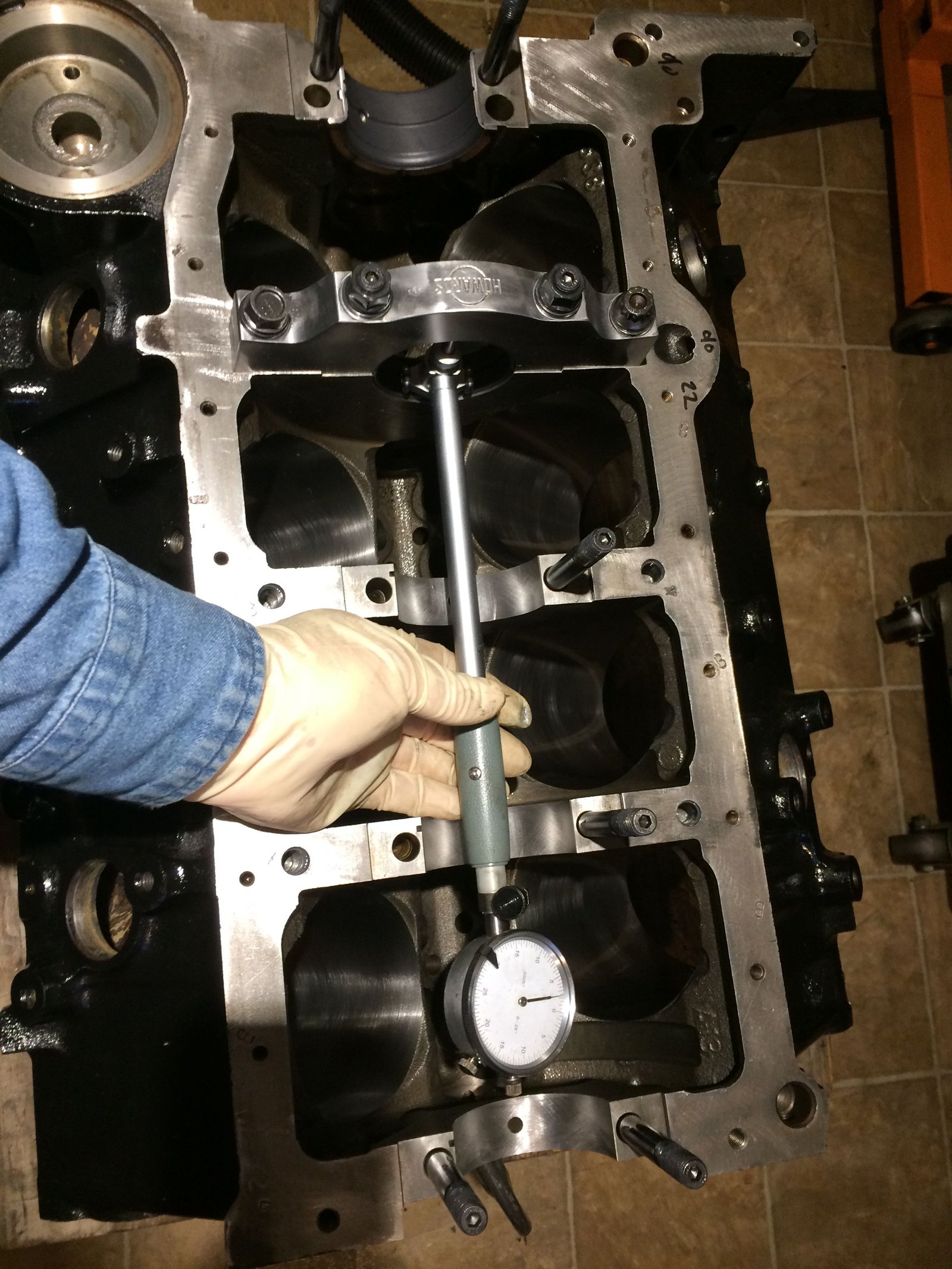

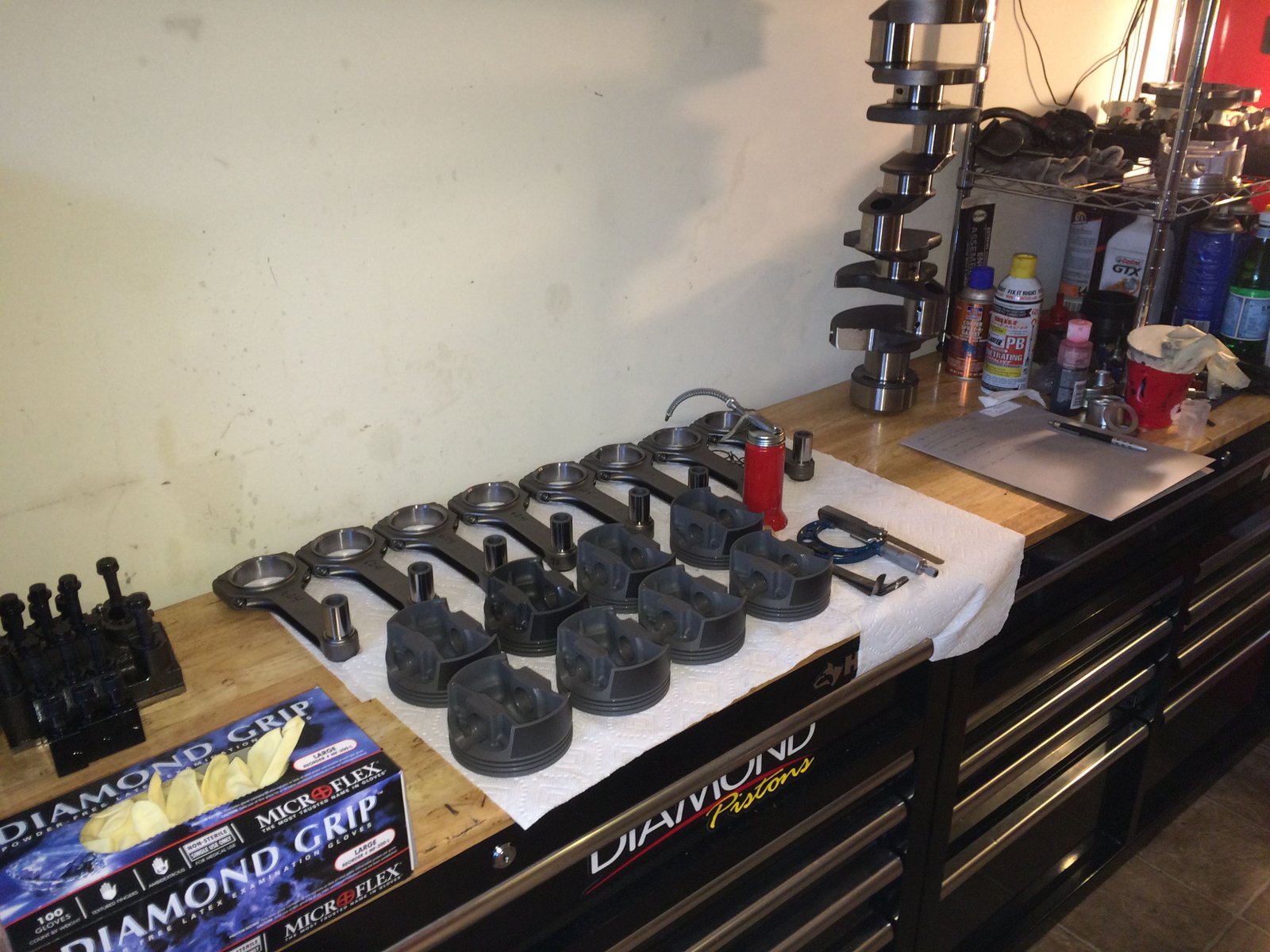

Setting up to measure rod bearing clearance and main bearing
clearance.
|
|
![](424t.jpg)

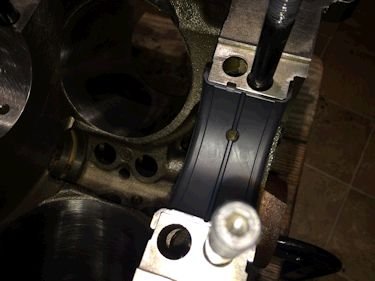

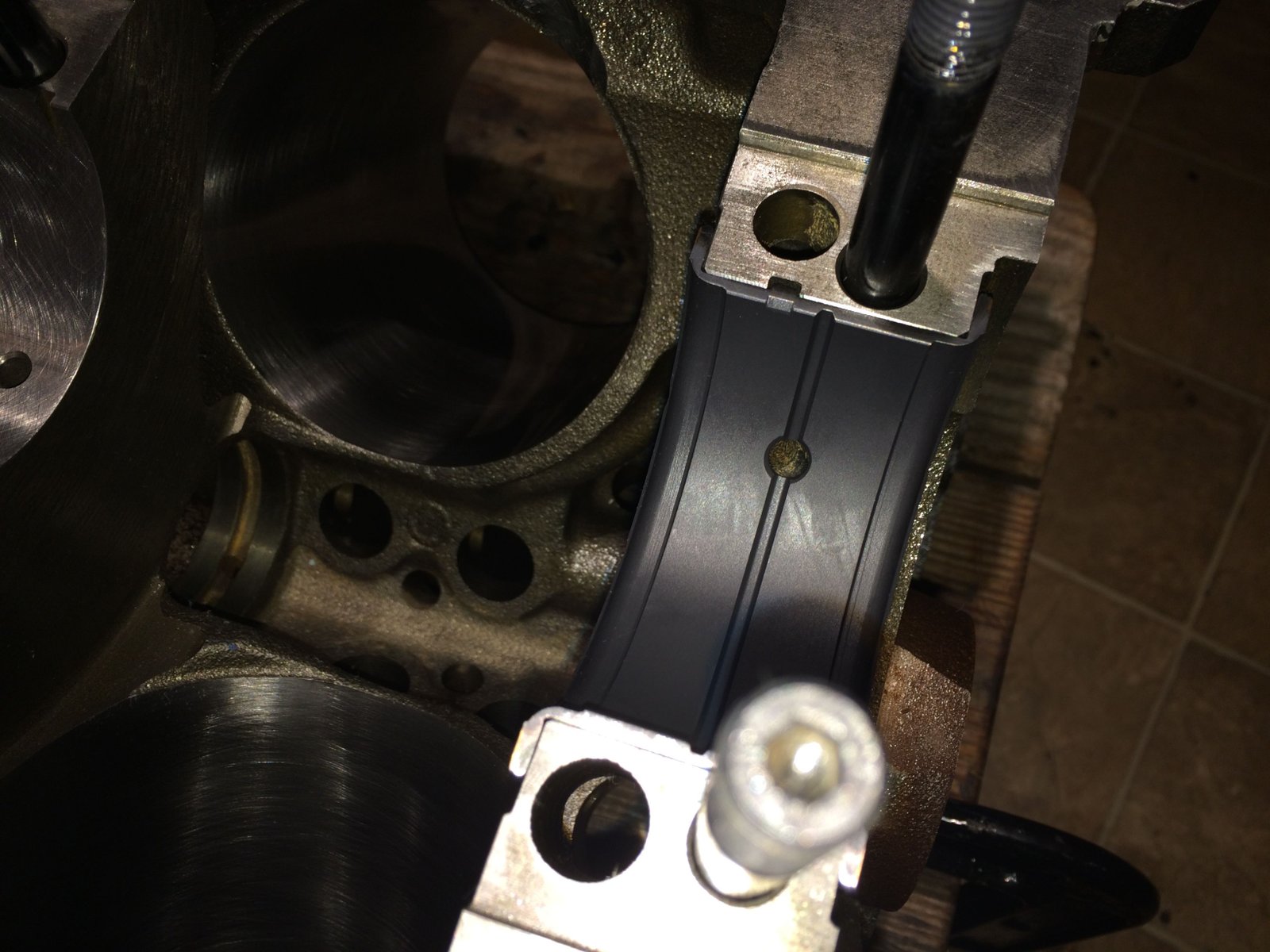

Coated main bearings.
|
![](425t.jpg)

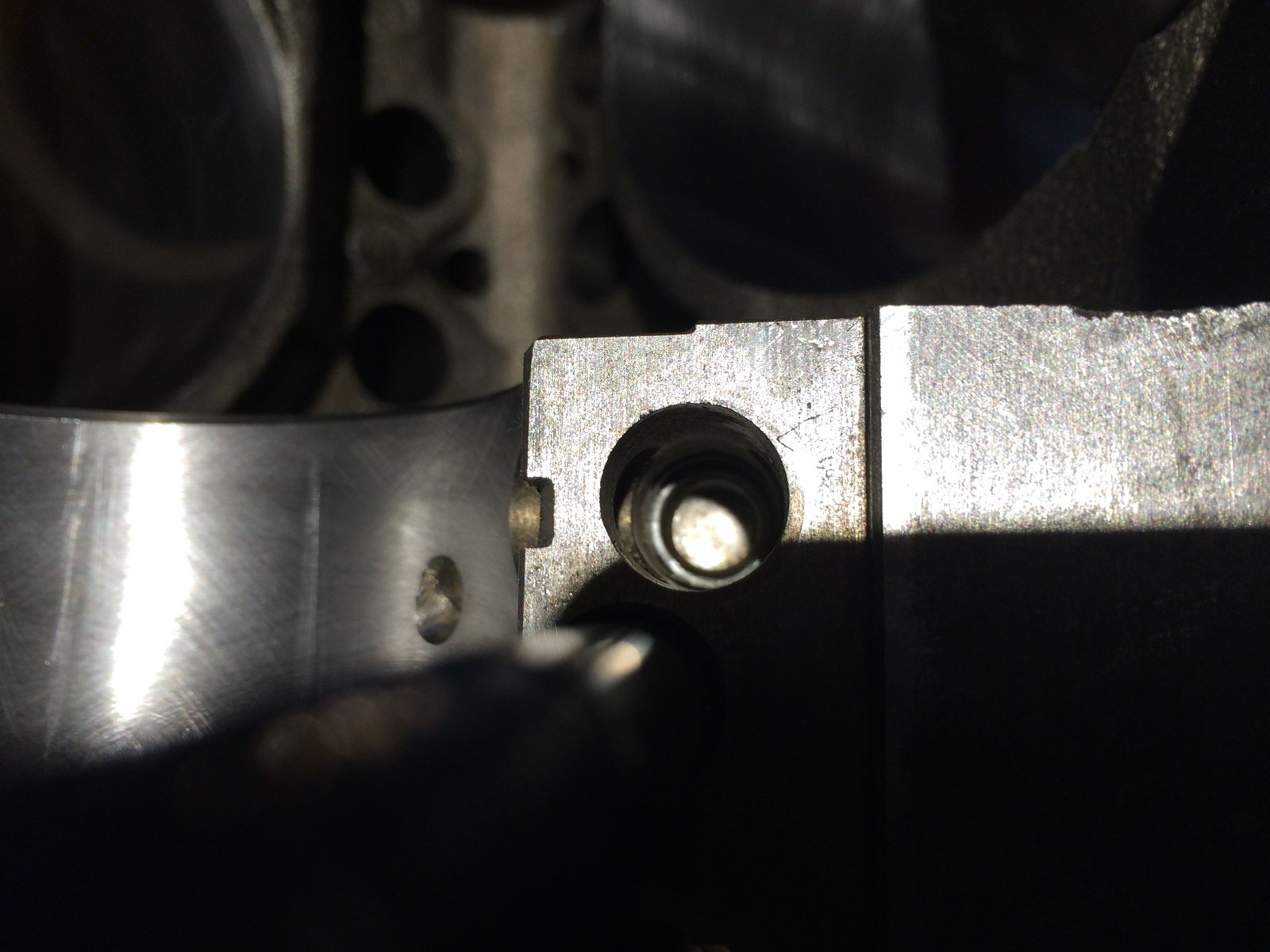

Oil galley plug.
|
|
|
|

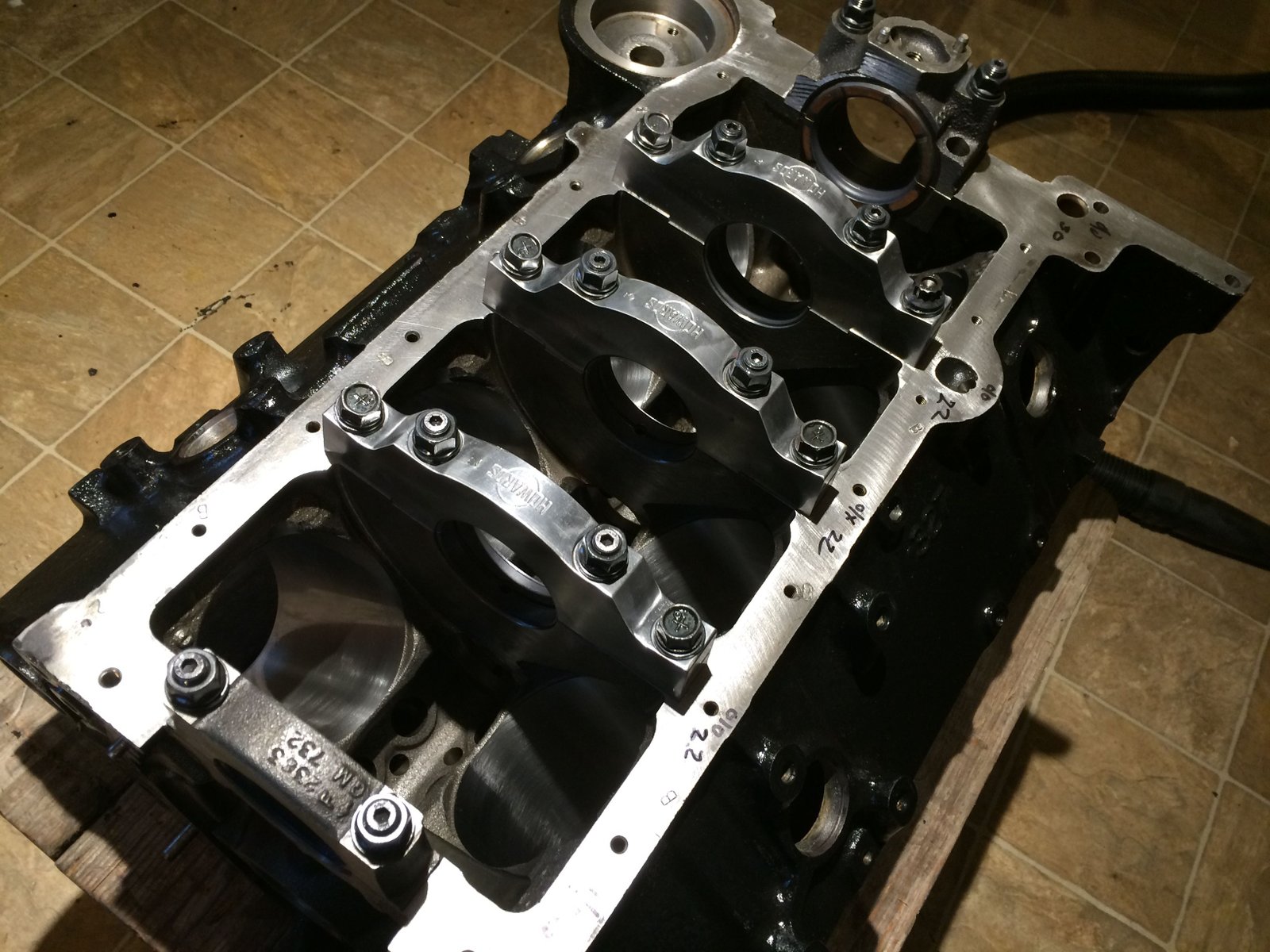

![](429t.jpg)
Mains are from .020" to .030"
|
![](448t.jpg)

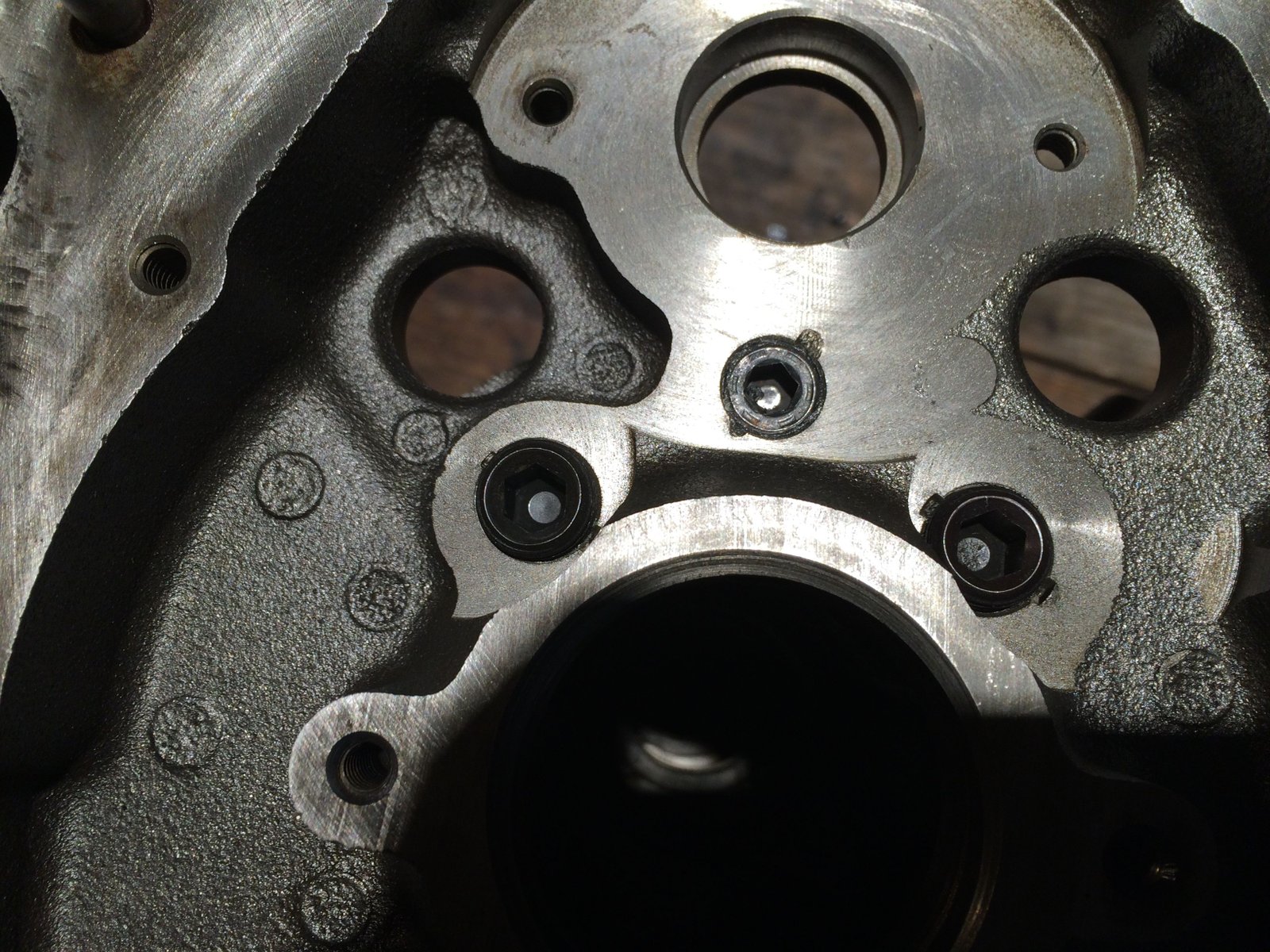

Front oil galleys threaded for plugs.
|
![](450t.jpg)

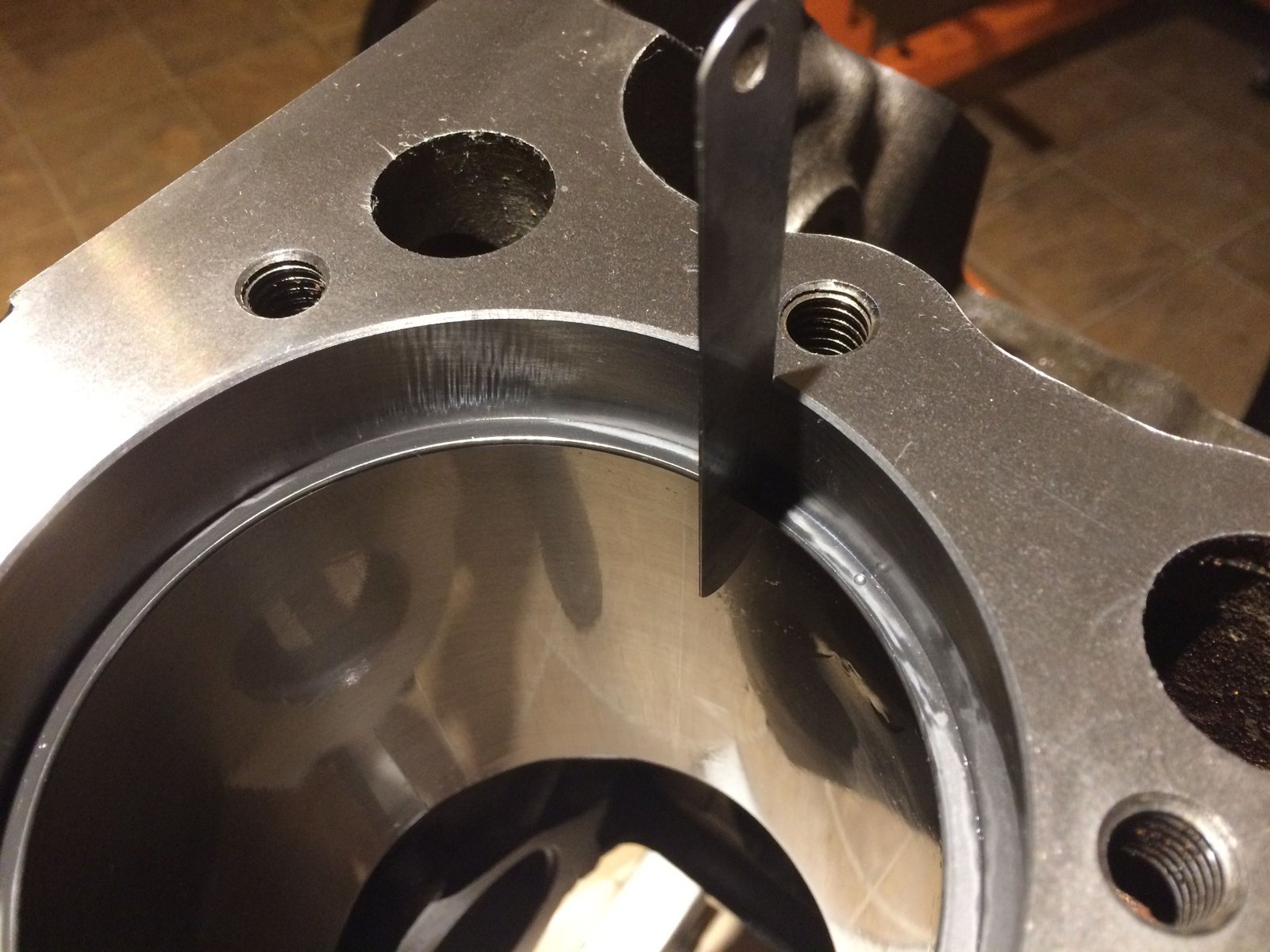

Top ring at .020"
|
![](453t.jpg)

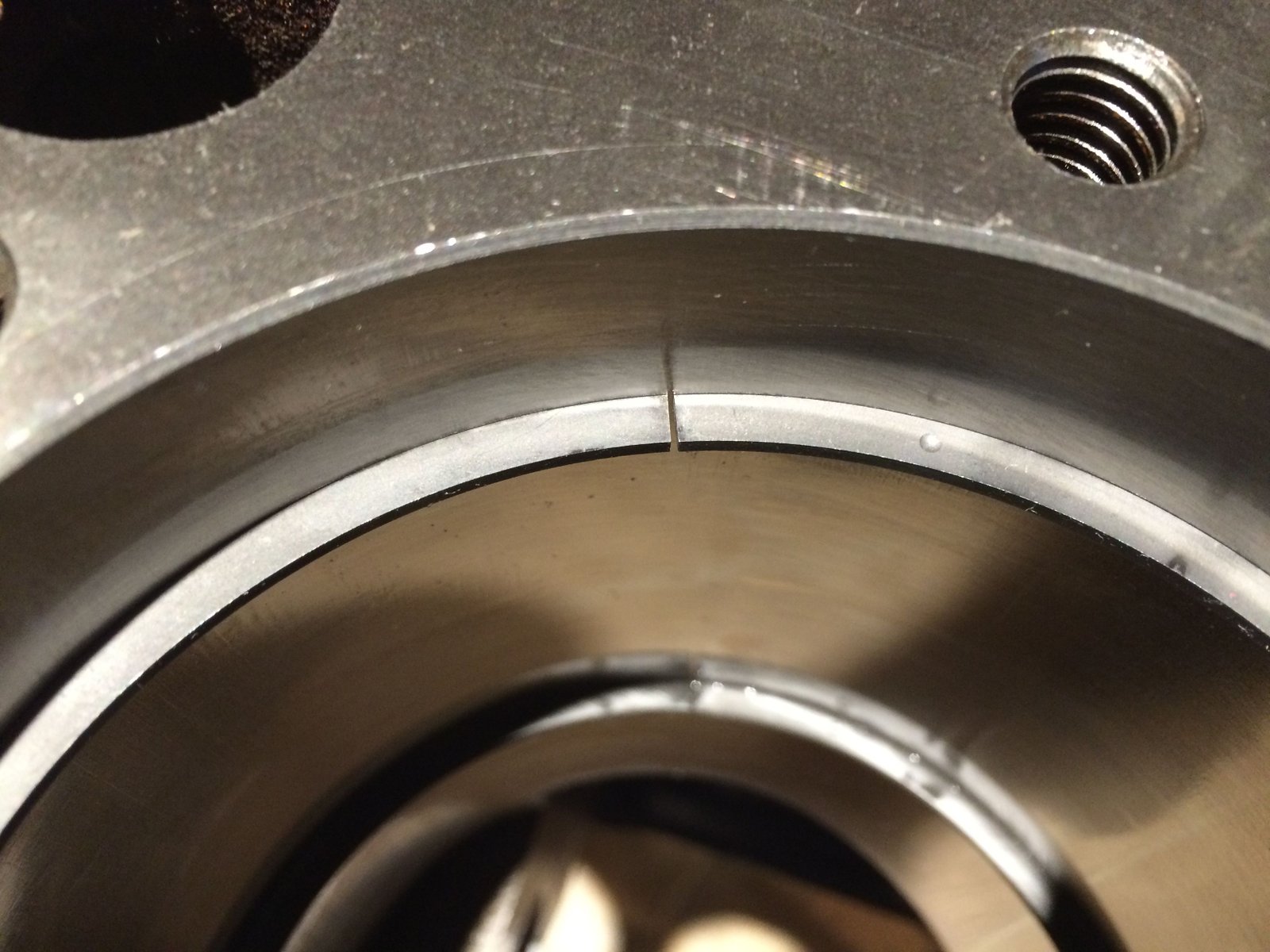

2nd ring at .020"
|
|
|
![](457t.jpg)
Clevite CB-663HNK
|
|
![](460t.jpg)

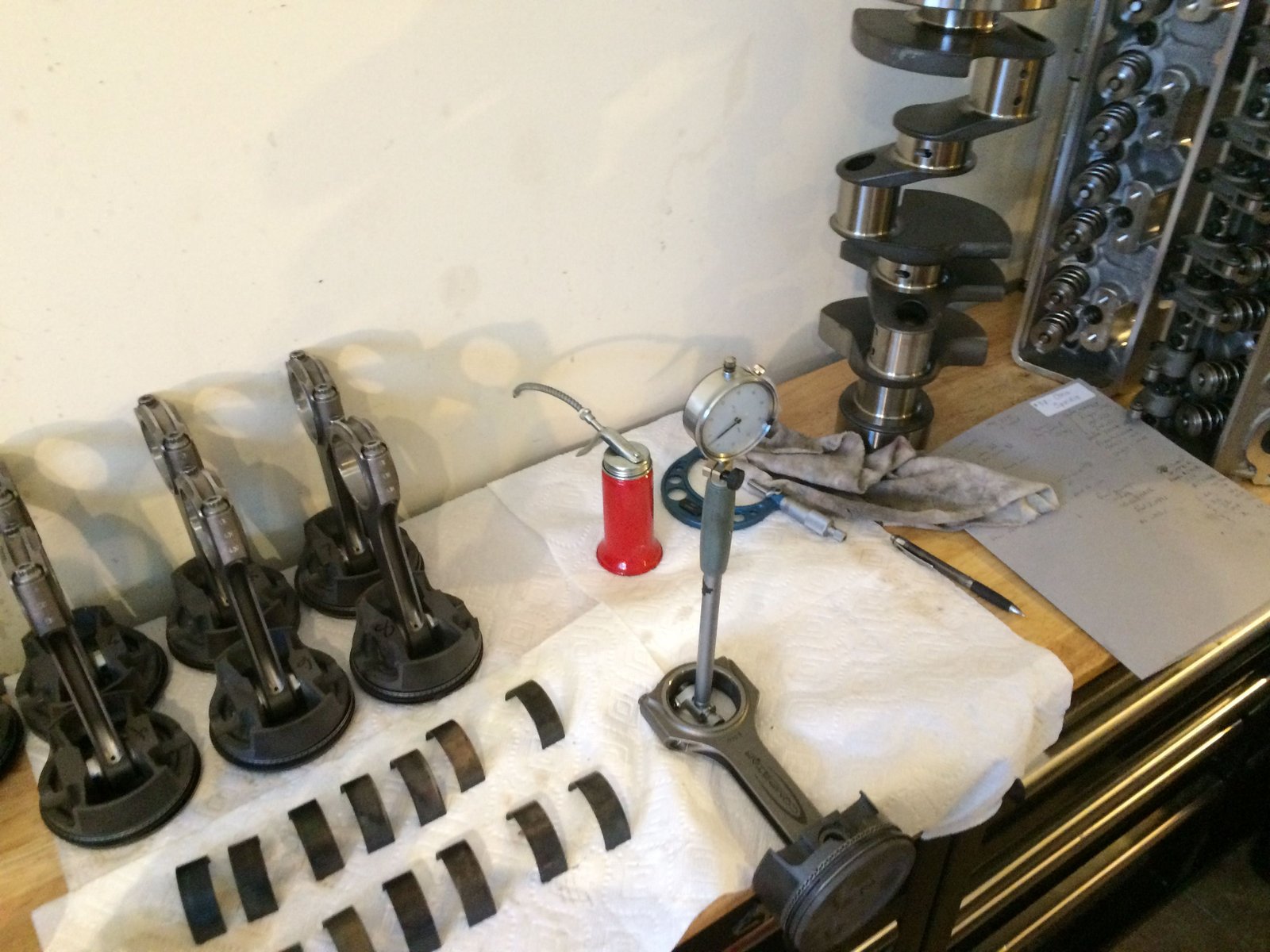

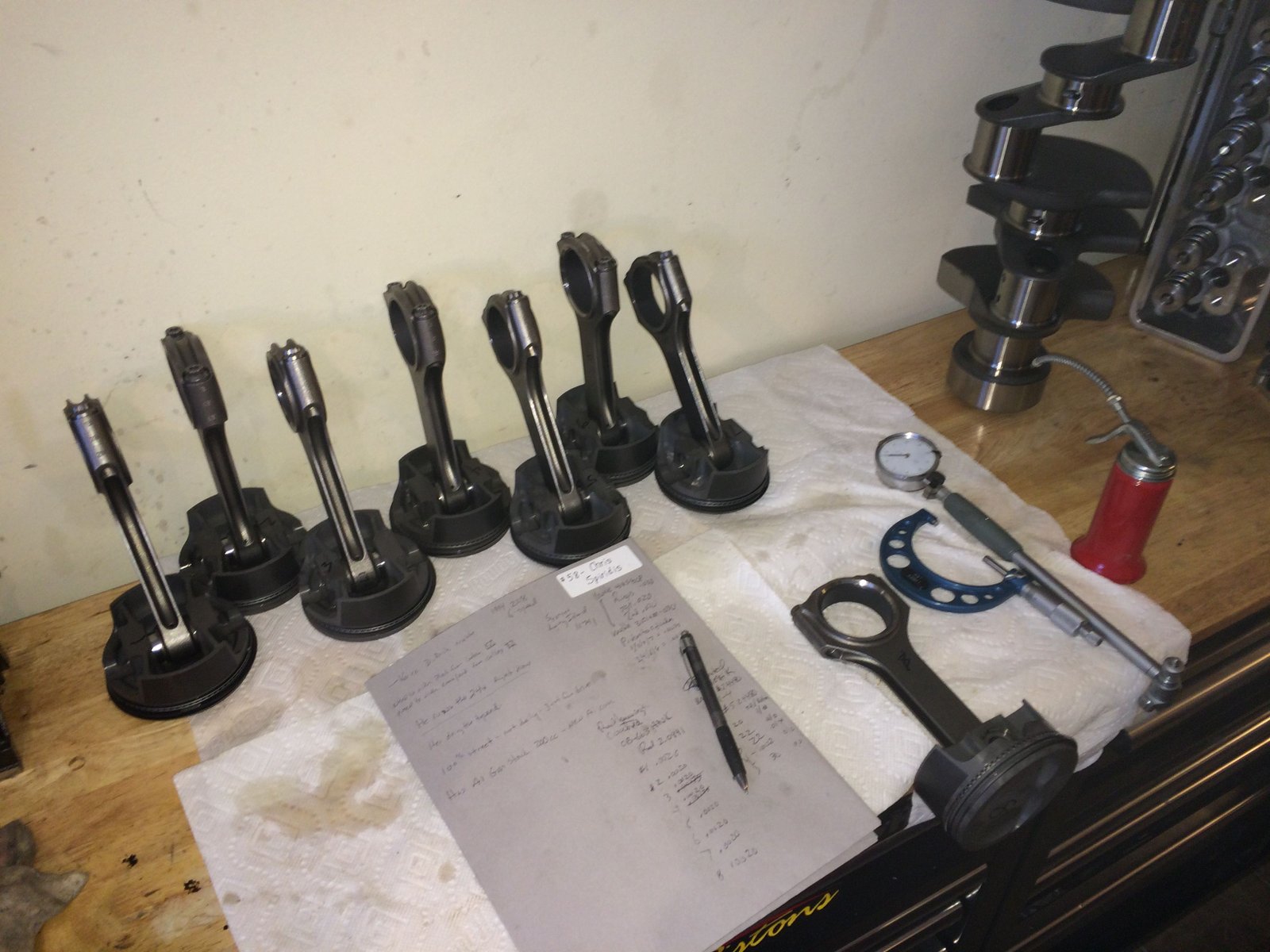

Rod bearing clearance at .0020"
|
|

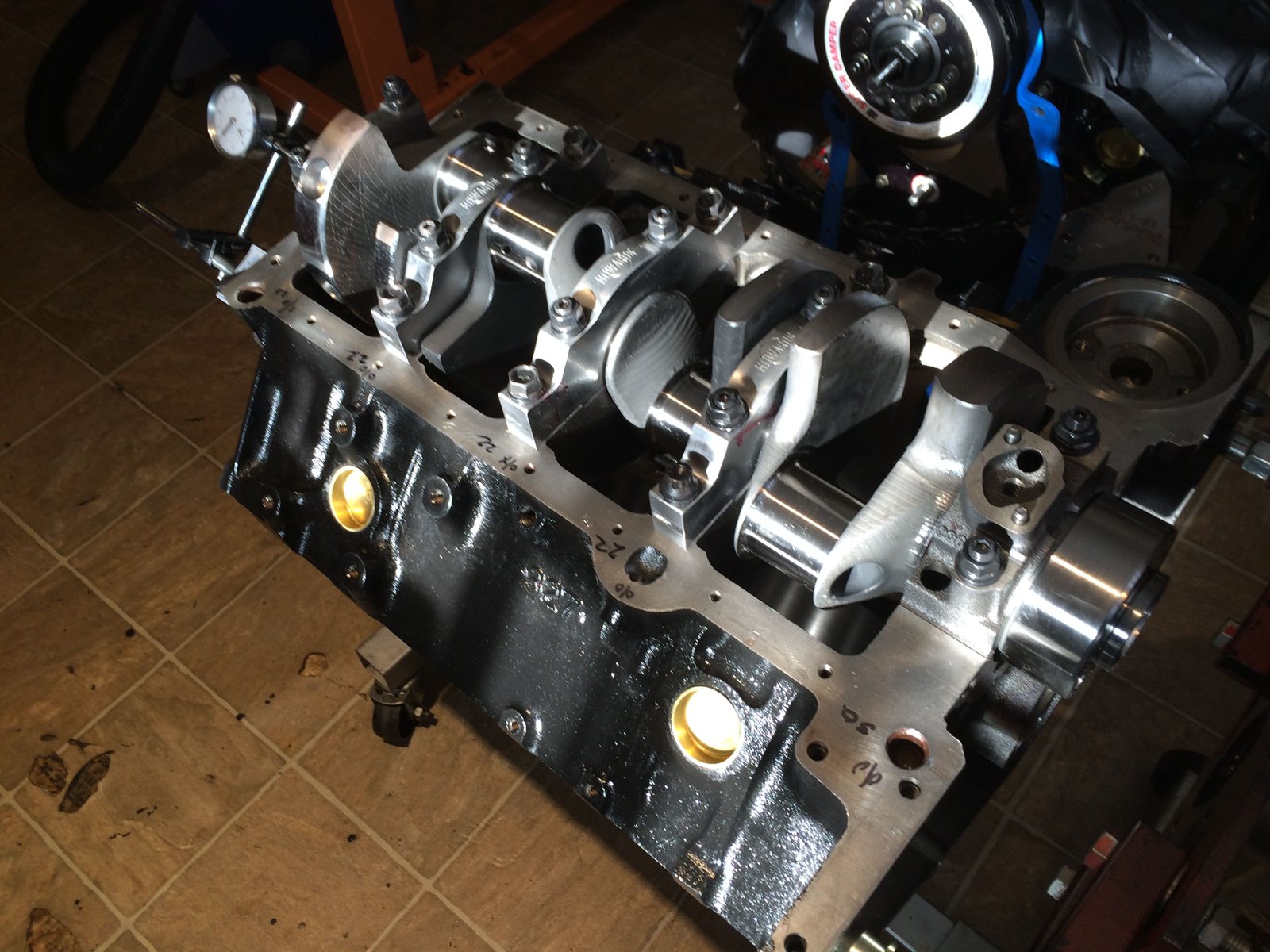

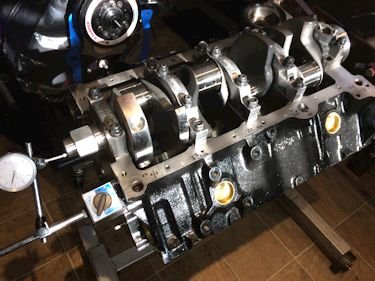

![](462t.jpg)

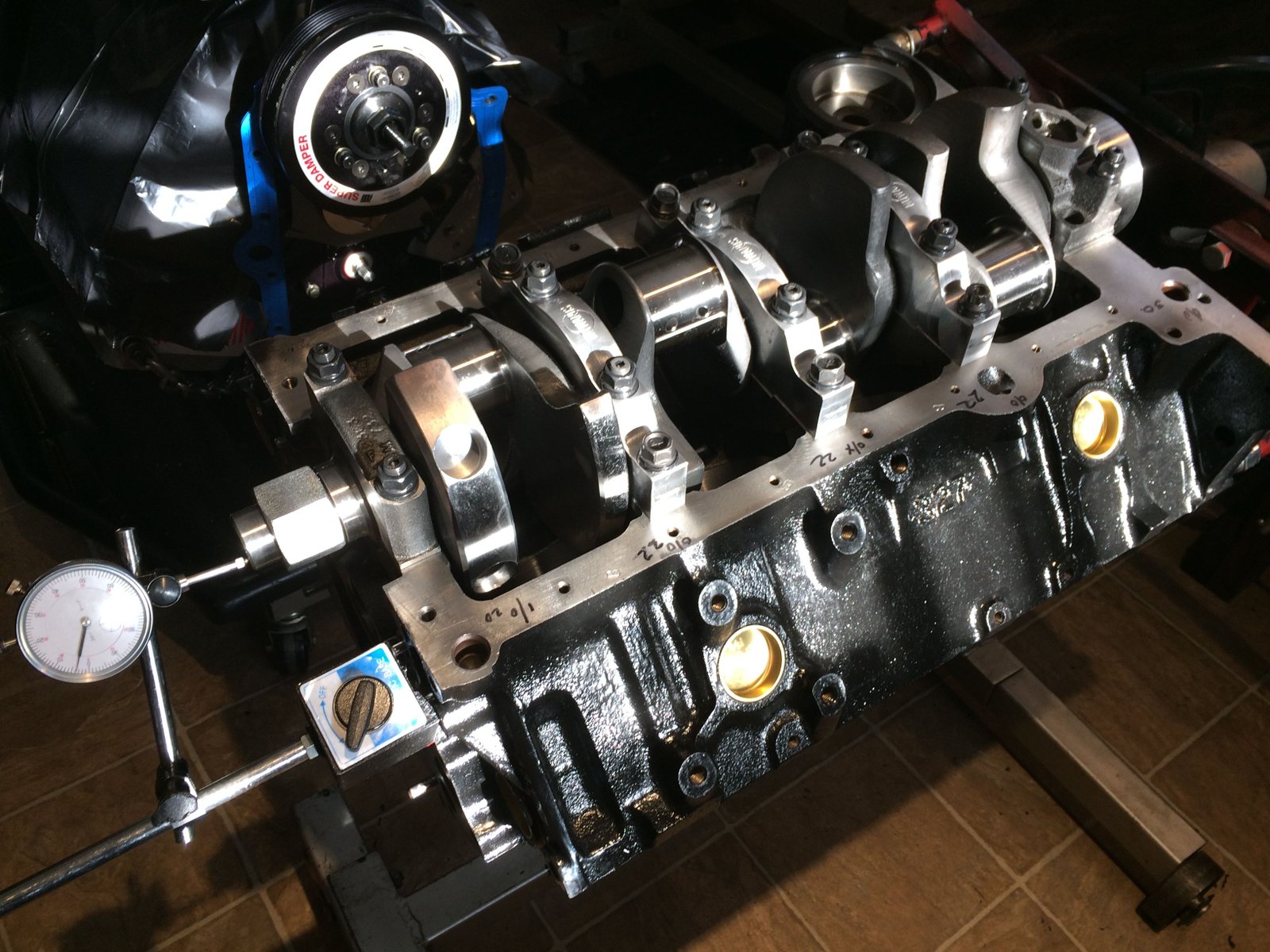

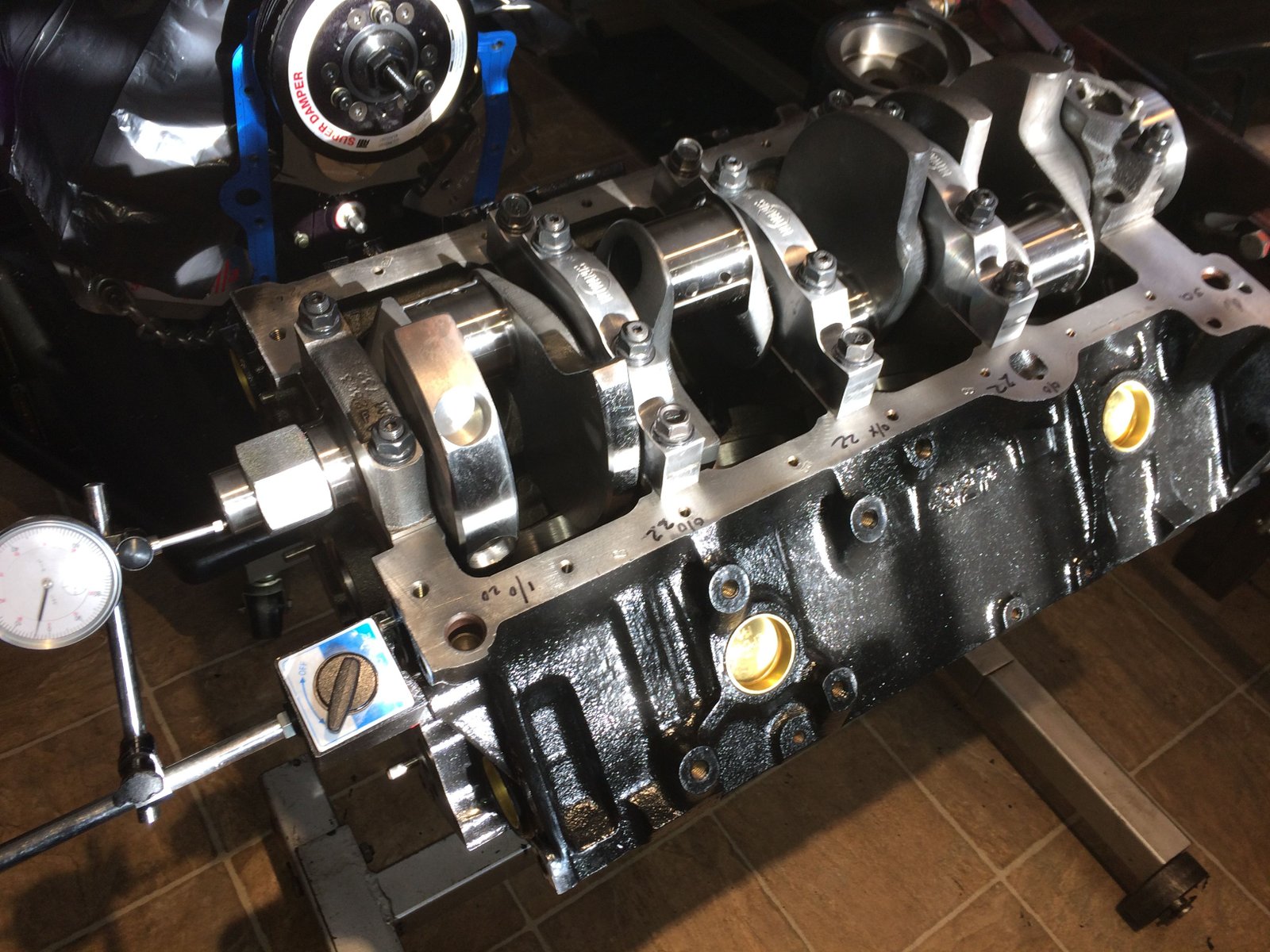

Crank thrust is .006"
|
|
![](465t.jpg)

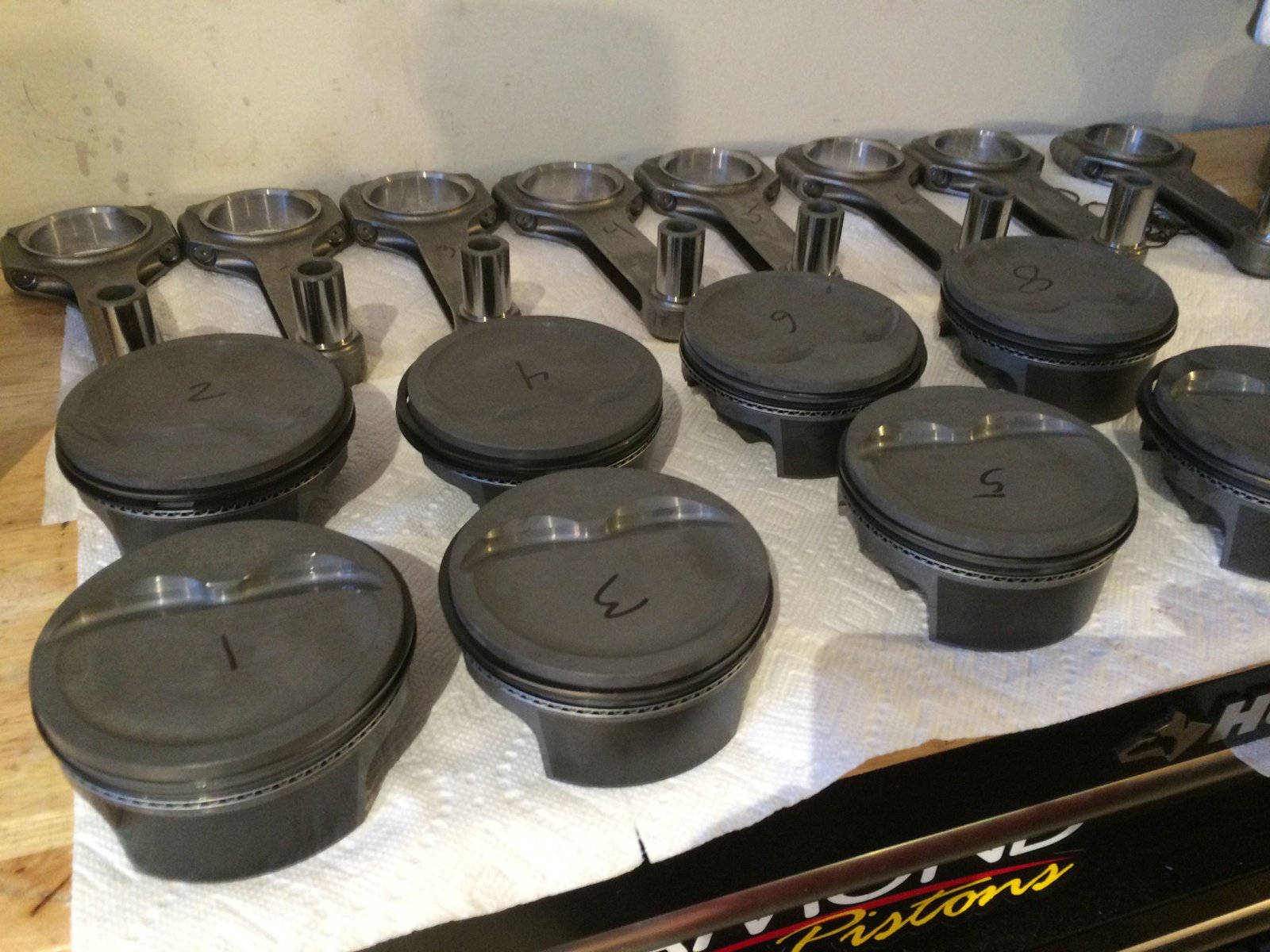

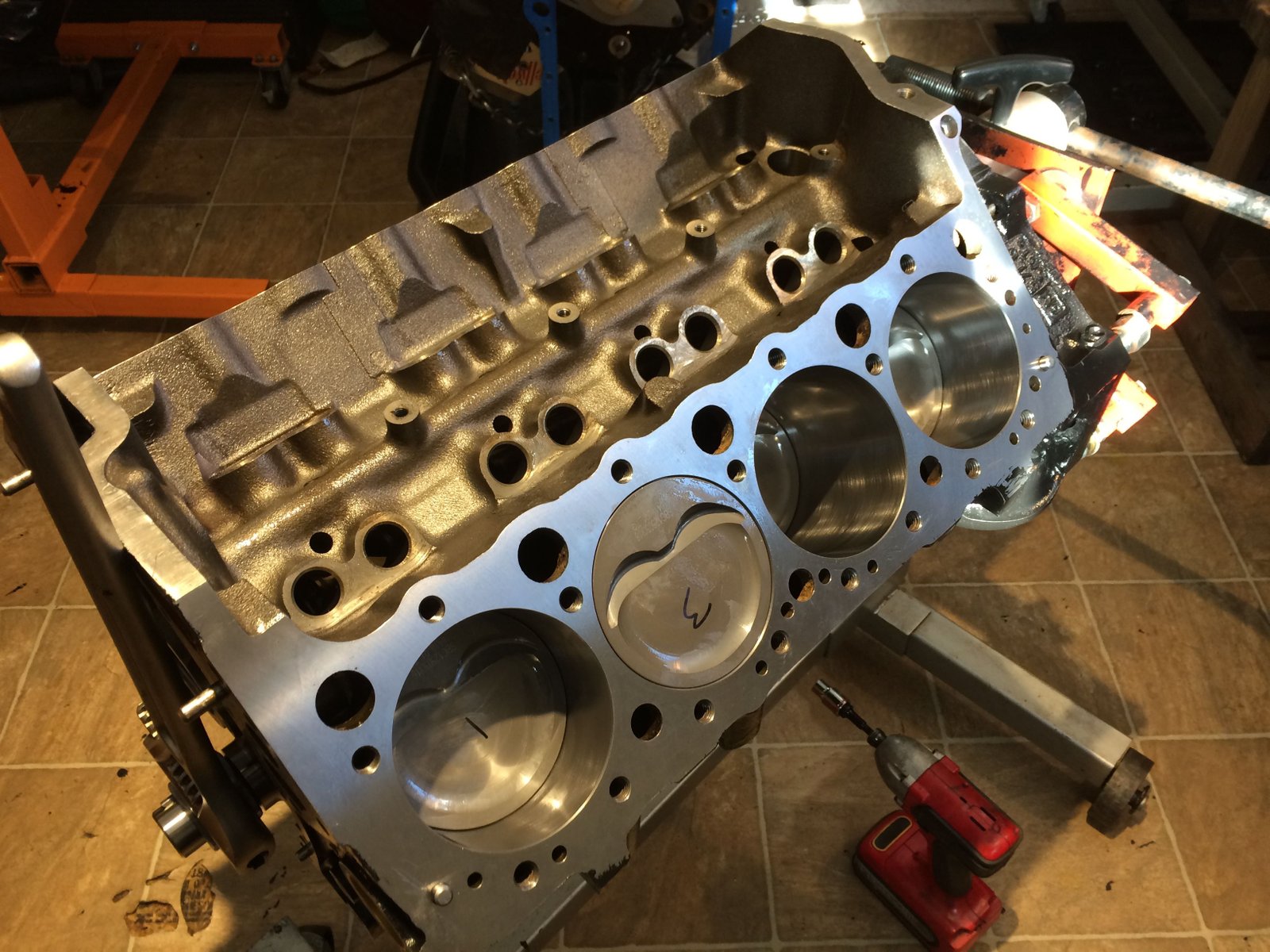

Mahle -16cc D-dish pistons are all in.
|
|
|
![](470t.jpg)

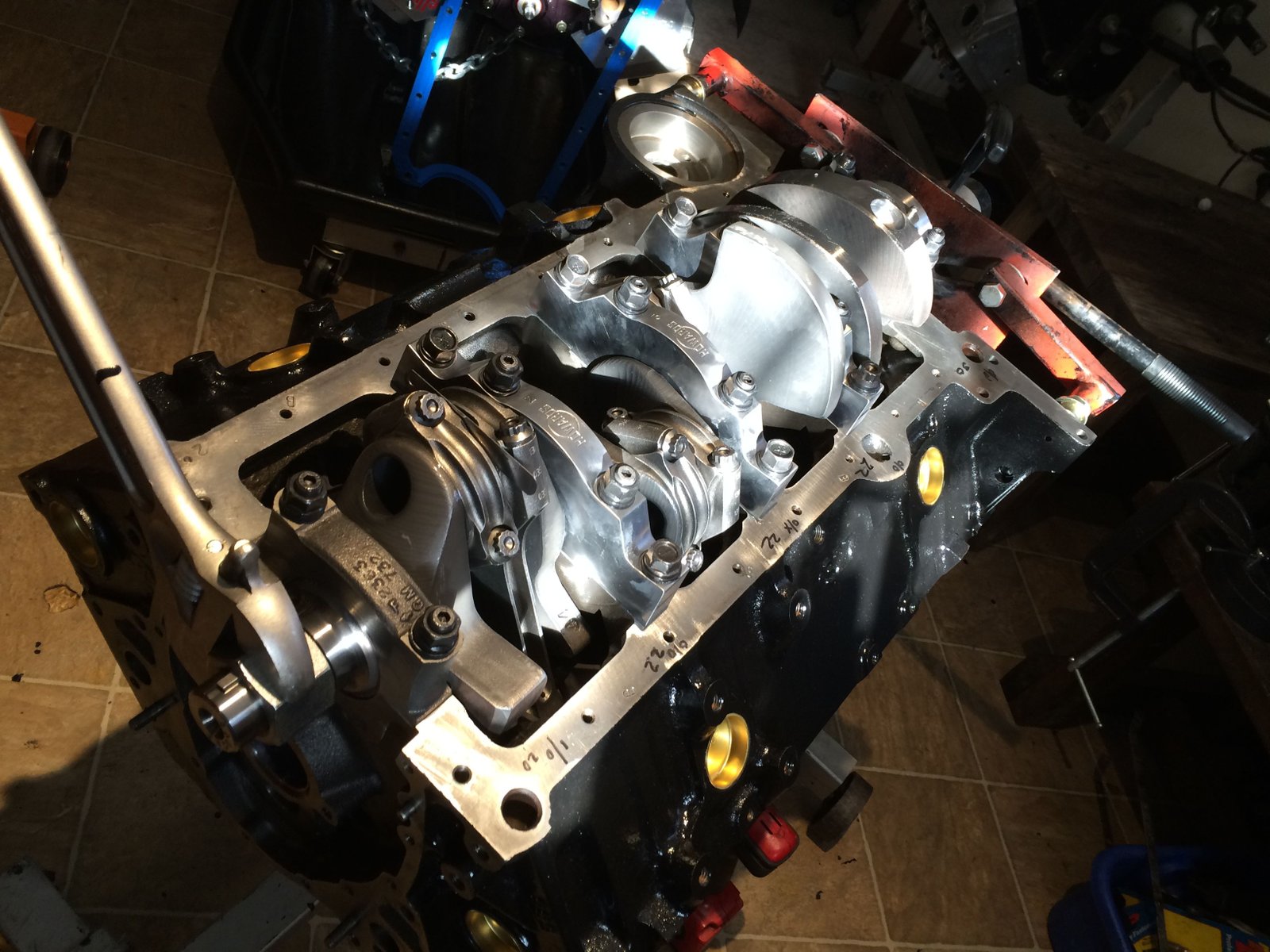

Rod bolts at 75ft-lb
|

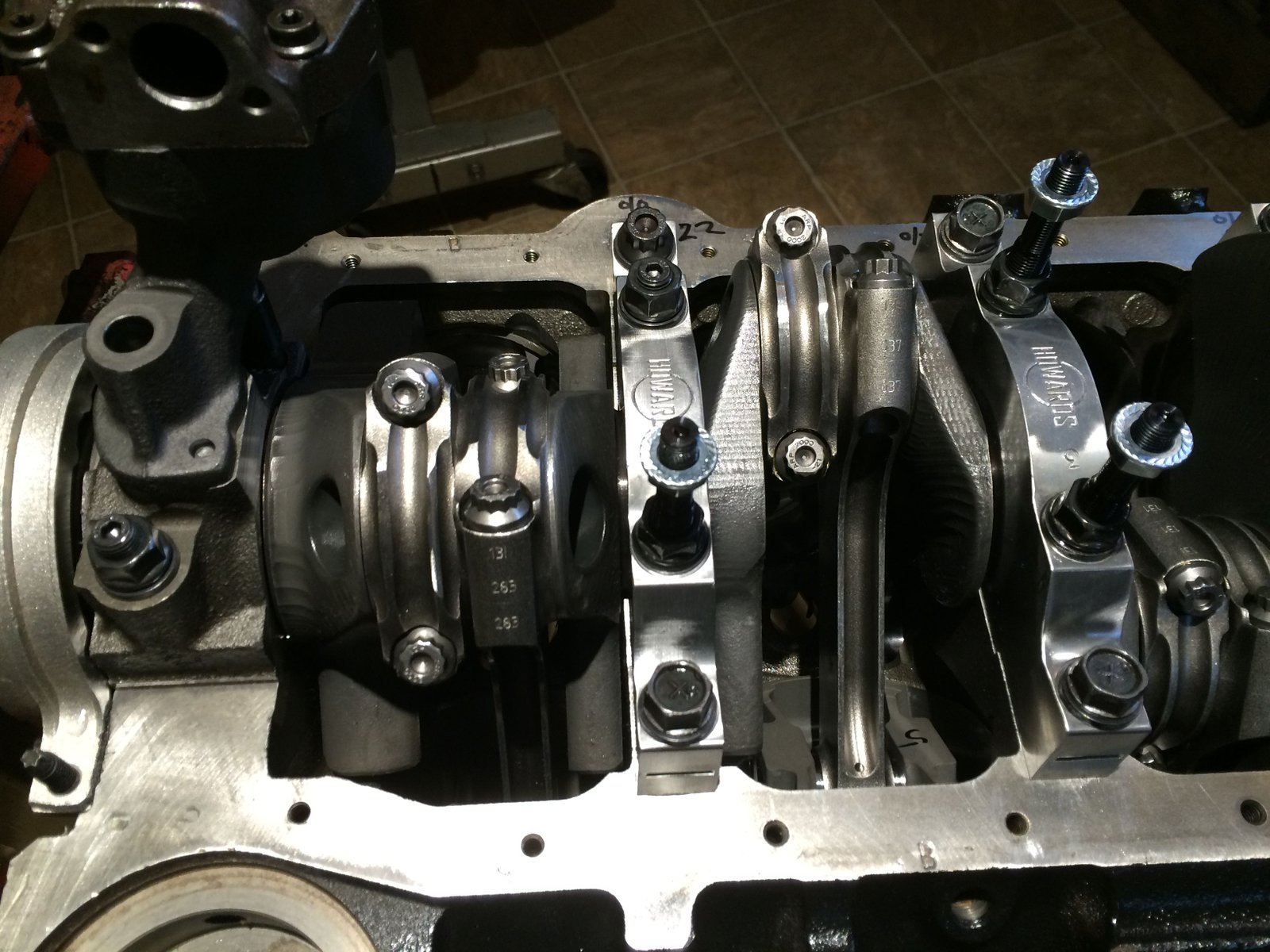

![](571t.jpg)
Milodon main studs for windage tray.
|
![](572t.jpg)

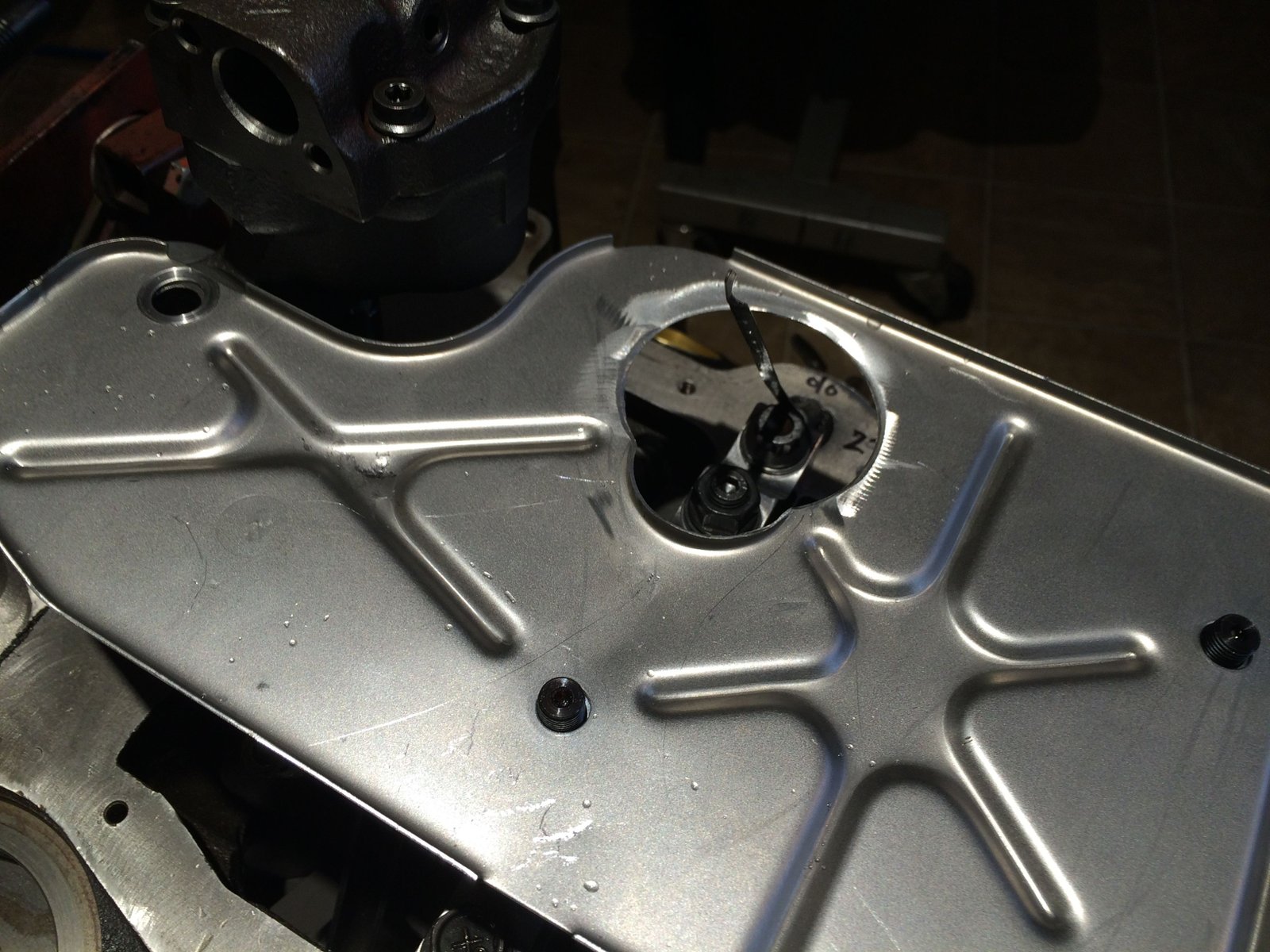

Enlarged tray hole for dip stick.
|
|
![](574t.jpg)

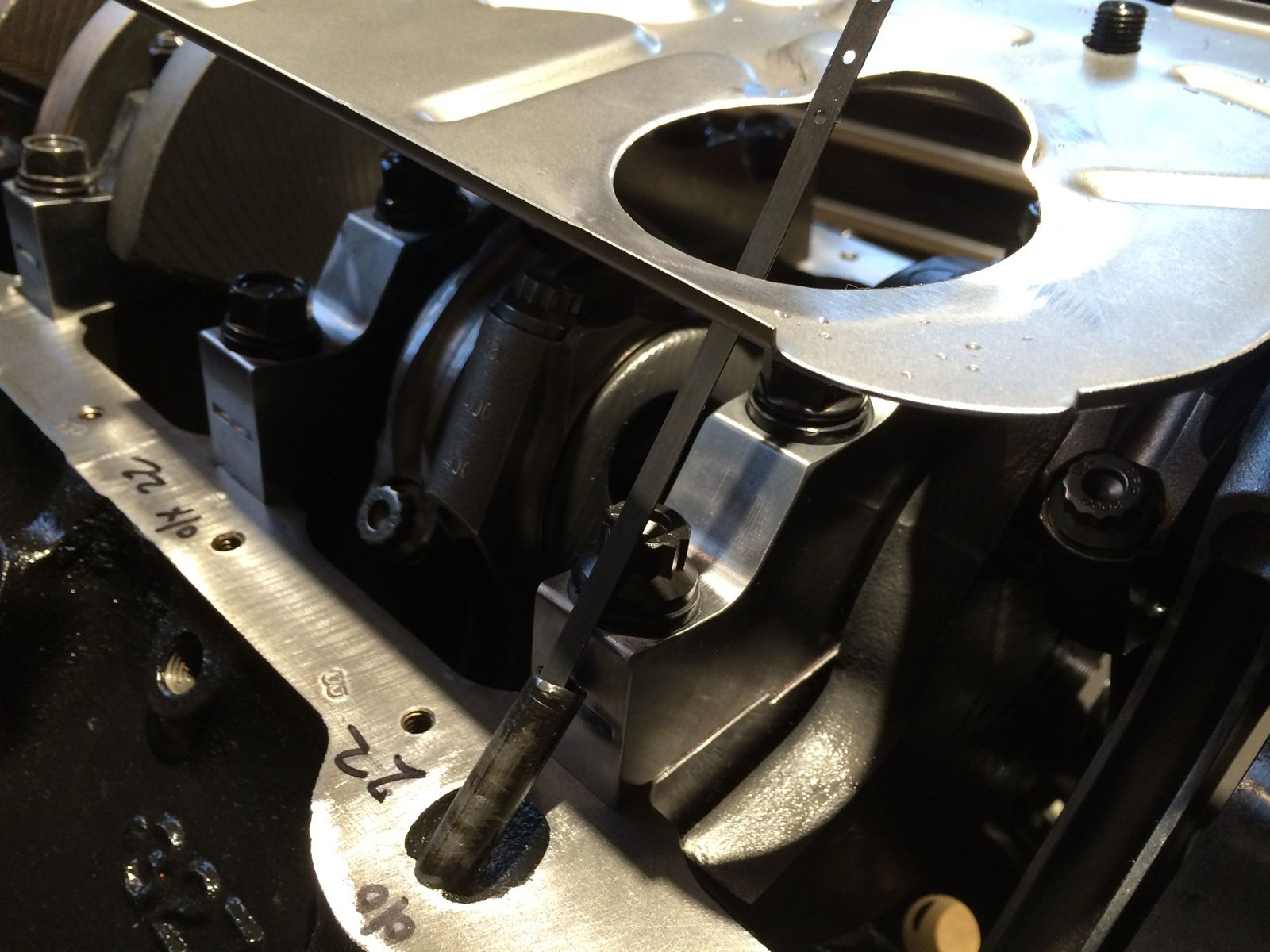

With the bigger main cap the dip stick bends up past the main cap
bolt.
|
![](575t.jpg)

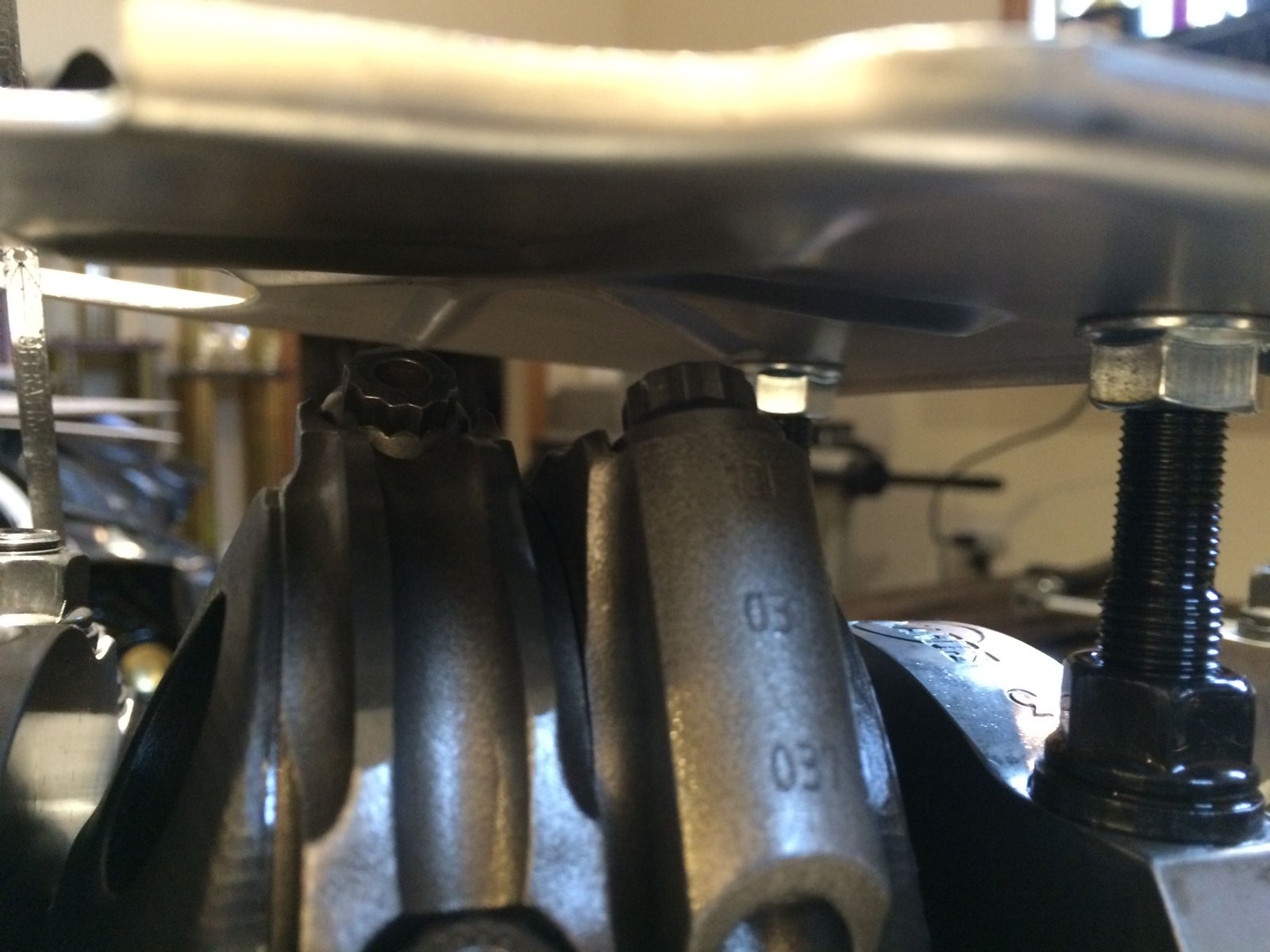

Bending of the windage tray gives ample room for the connecting
rods.
|
![](577t.jpg)

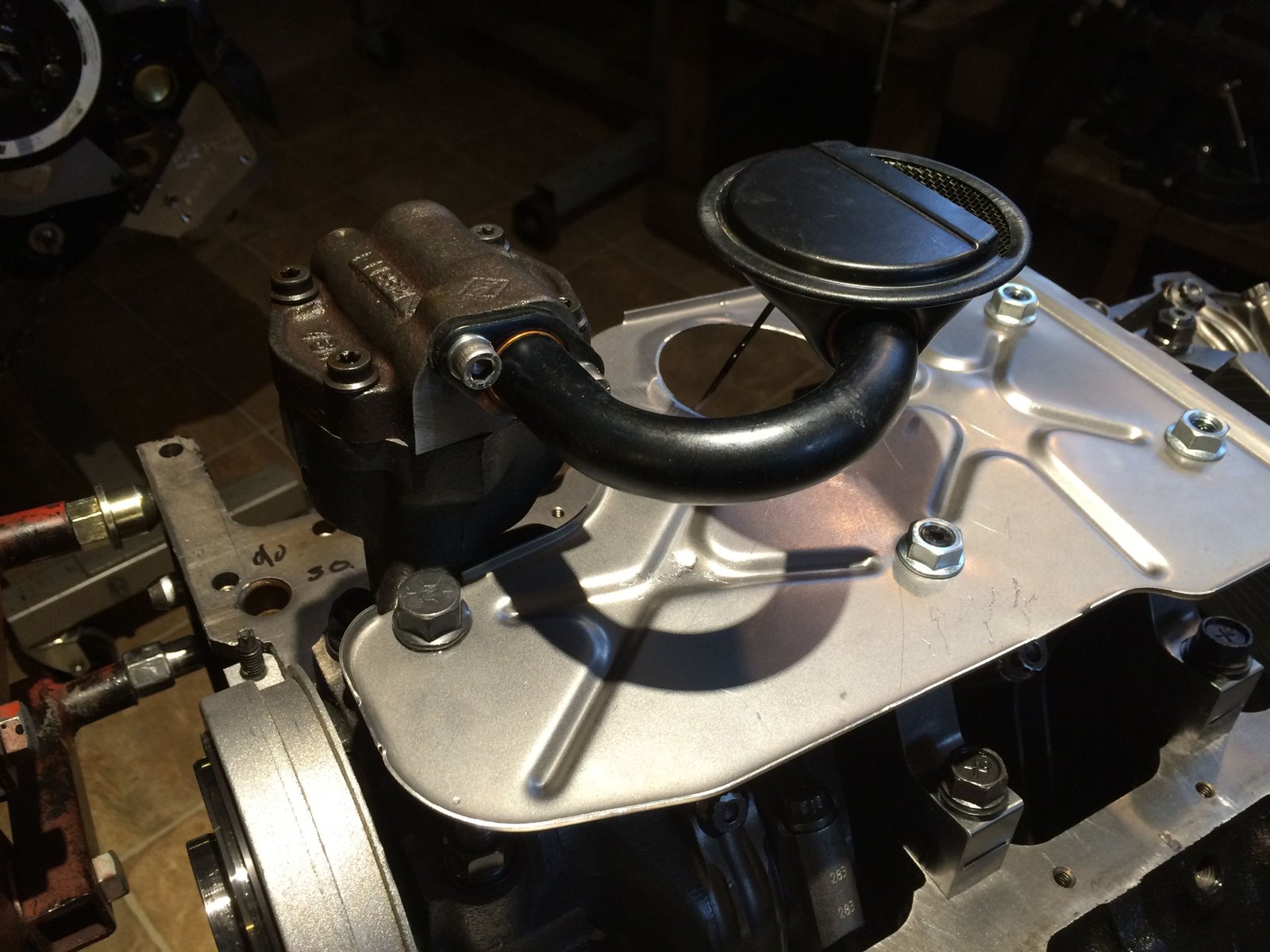

Meling 10552 oil pump and pickup
|
![](578t.jpg)

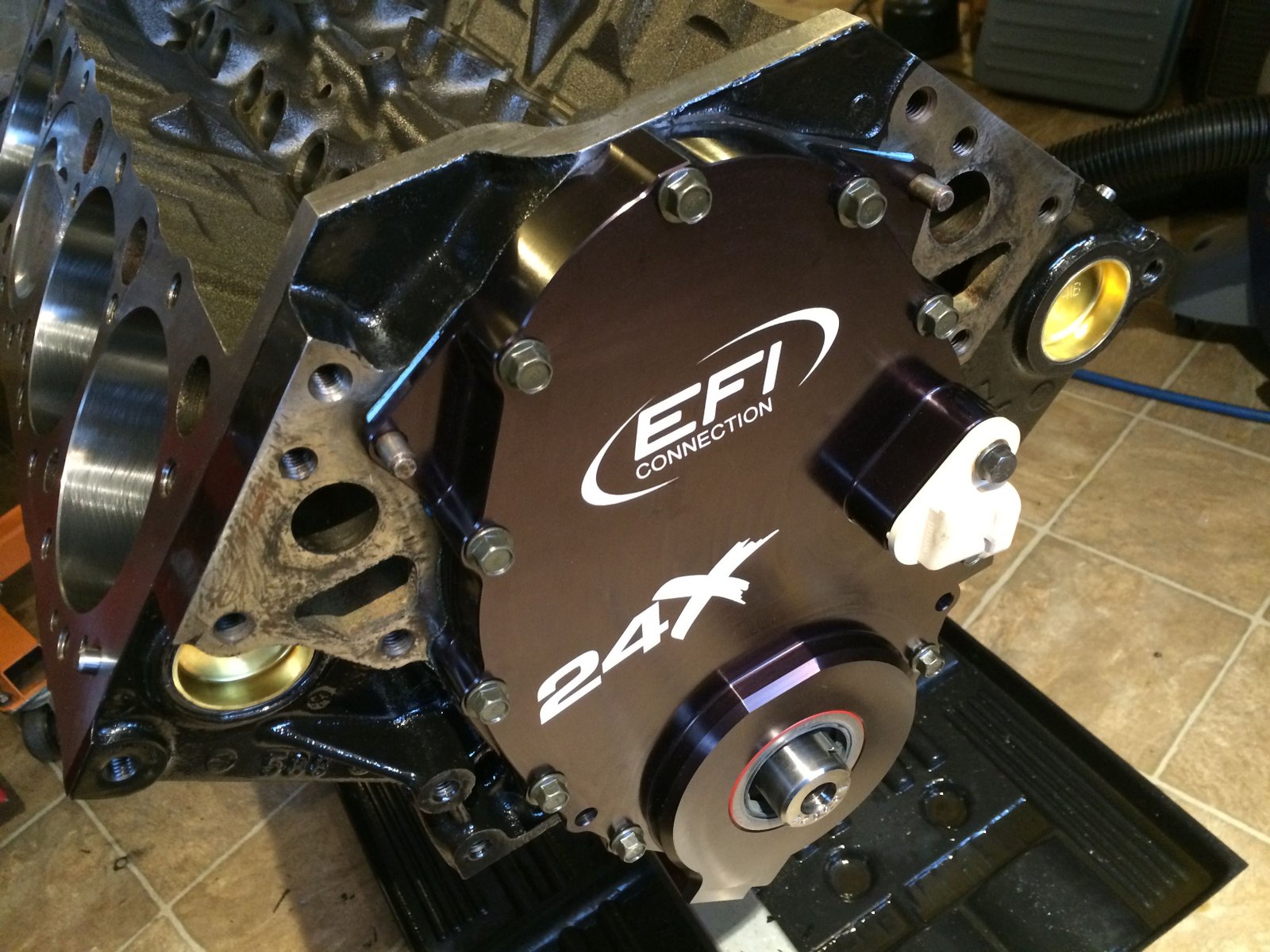

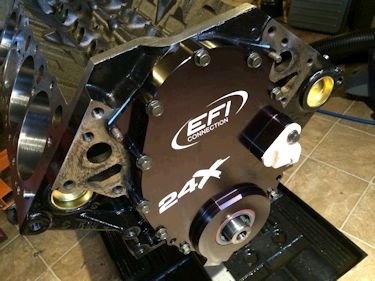

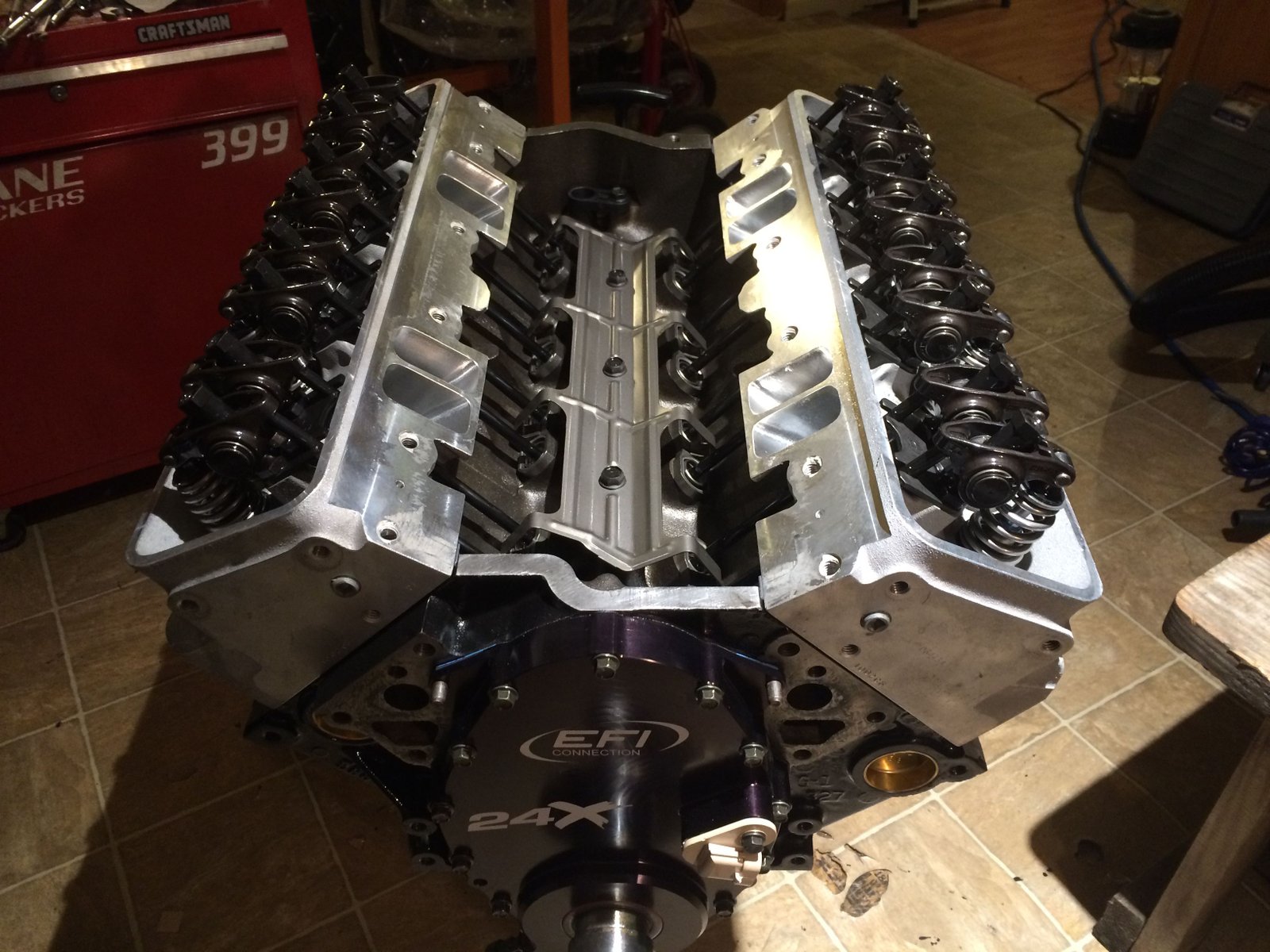

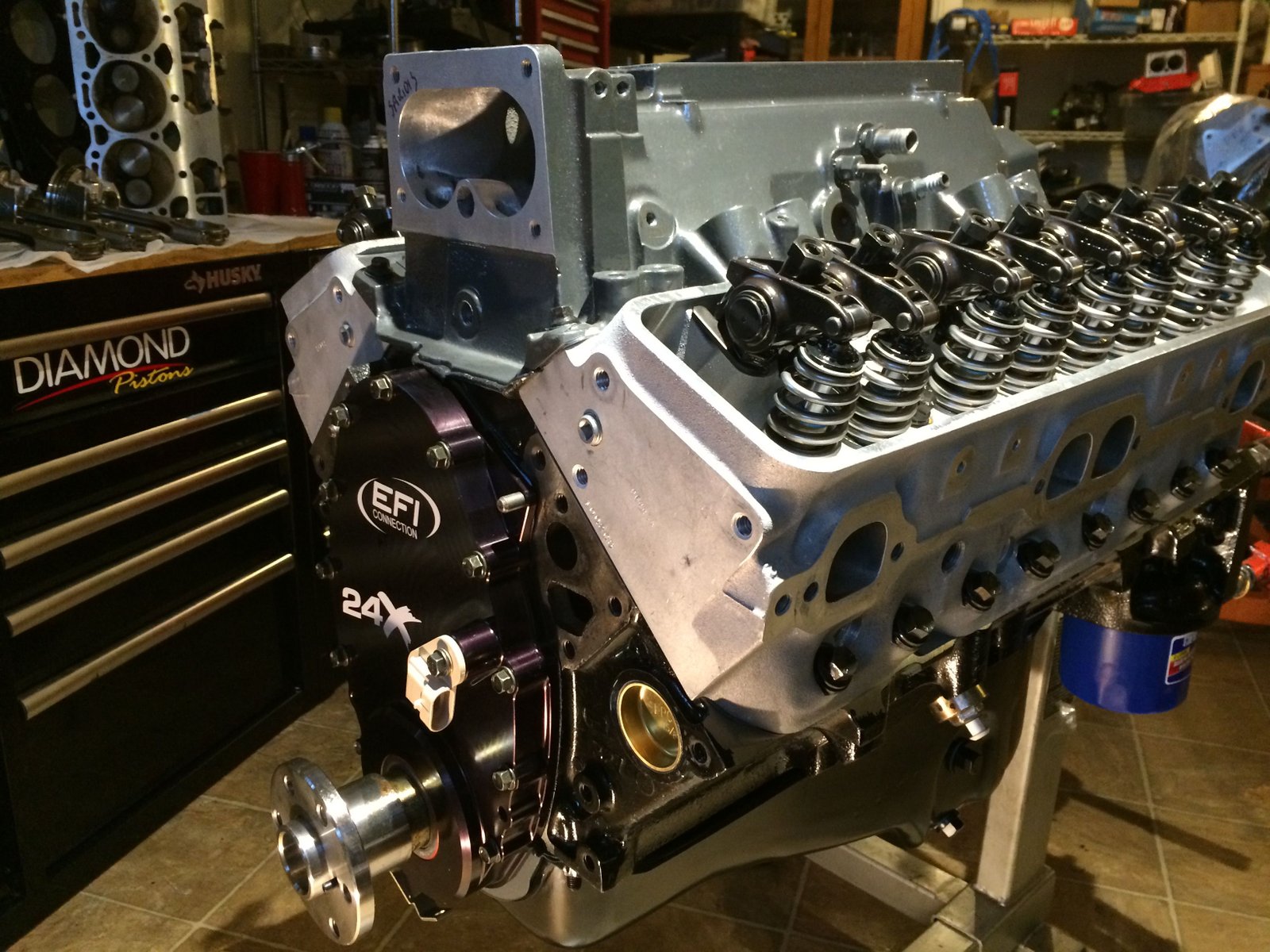

Ai camshaft and EFI Connection 24x
|
![](583t.jpg)

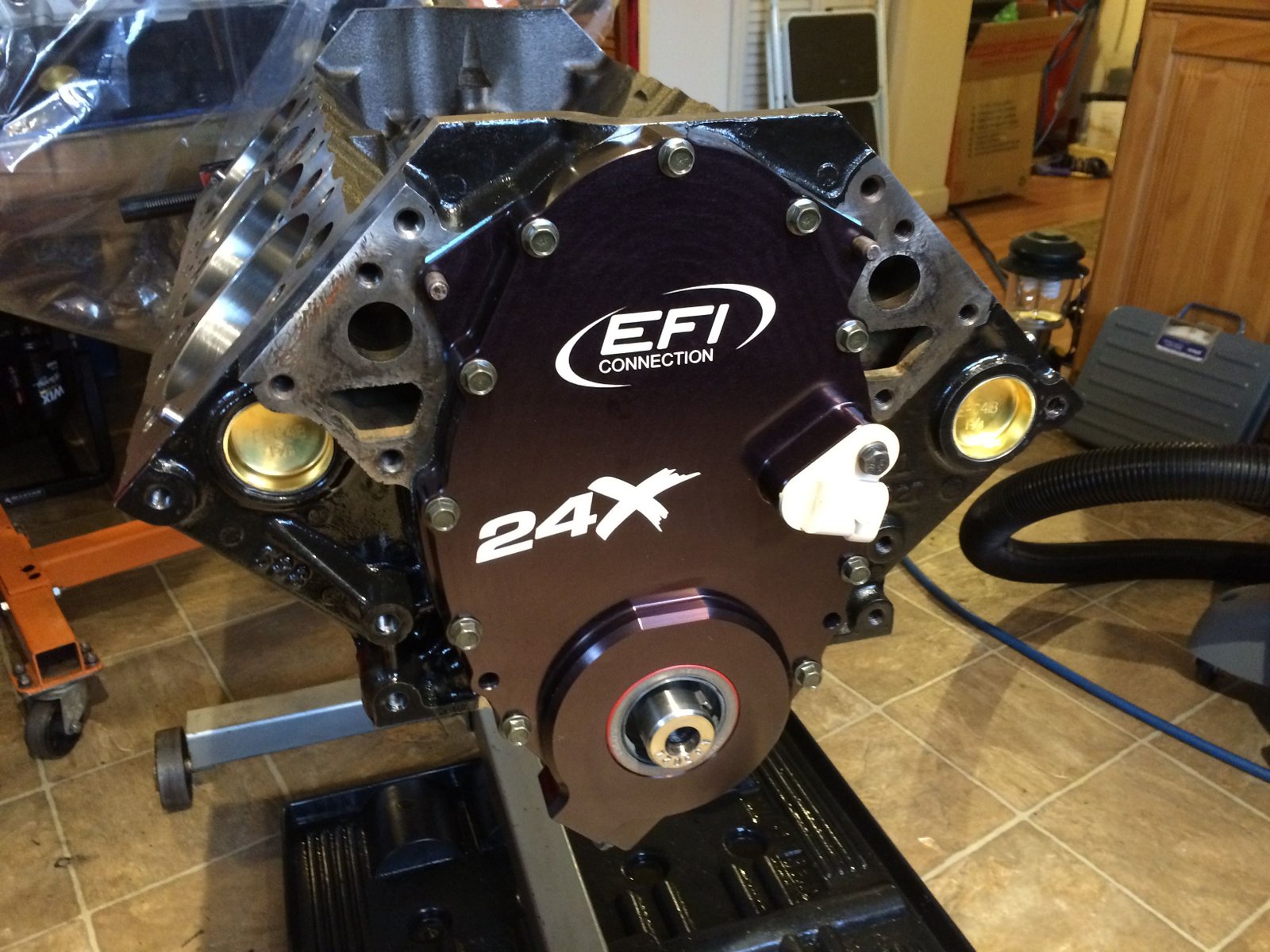

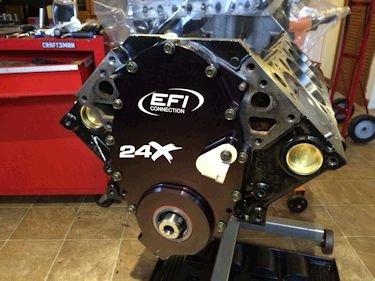

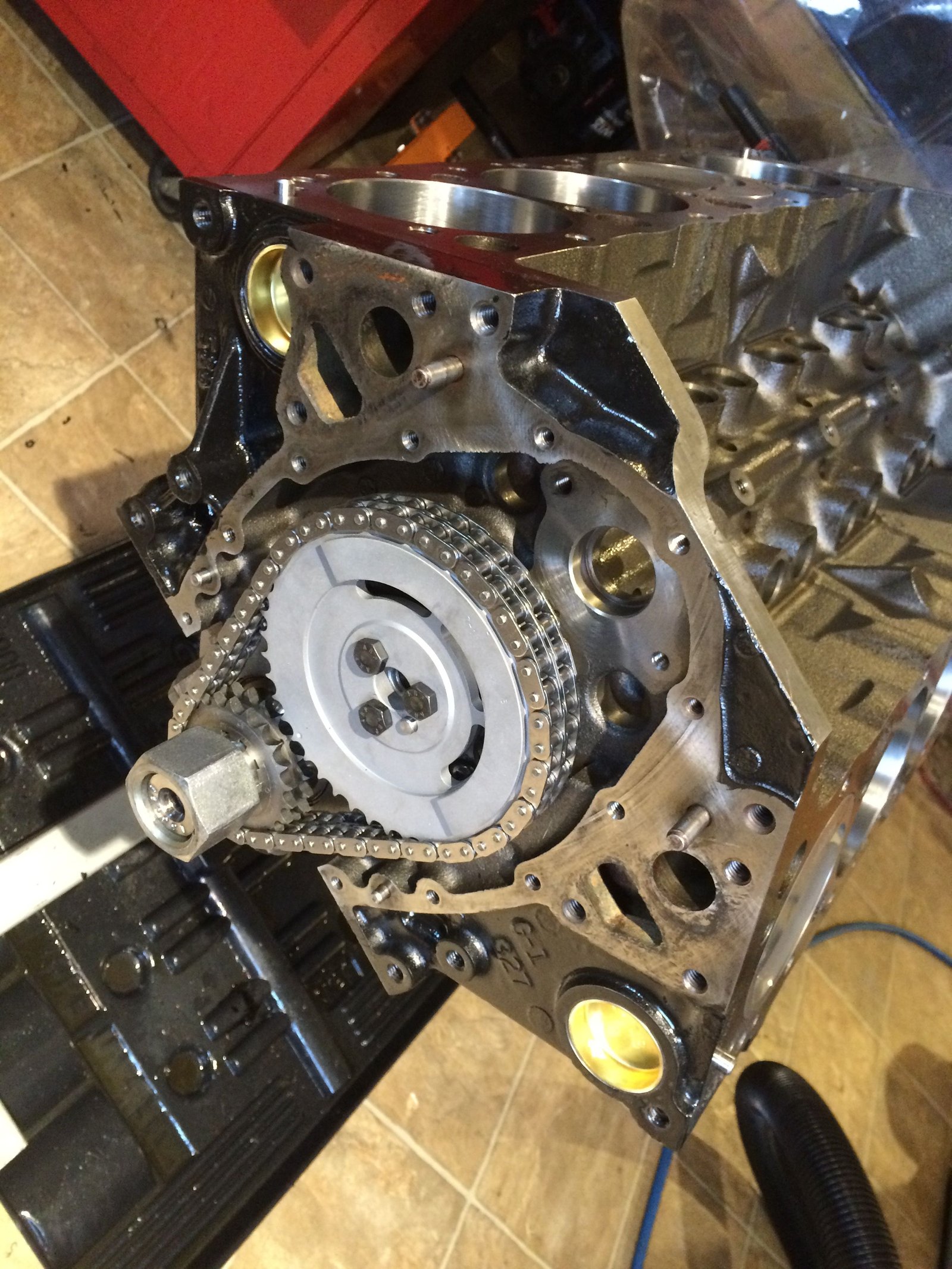

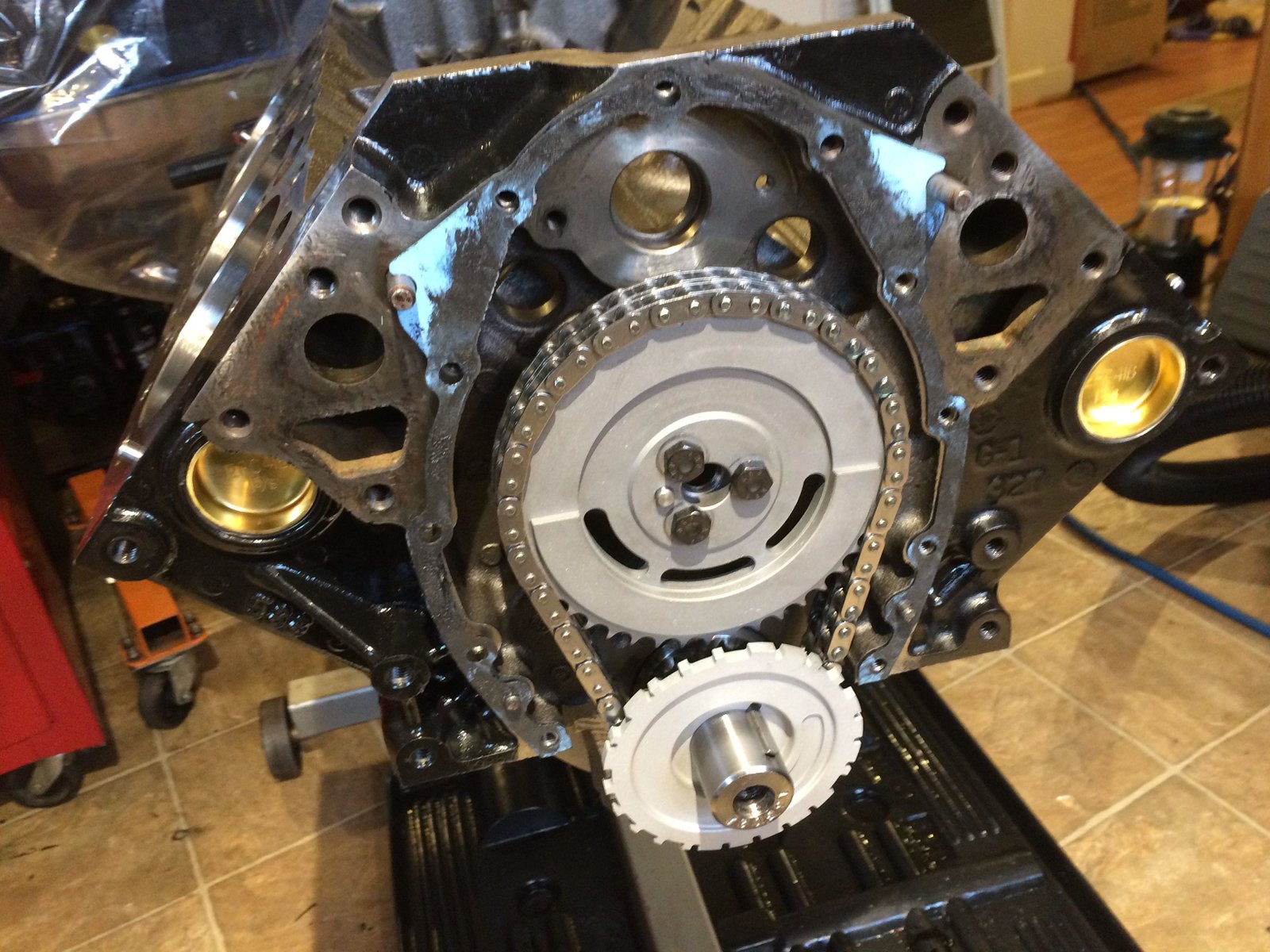

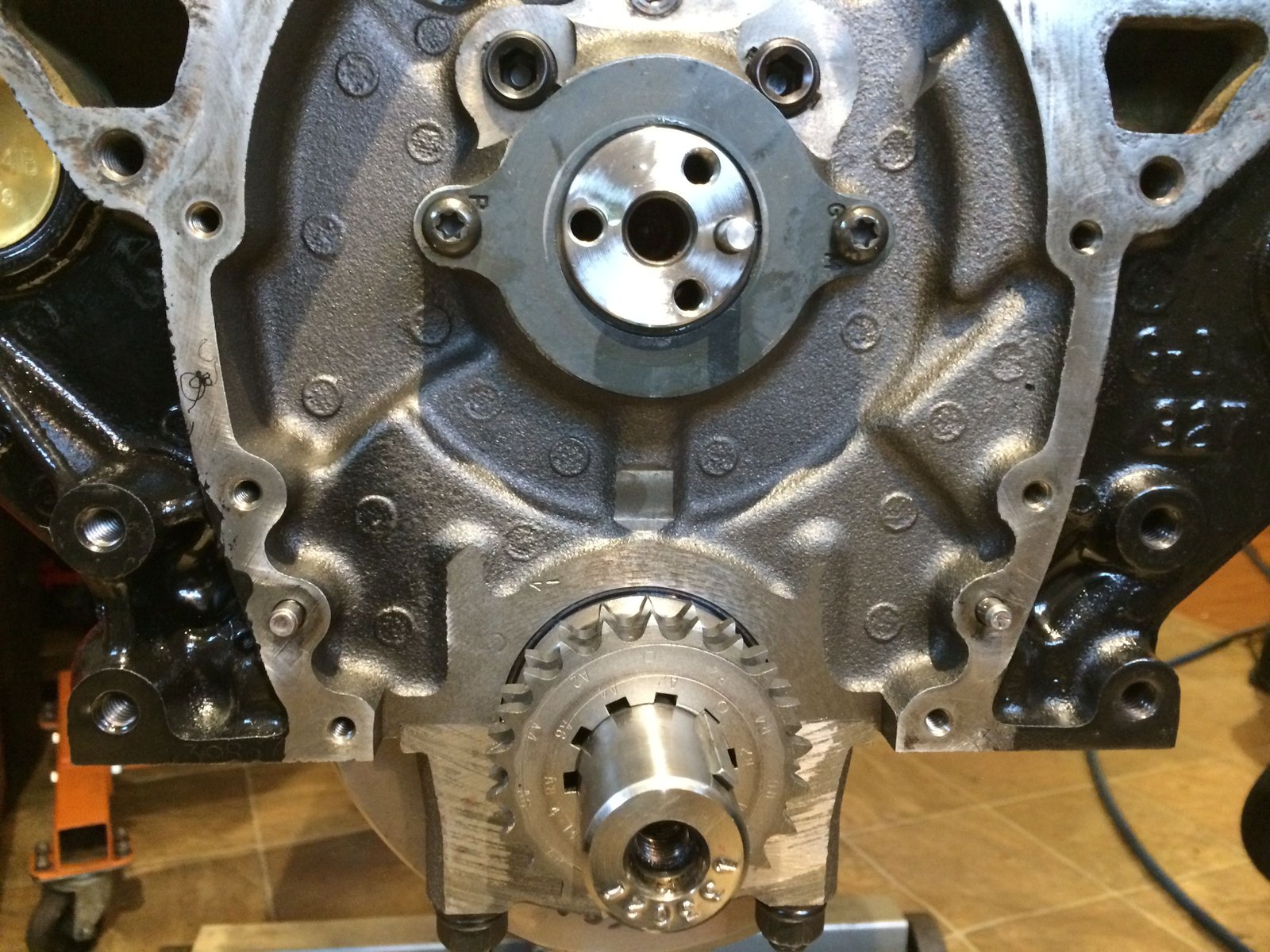

EFI Connection/Cloyes crank srpocket.
|
![](584t.jpg)

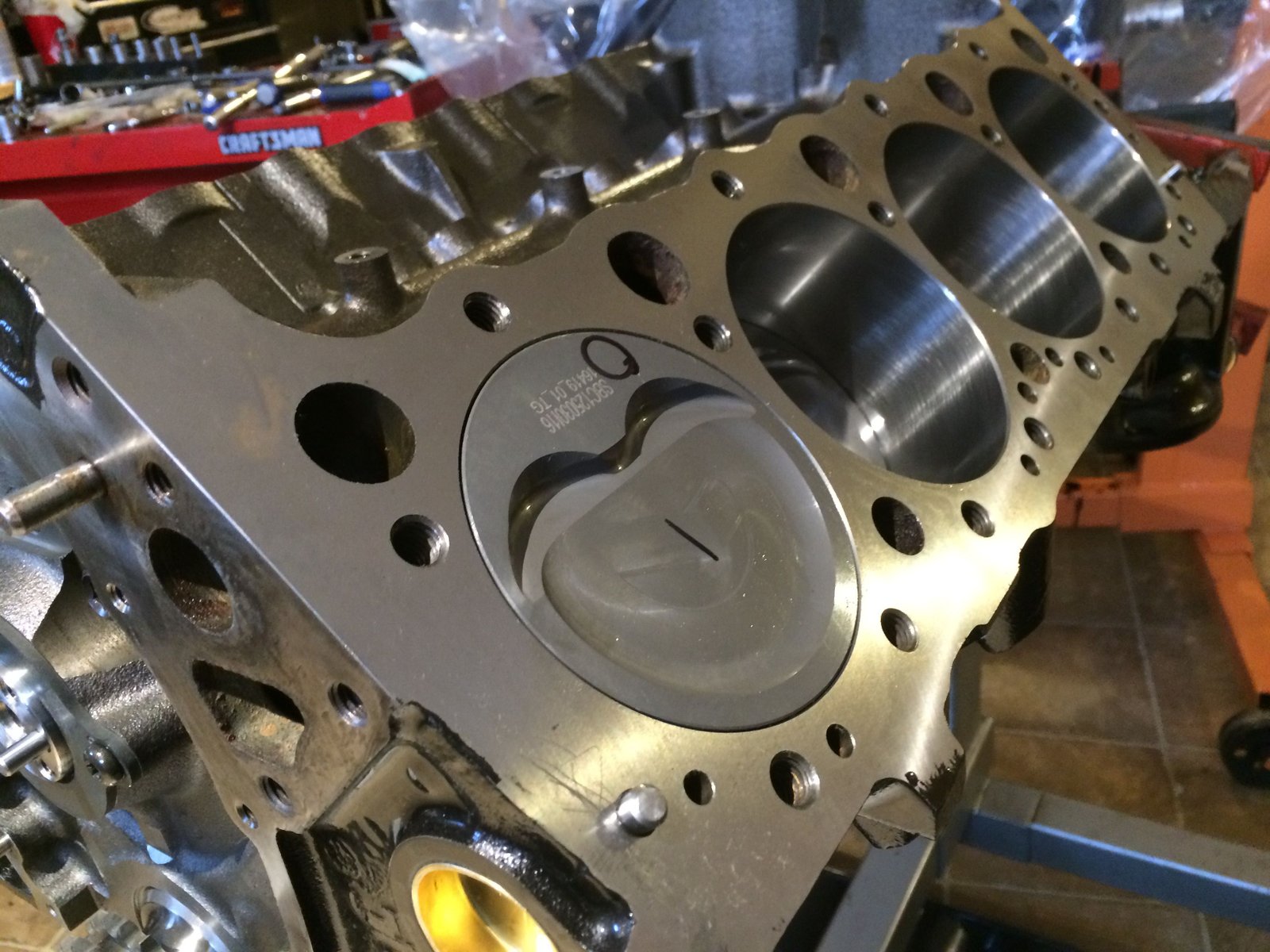

Piston is at zero deck height.
|
|
![](586t.jpg)

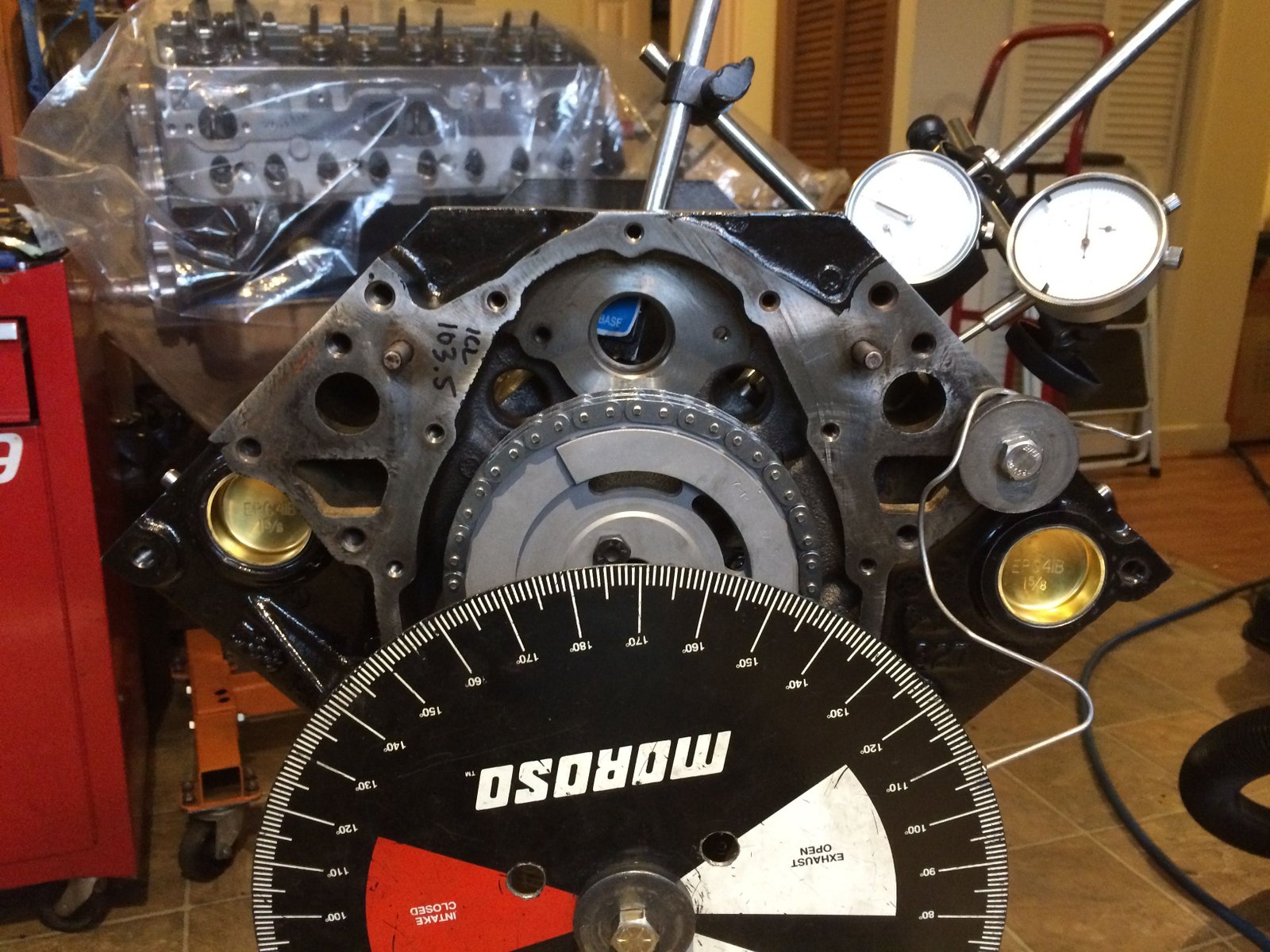

Camshaft degreed right on. 103.5 degrees intake centerline.
|
|
|
|
|
![](595t.jpg)

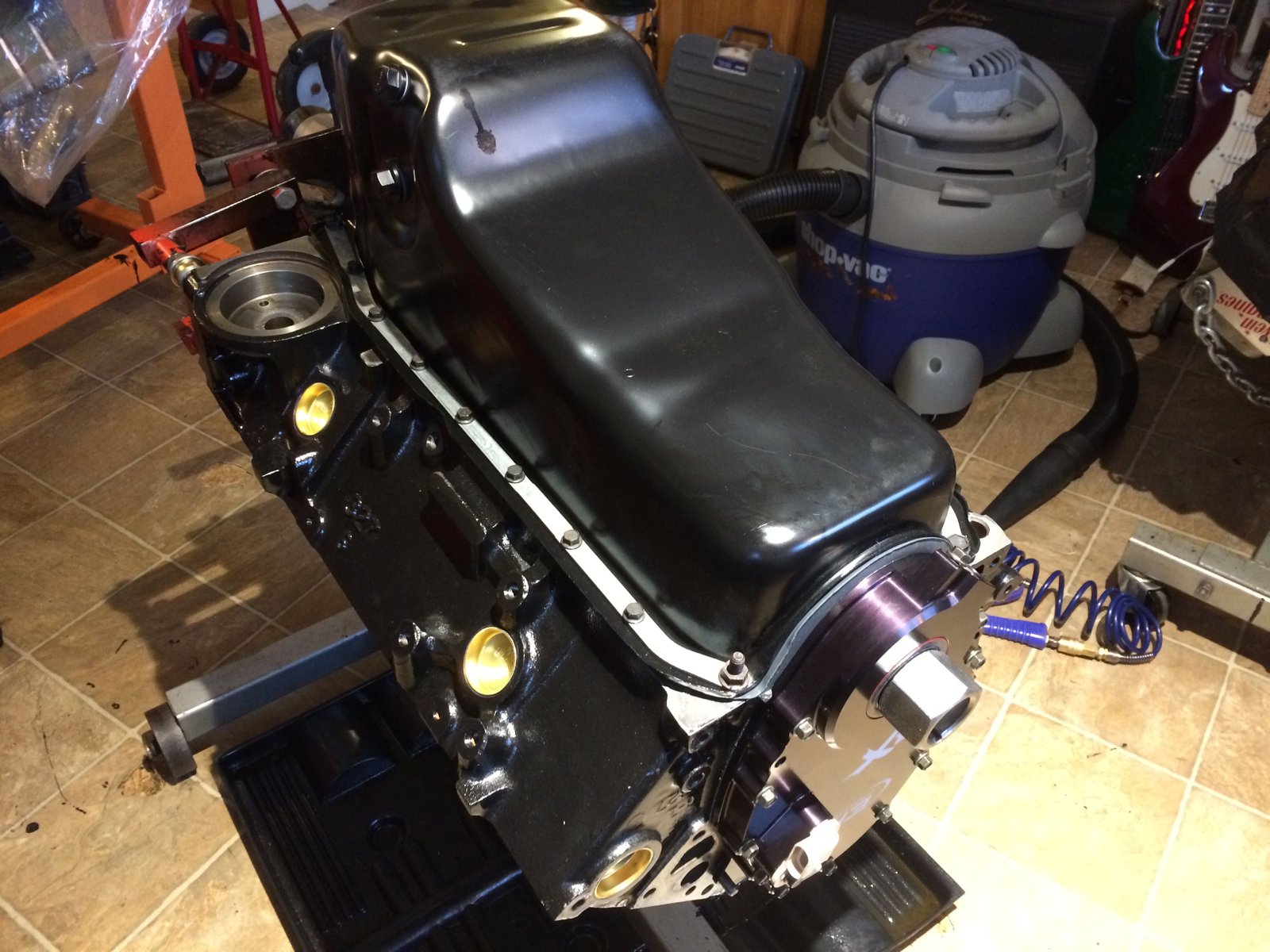

Dorman stock oil pan.
|
![](598t.jpg)
Crower hydraulic lifters.
|
|
![](602t.jpg)

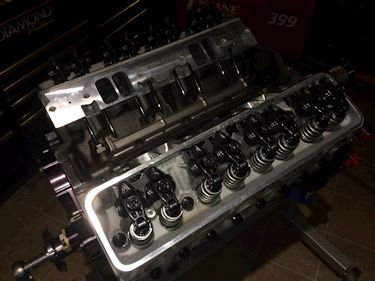

GM LT1 heads ported by Ai.
|
|
![](604t.jpg)

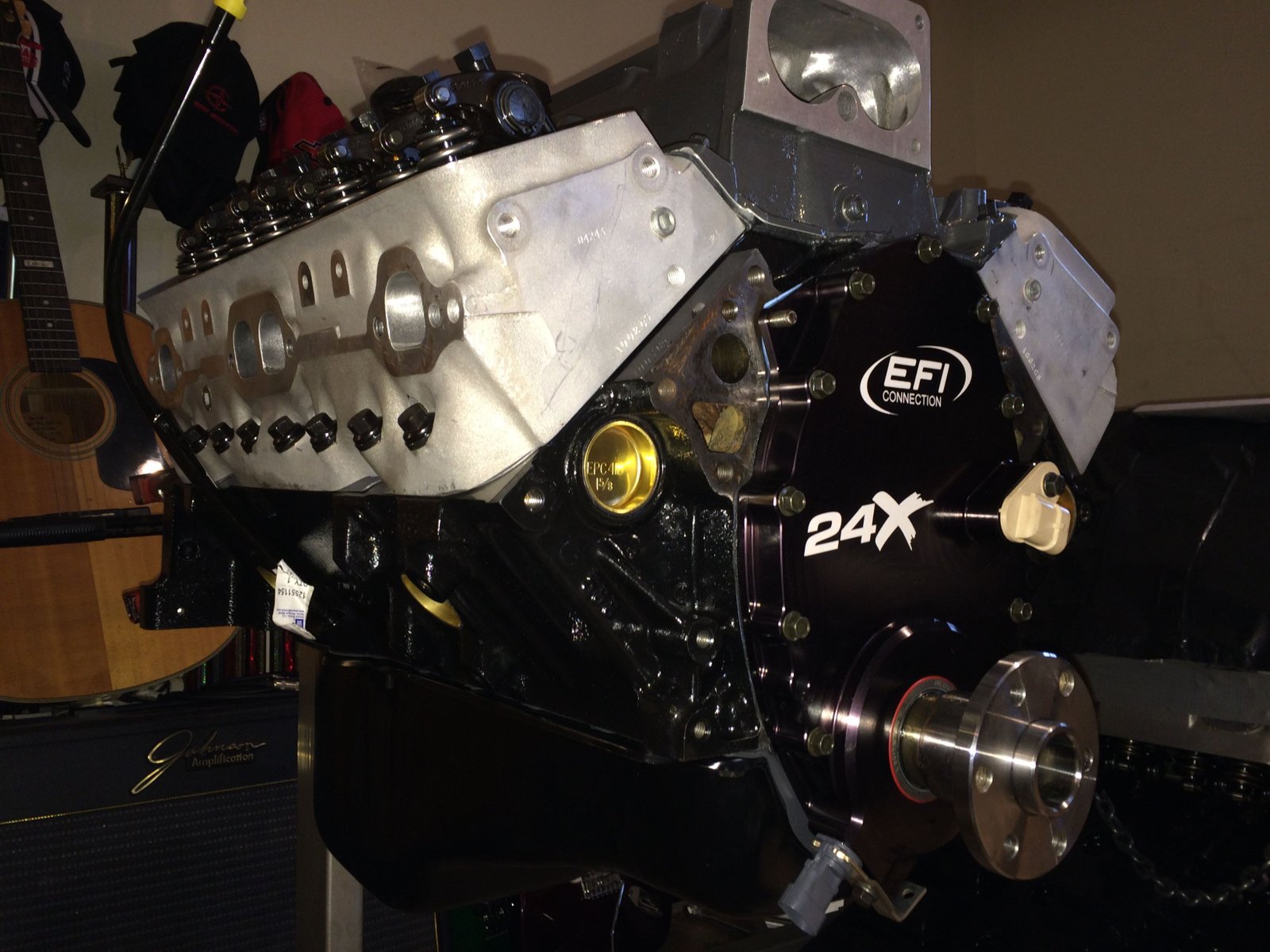

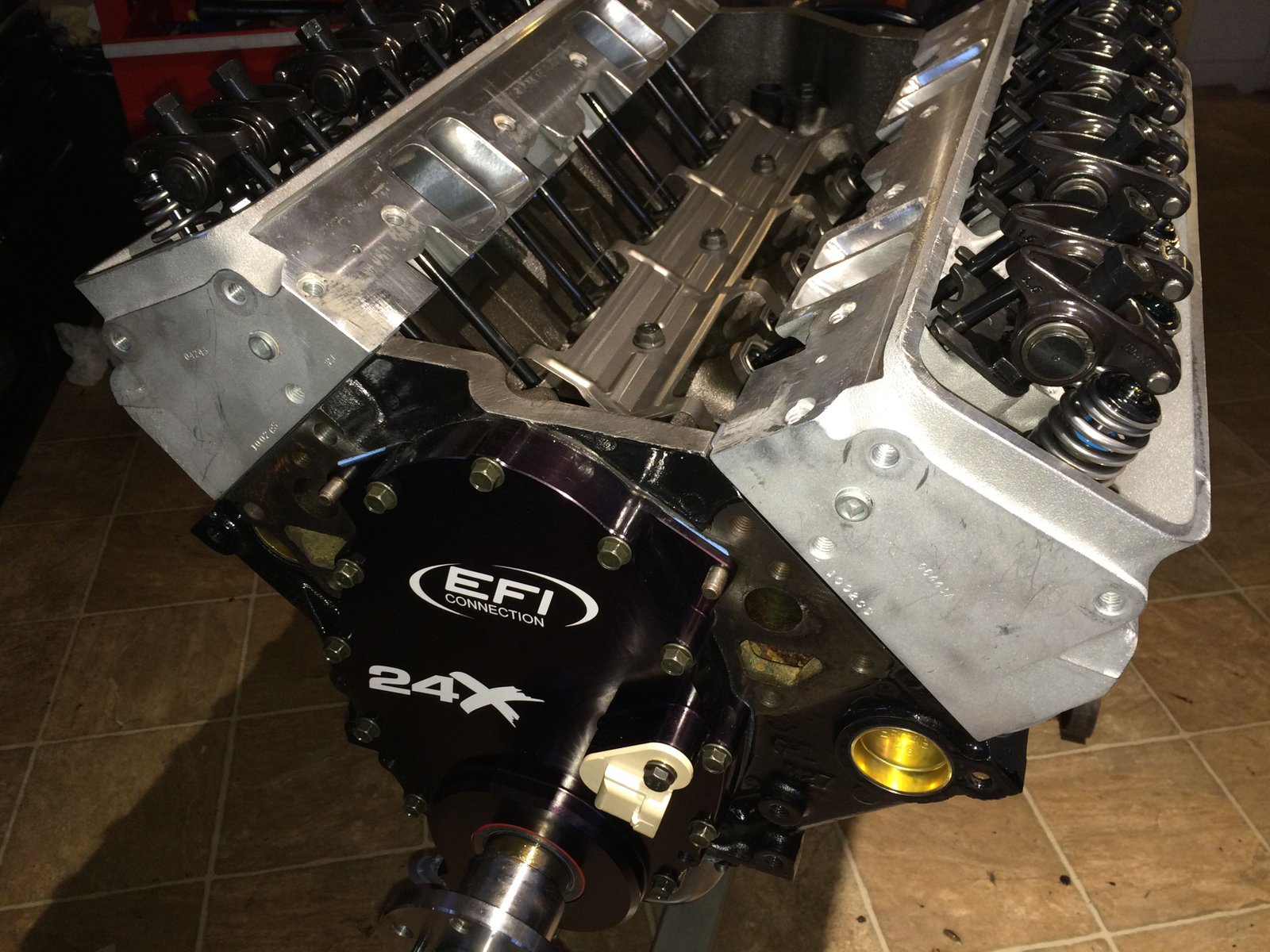

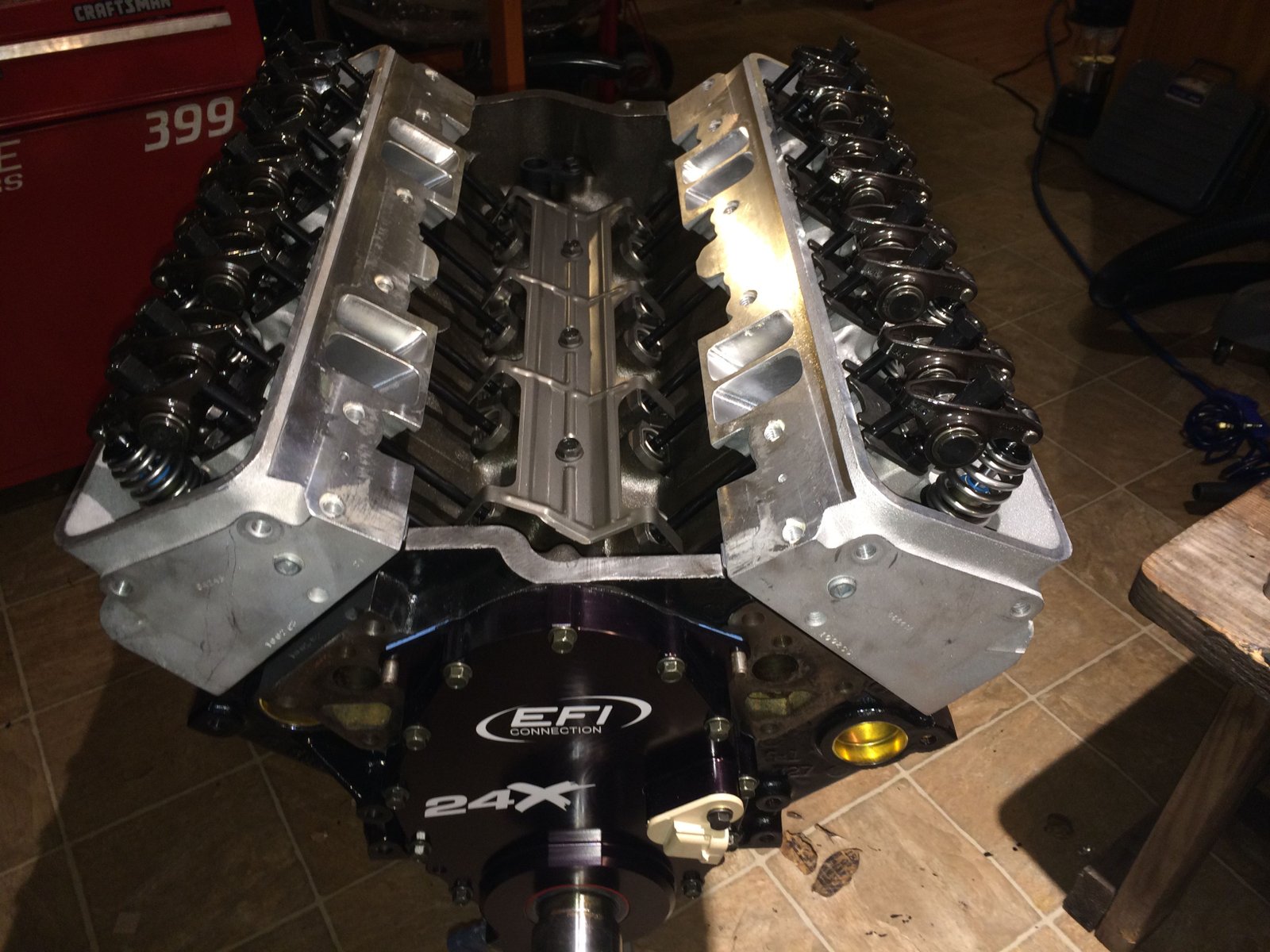

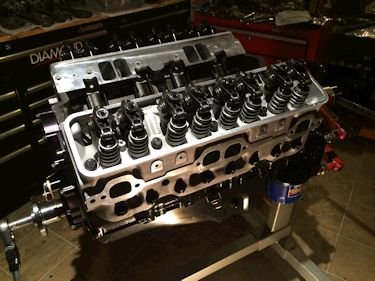

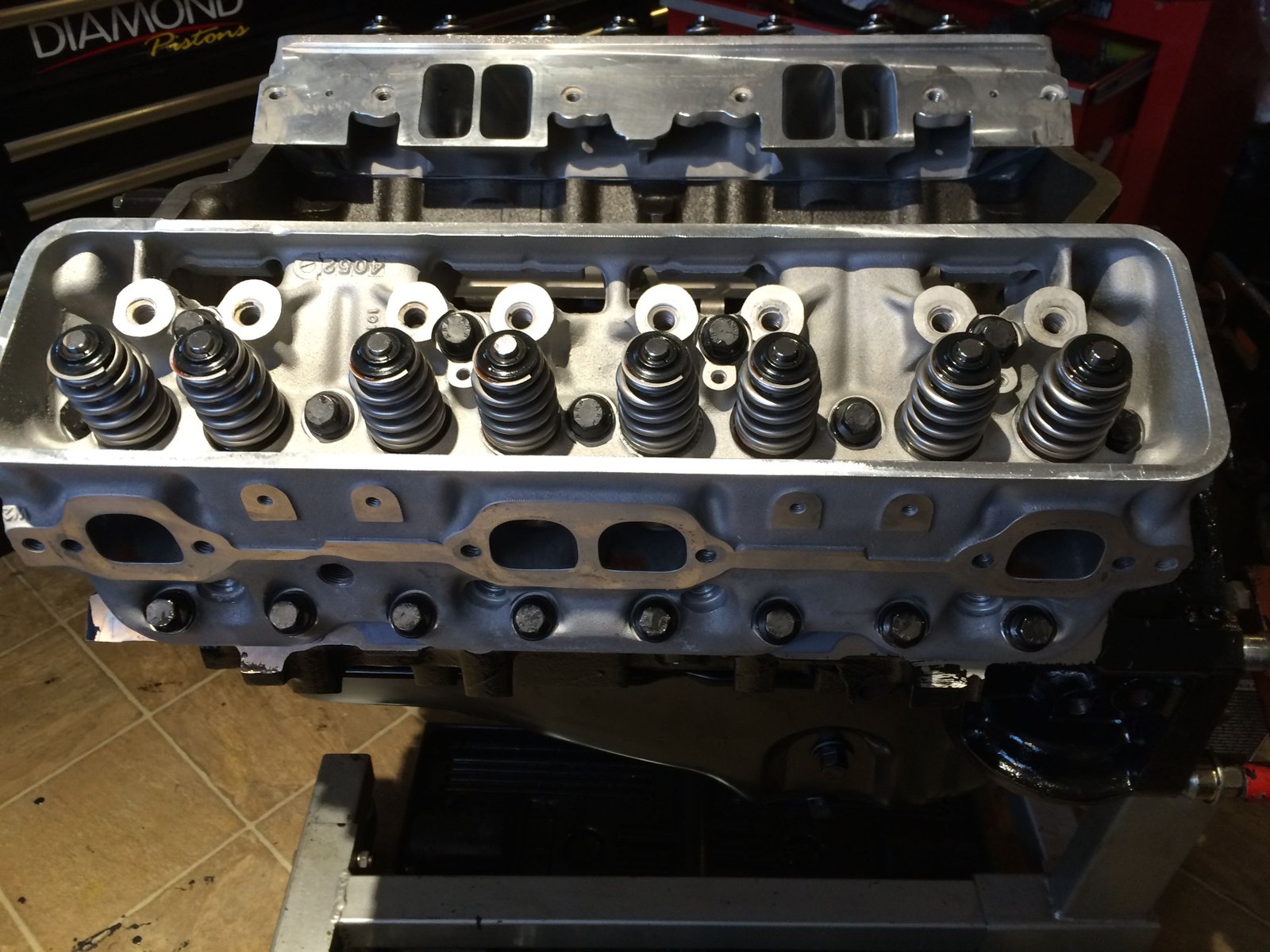

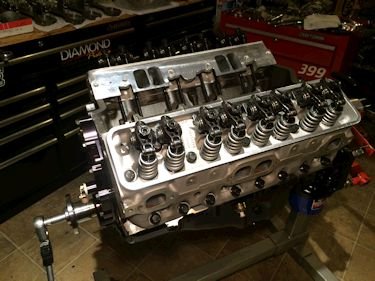

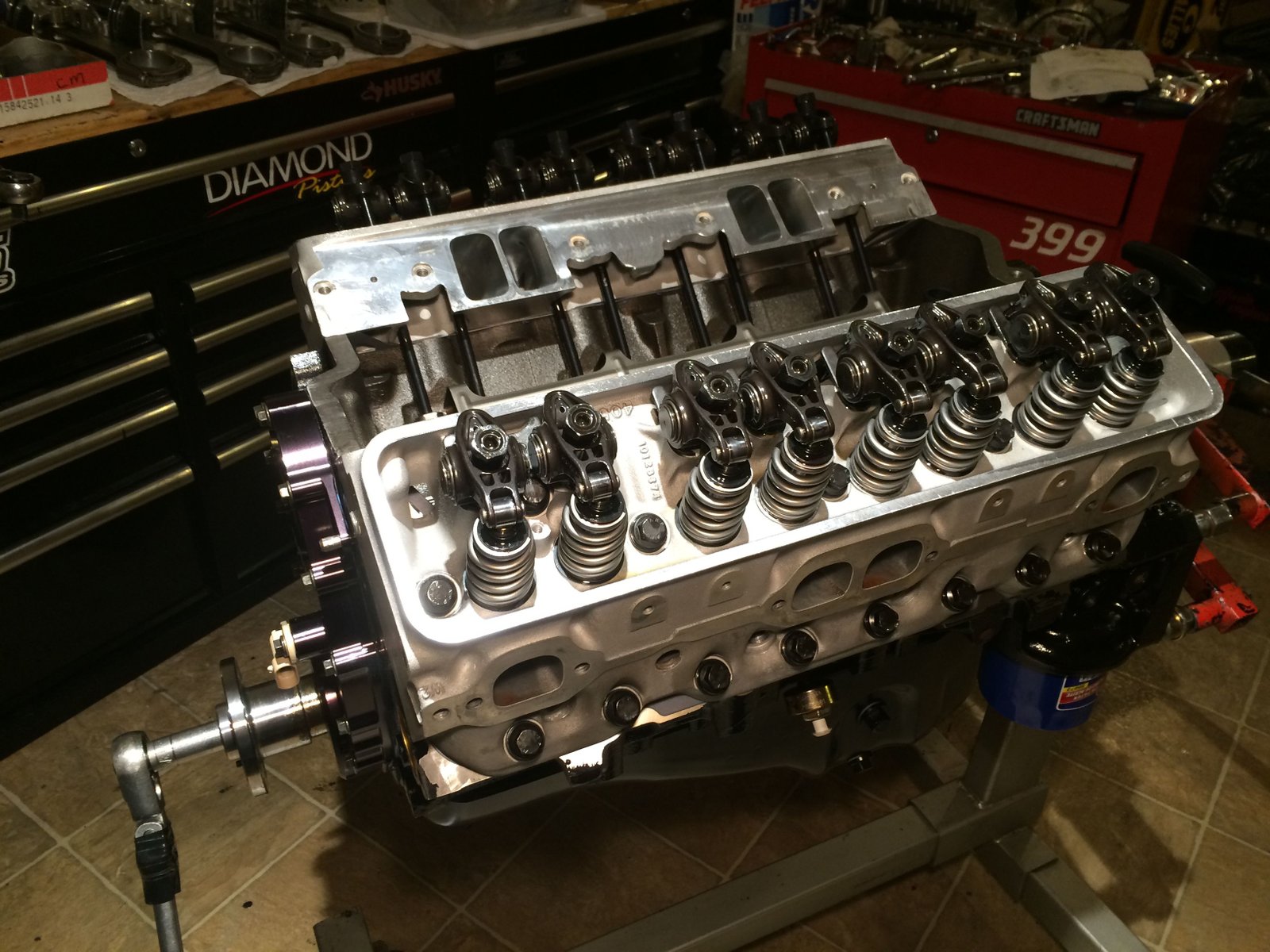

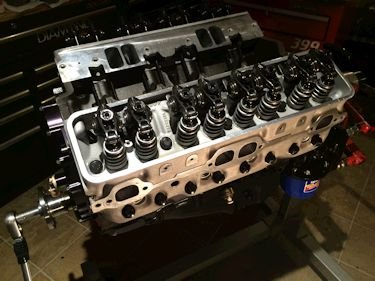

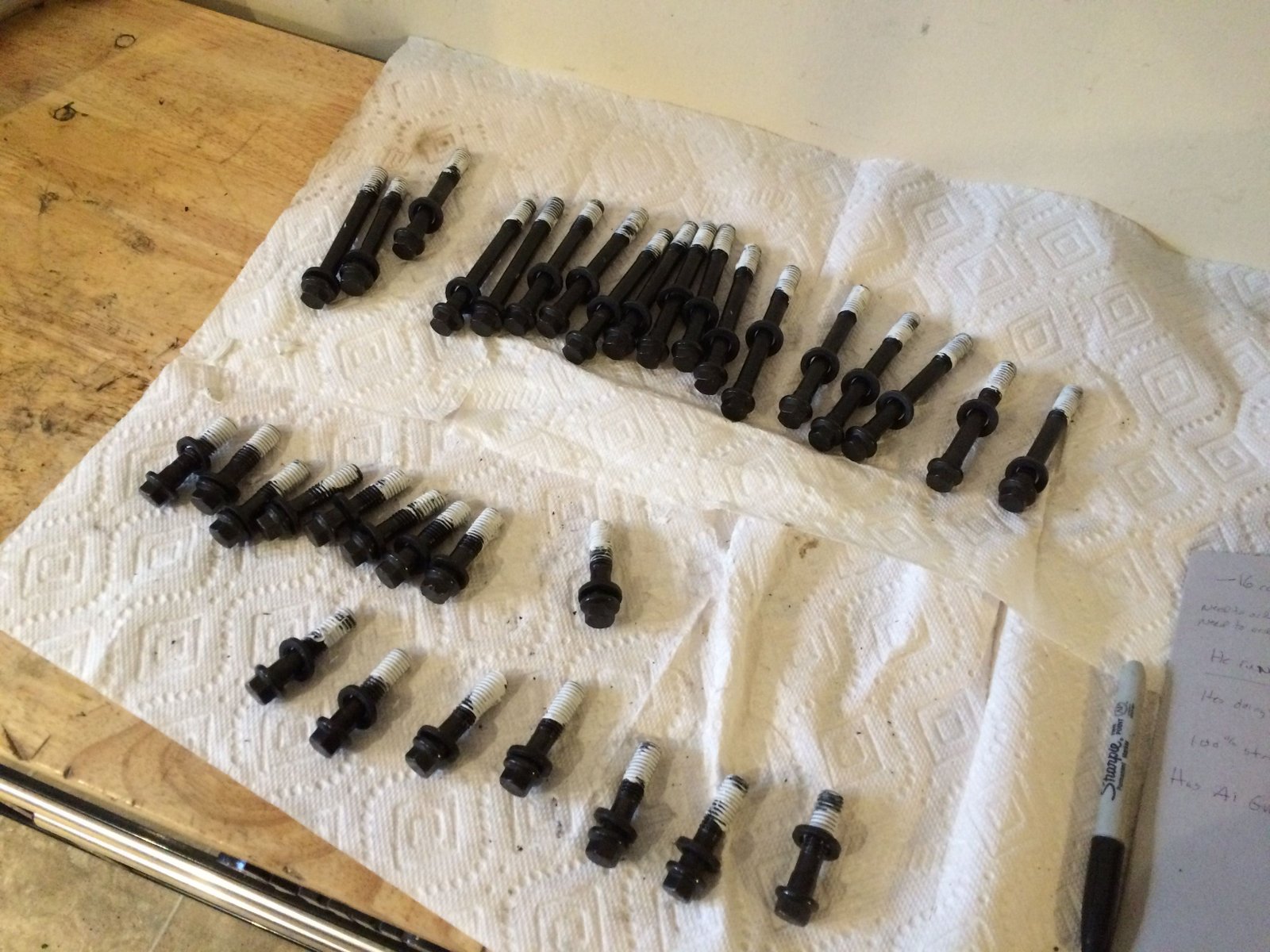

Heads on and torqued.
|
|

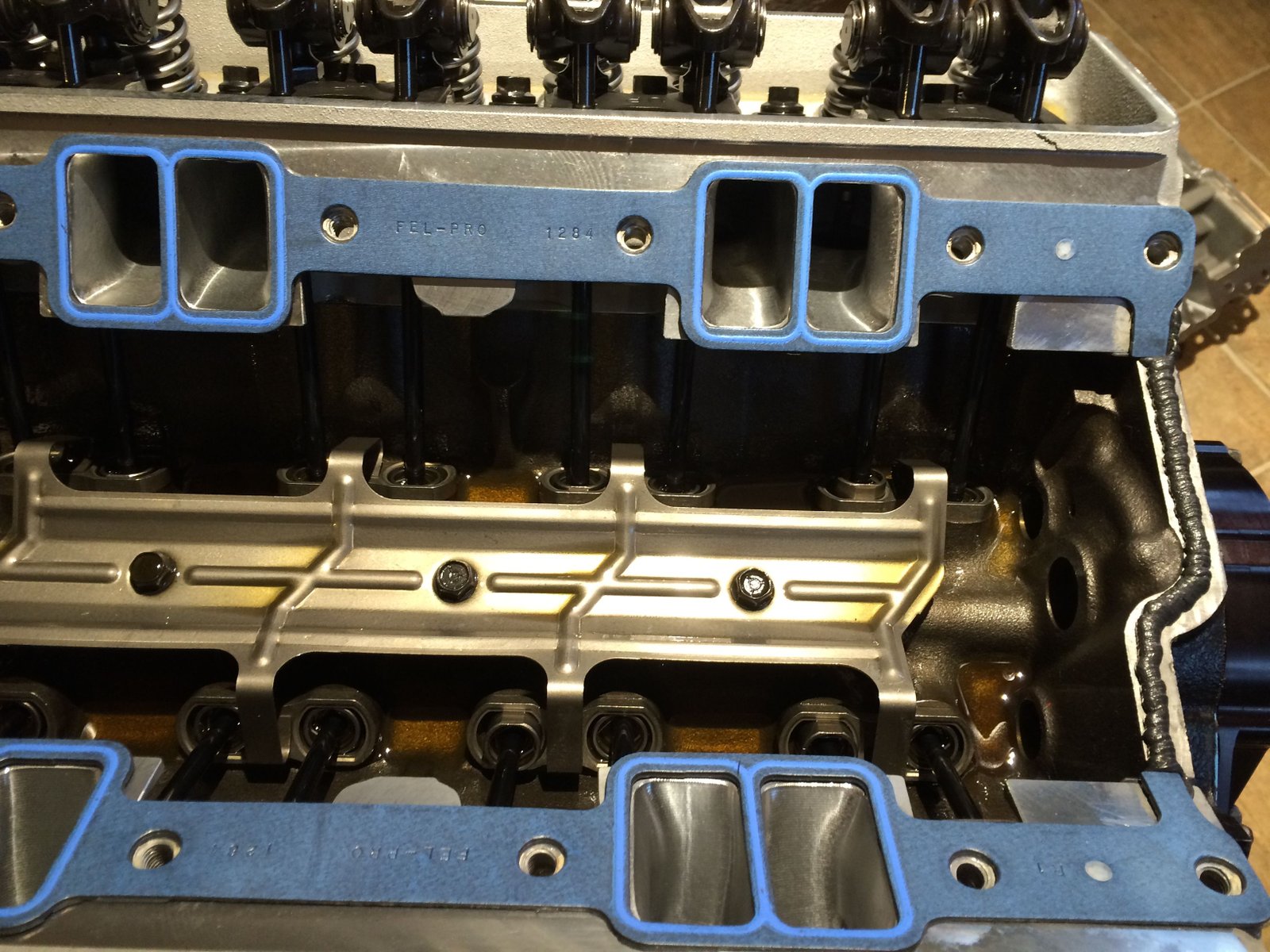

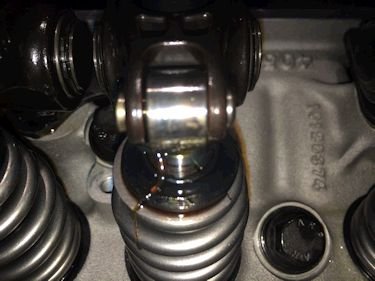

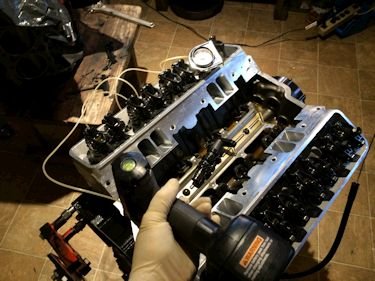

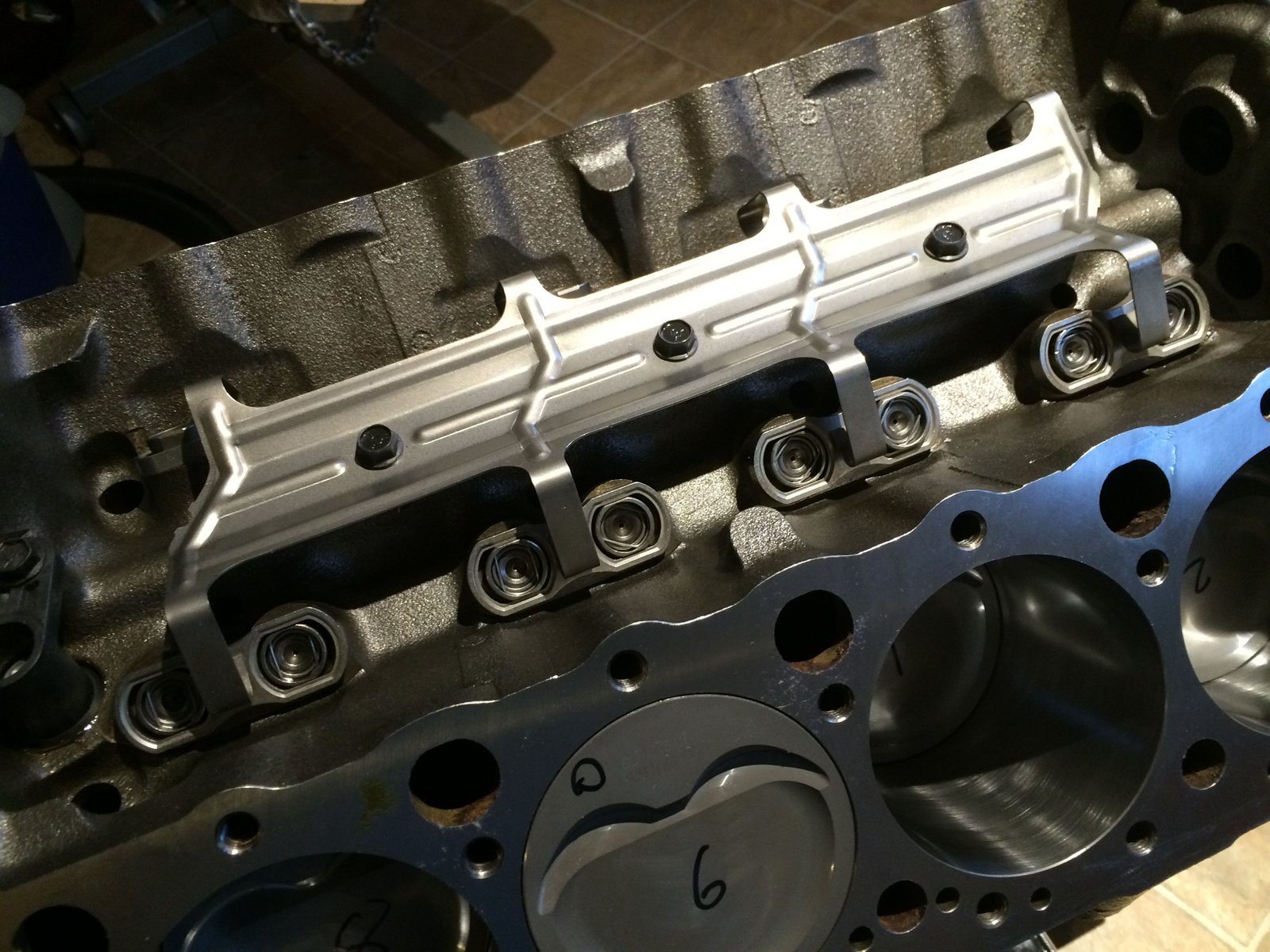

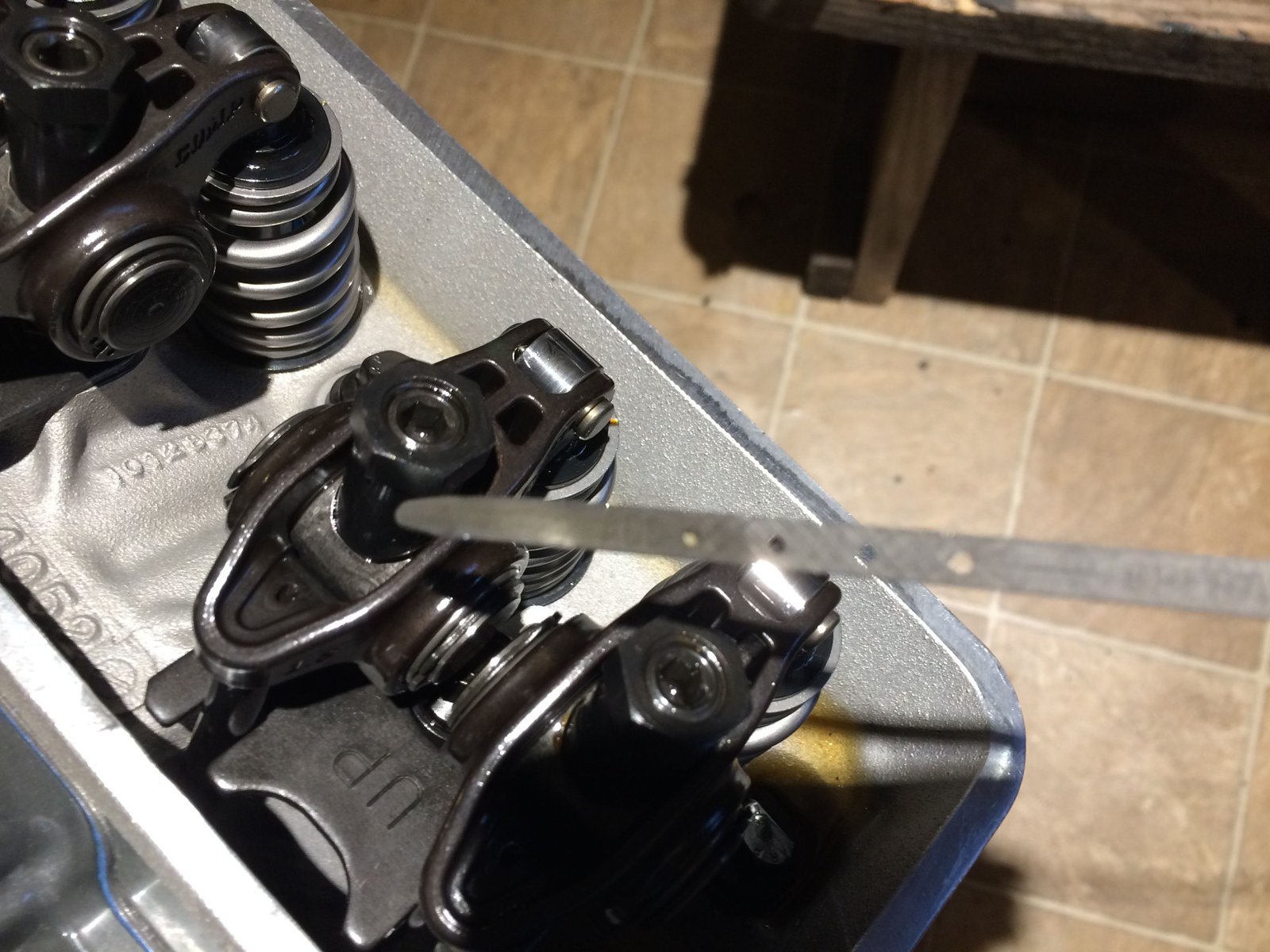

A couple rocker pairs are not centered. This can be adjusted
by moving the guide plate one way or the other. There is a
slight bit of play in the guide plate.
|
|
|
|
|
|
|

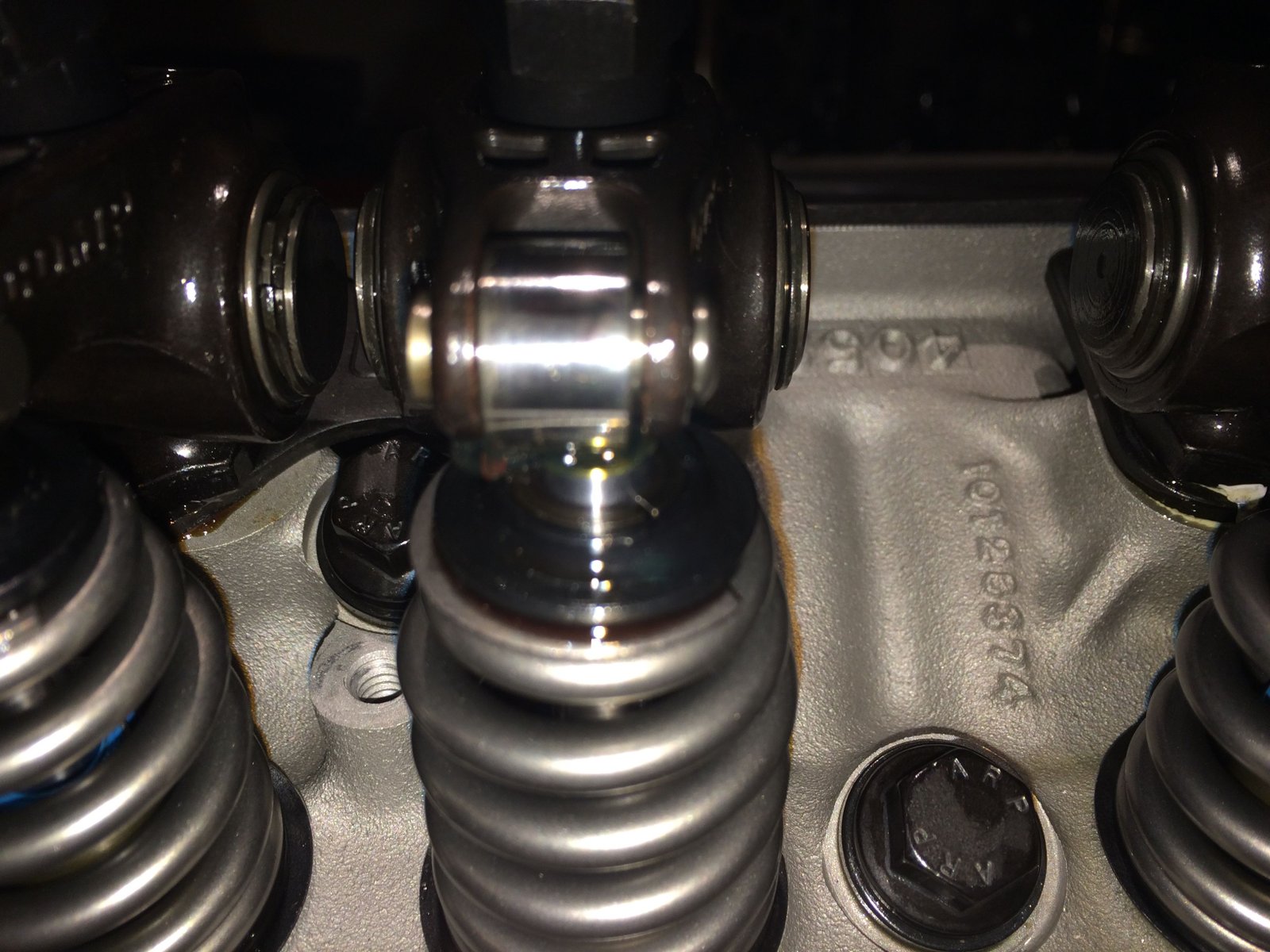

Here is the rocker with the guide plate re-torqued and the tips
are mostly centered.
|
|

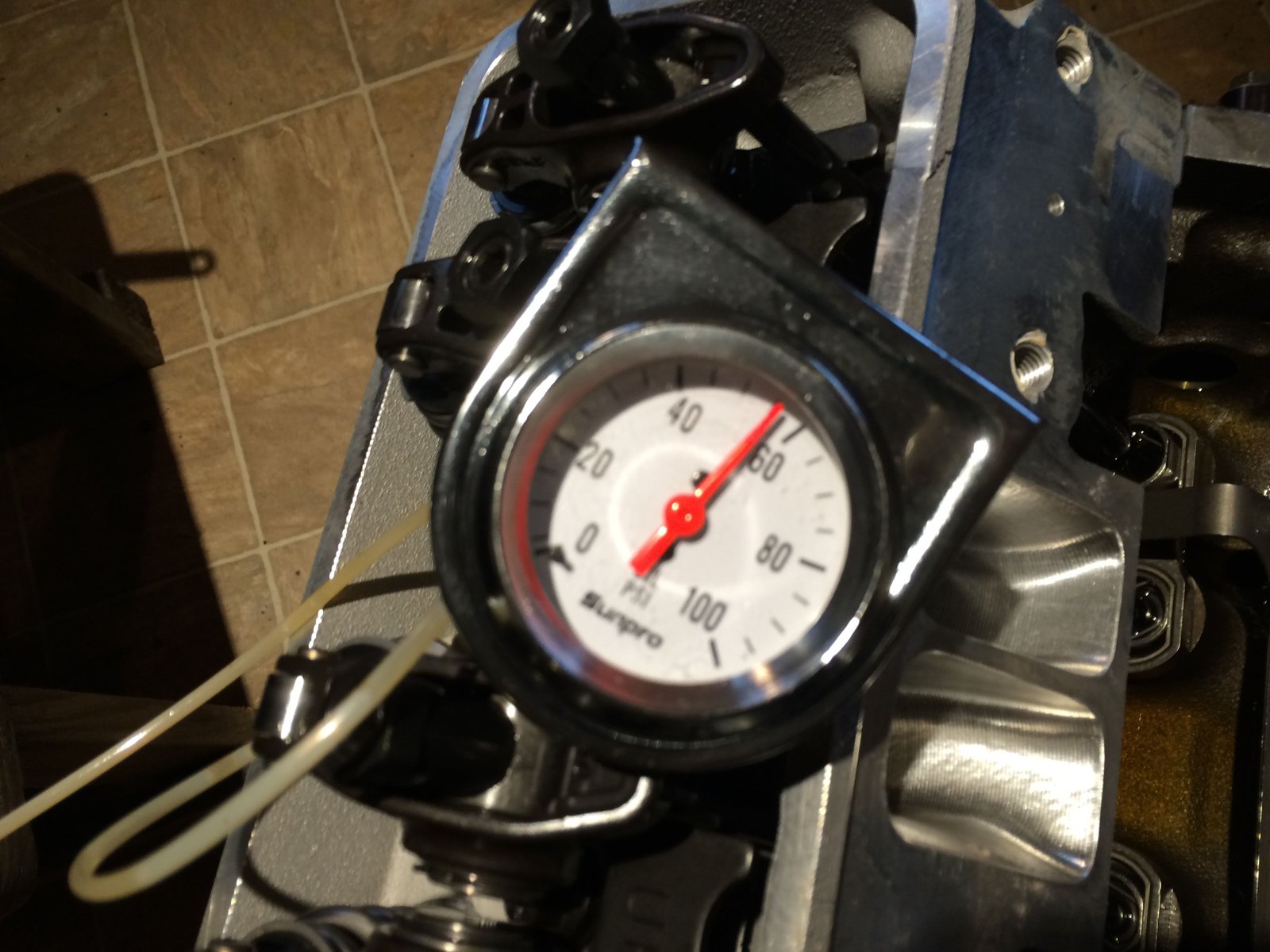

Oil system check.
|
Crower lifters.
|

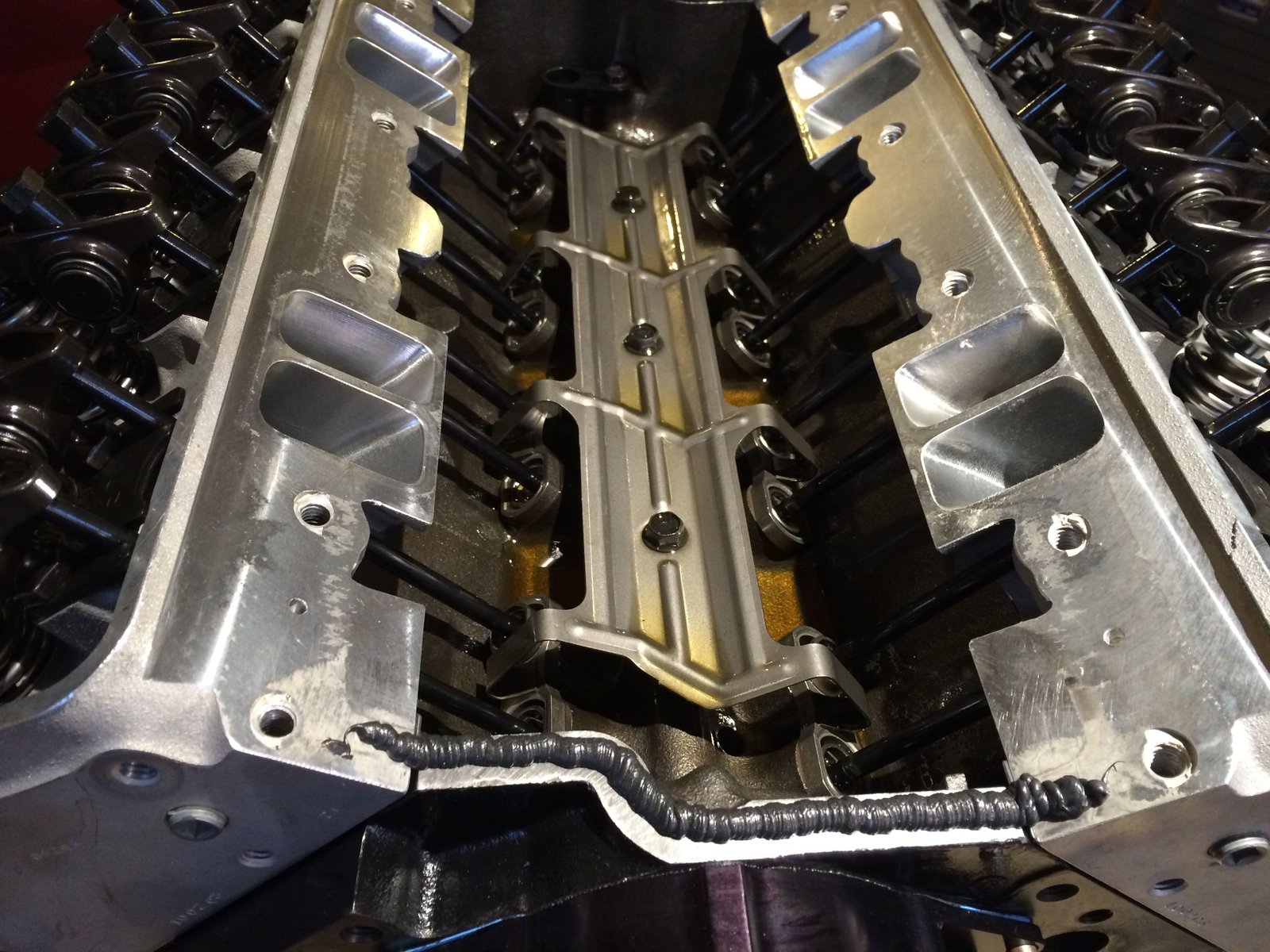

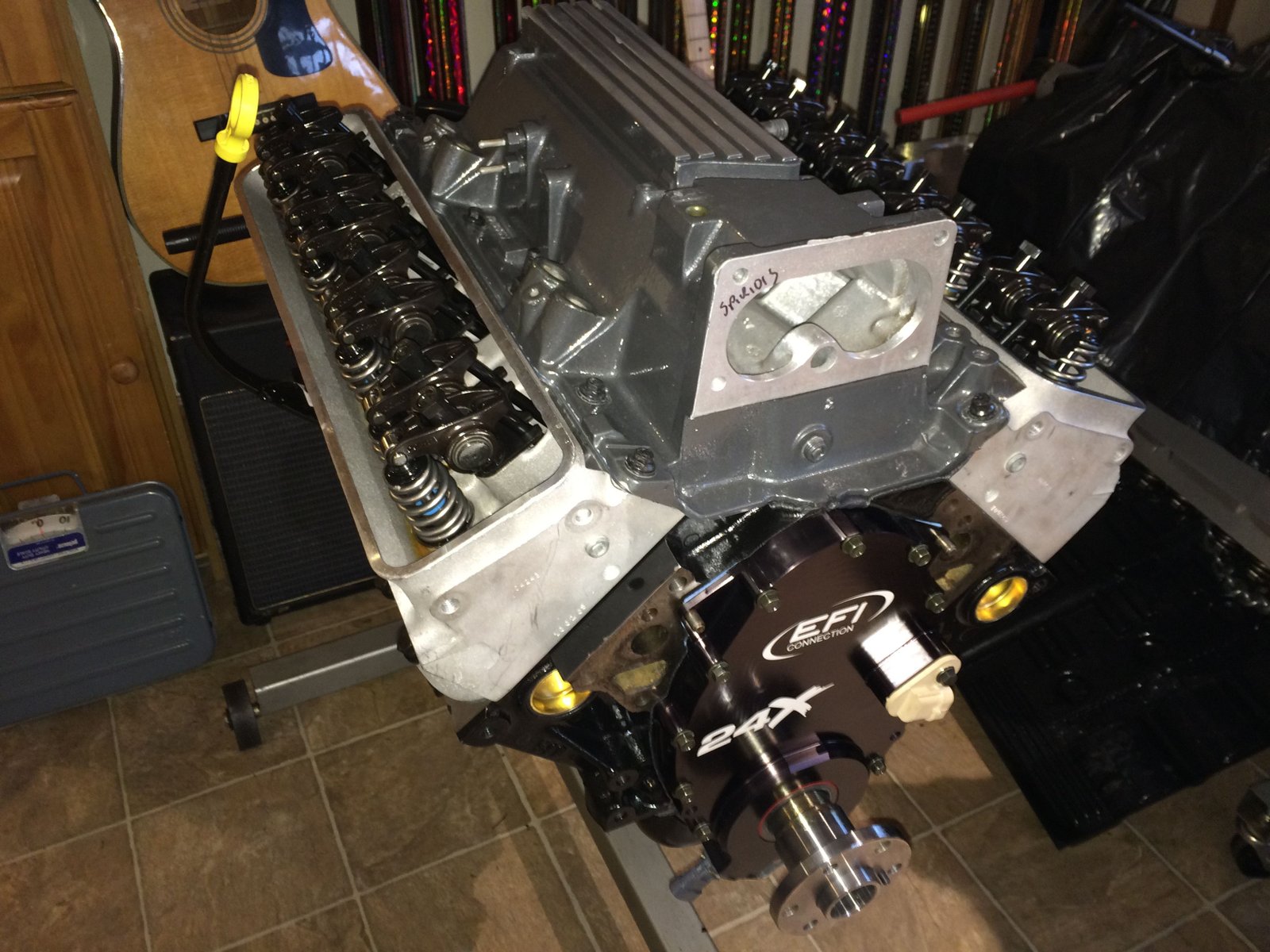

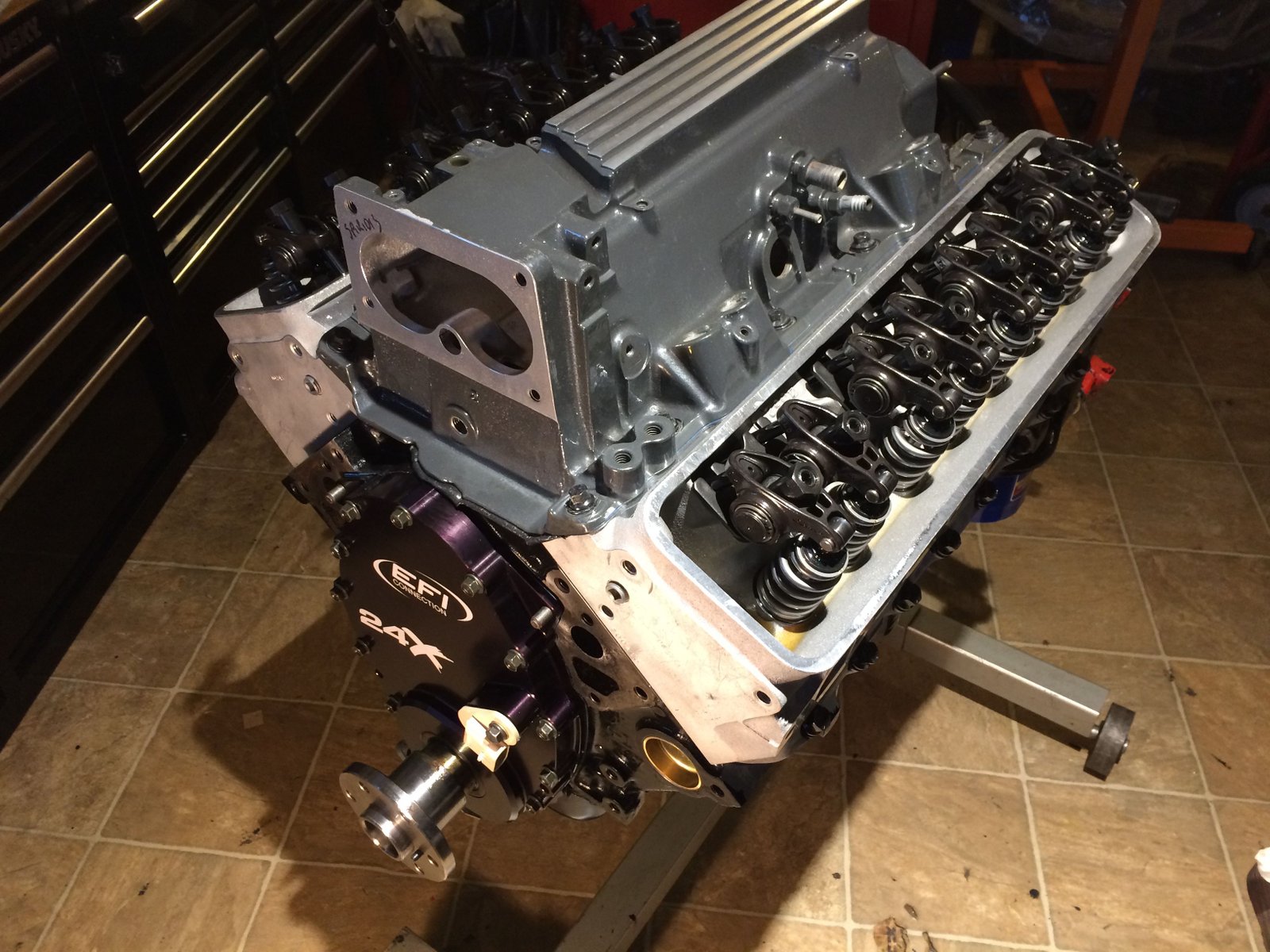

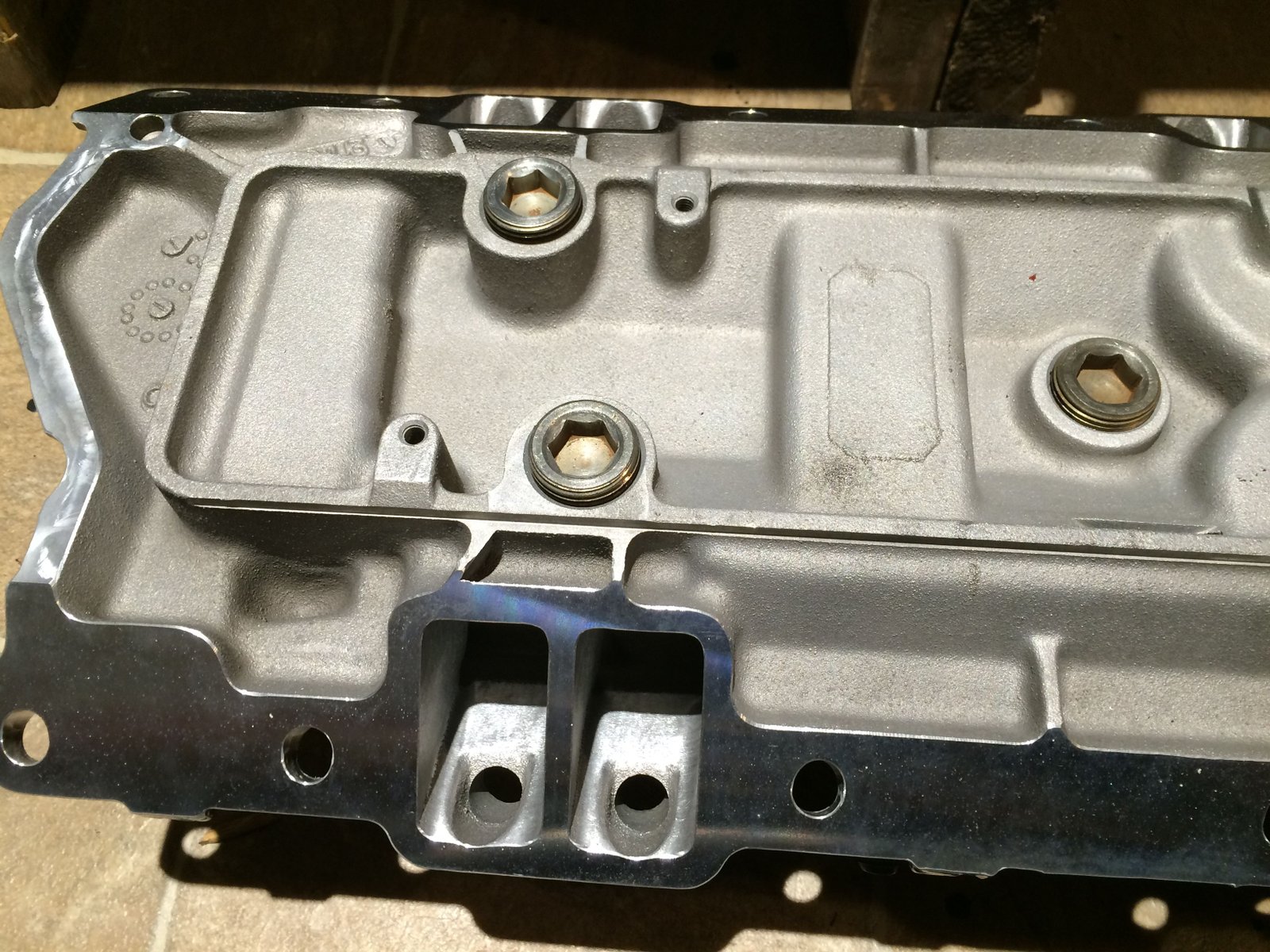

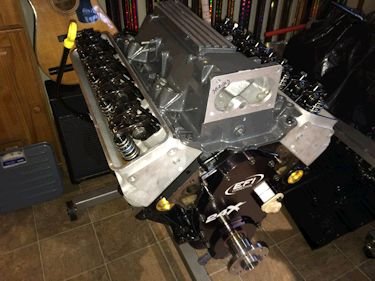

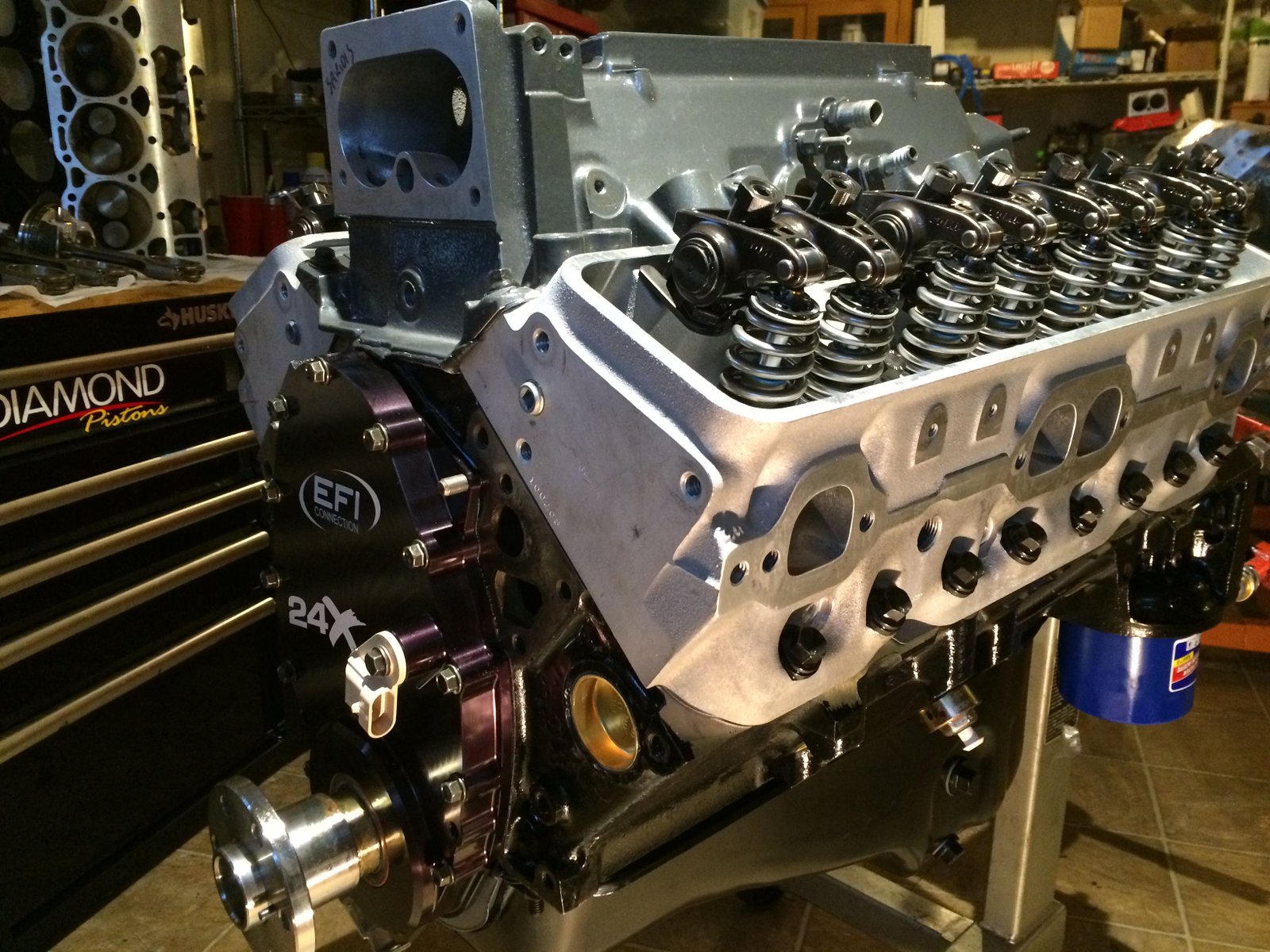

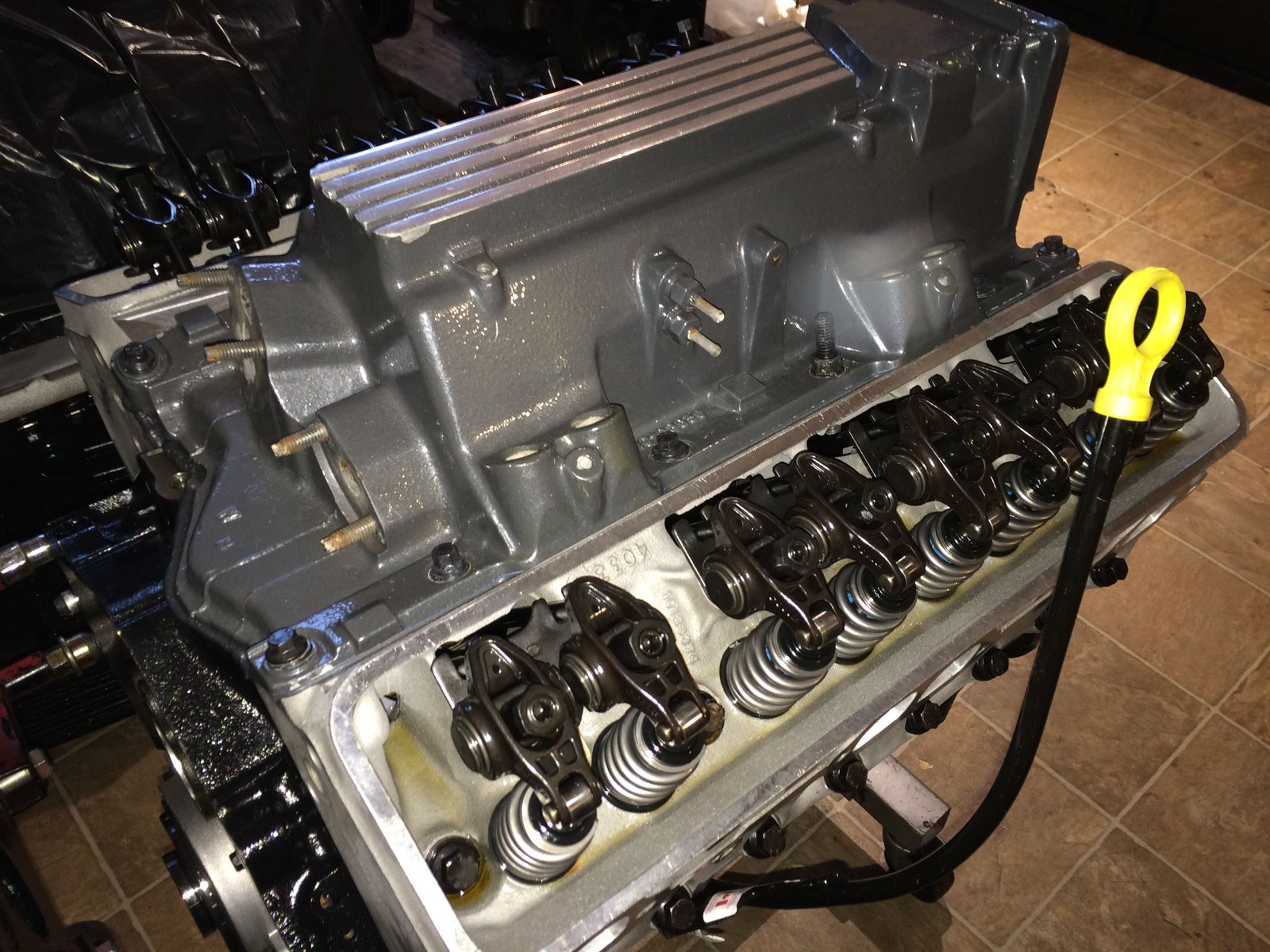

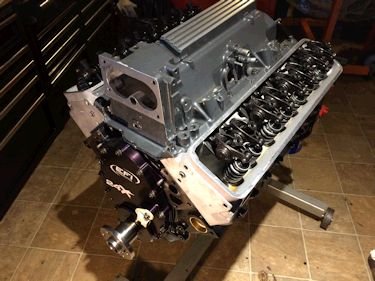

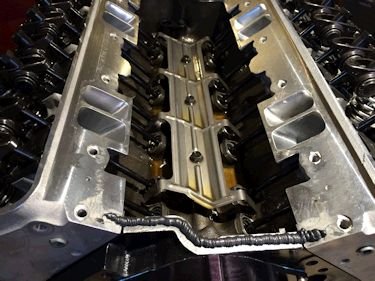

Ported intake manifold from Ai
|
|
|
|
|
|

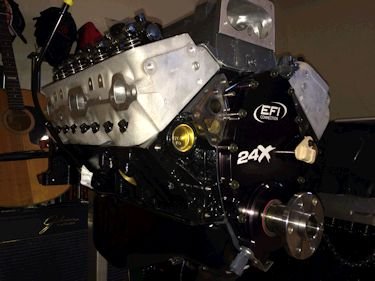

Last minute adjustments. The dip stick needs t be flat to
ease it past the splayed caps.
|
|
|
|
