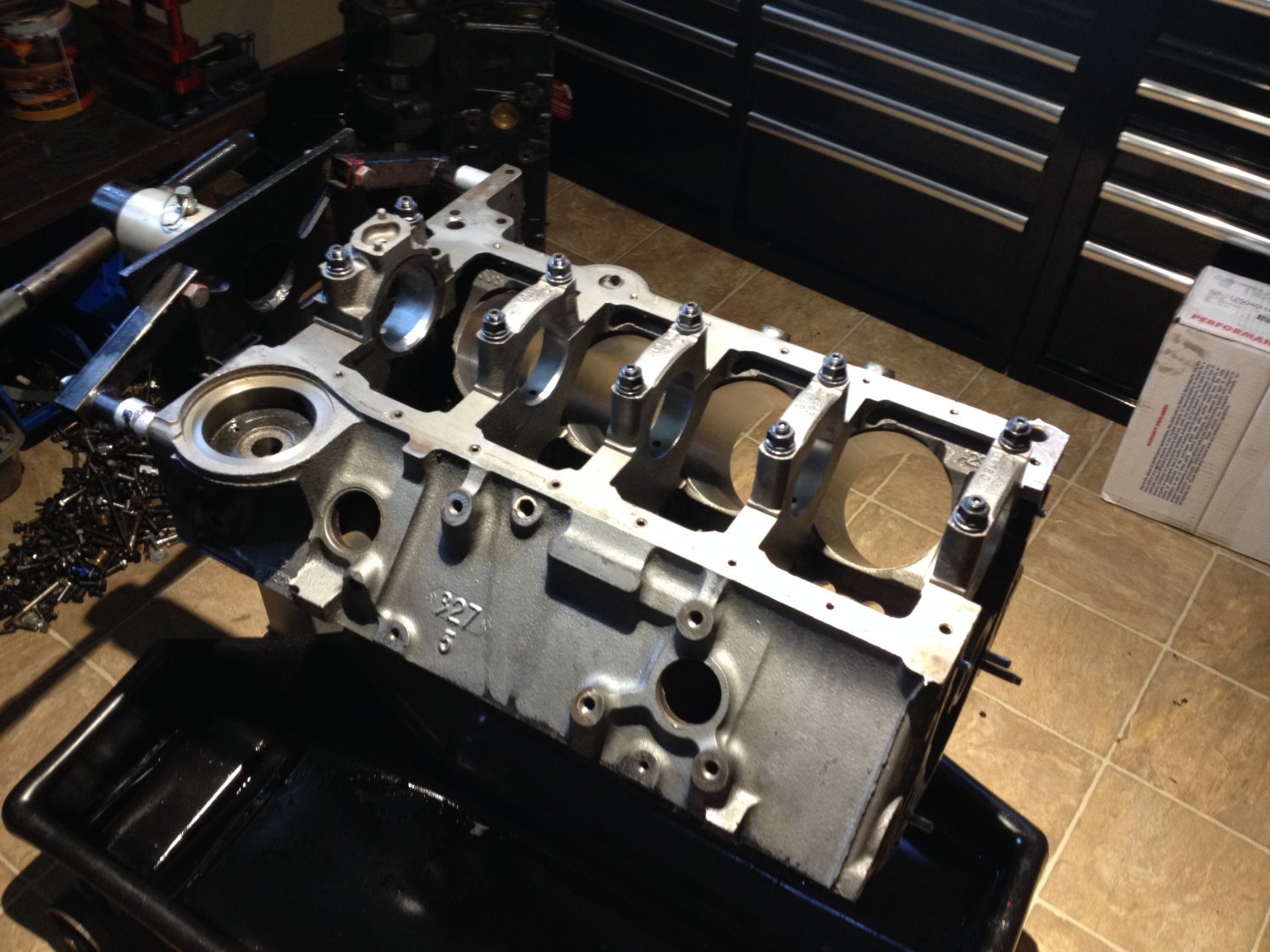

The block is freshly honed and cleaned.
|
![](3949t.jpg)
This block is a core from a good customer. It is bored to
4.040"
|
![](3950t.jpg)

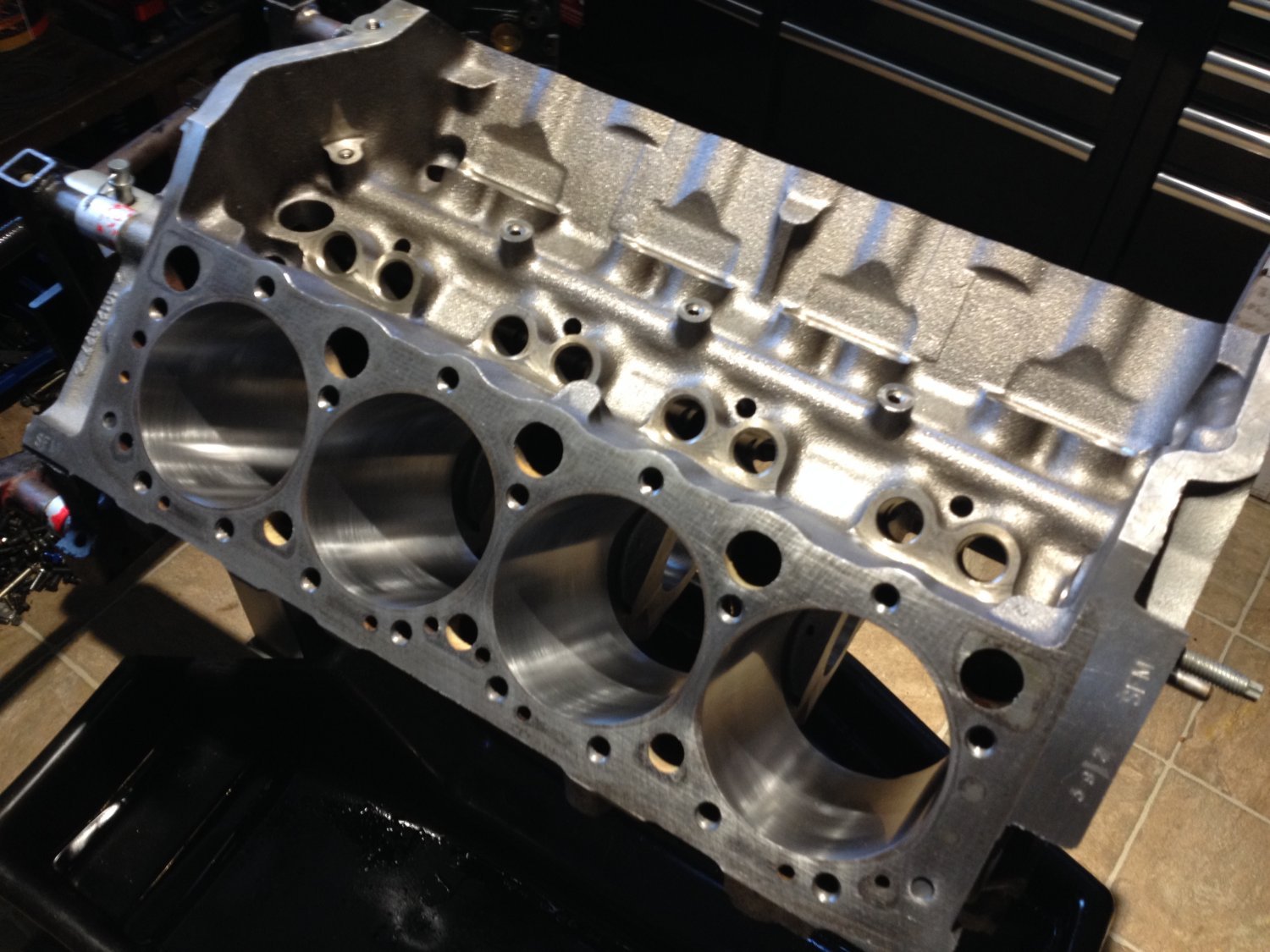

The core block had already been decked so I had the machine shop
simply clean and buff the deck.
|

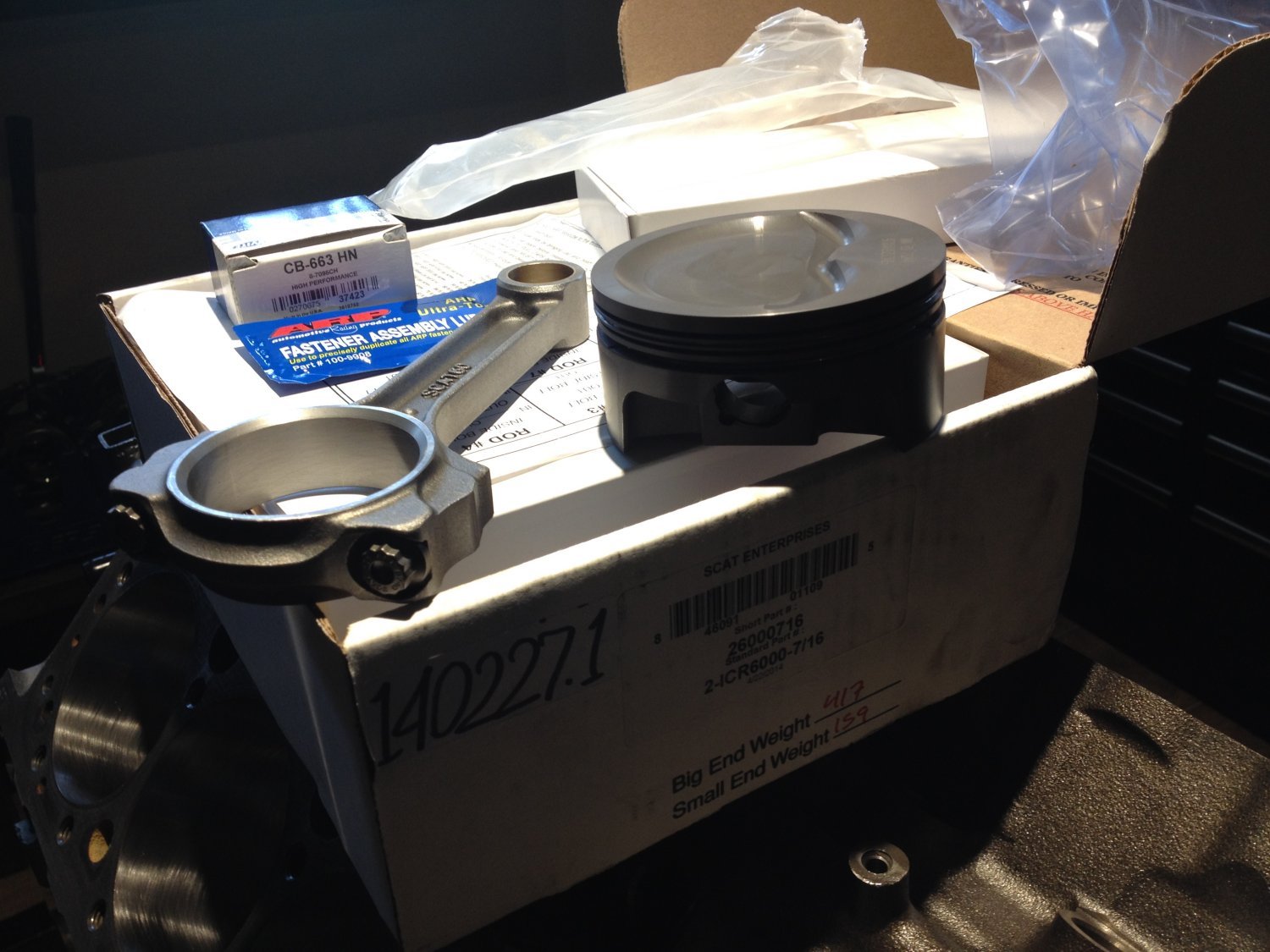

![](3951t.jpg)
The entire rotating assembly was sourced from SCAT. They
originally sent an SRP piston and I exchanged the SRP for the Mahle.
The piston/rings/pin/locks combo is 10 grams lighter. Now the
crankshaft is at the balance shop for a re-balance.
|
![](3952t.jpg)
The affordable yet still sturdy SCAT I-beam connecting rod with
7/16" rod bolts.
|
![](3953t.jpg)

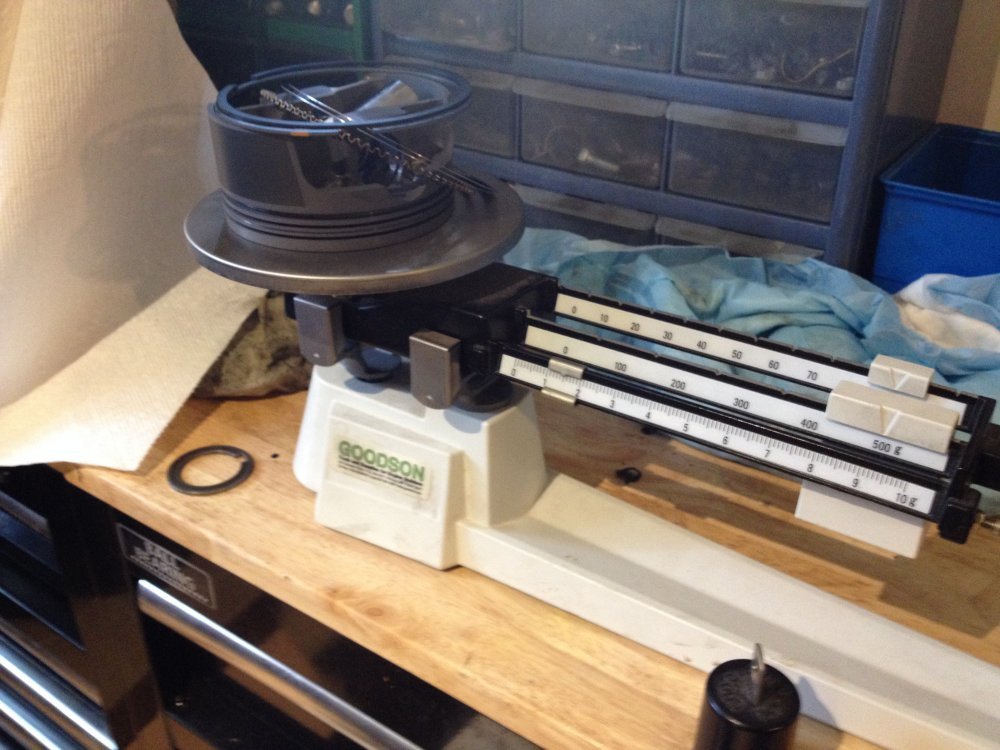

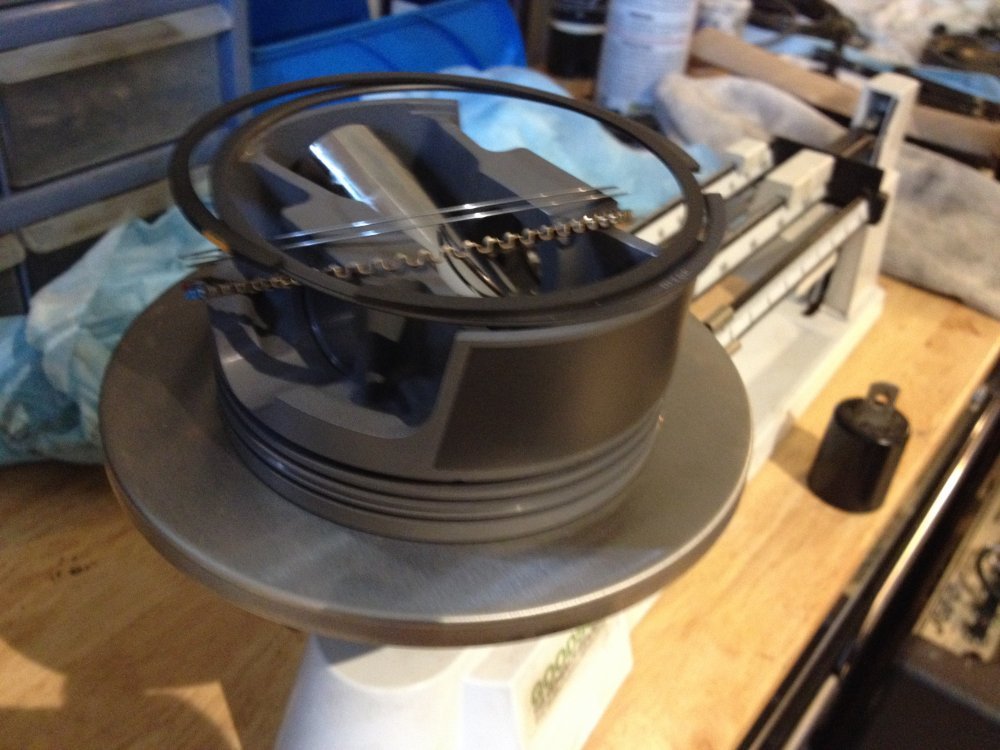

Piston part number Mahle SBC125040I16
|
|
Balance:
Rod big end 417g
Rod bearing 42.5g
Oil 4g
Rod small end 159g
Piston/pin/locks/rings 591.5g
Bob Weight = 1673.5g
|
![](3996t.jpg)

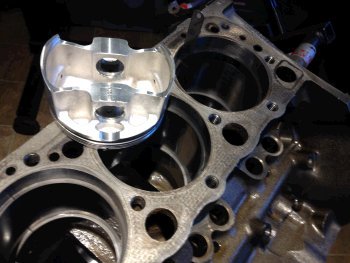

Mahle 4.040" piston checked for piston-to-wall clearance,
(.0030) just on the high side of the spec.
|
|
![](3999t.jpg)
TFS 21 degree LT1 heads (out-of-the-box)
|
![](4002t.jpg)
Piston and rod assemblies.
|
![](4003t.jpg)
Mahle uses a 1 gram wire lock to save weight, (every gram counts)
|
![](4005t.jpg)

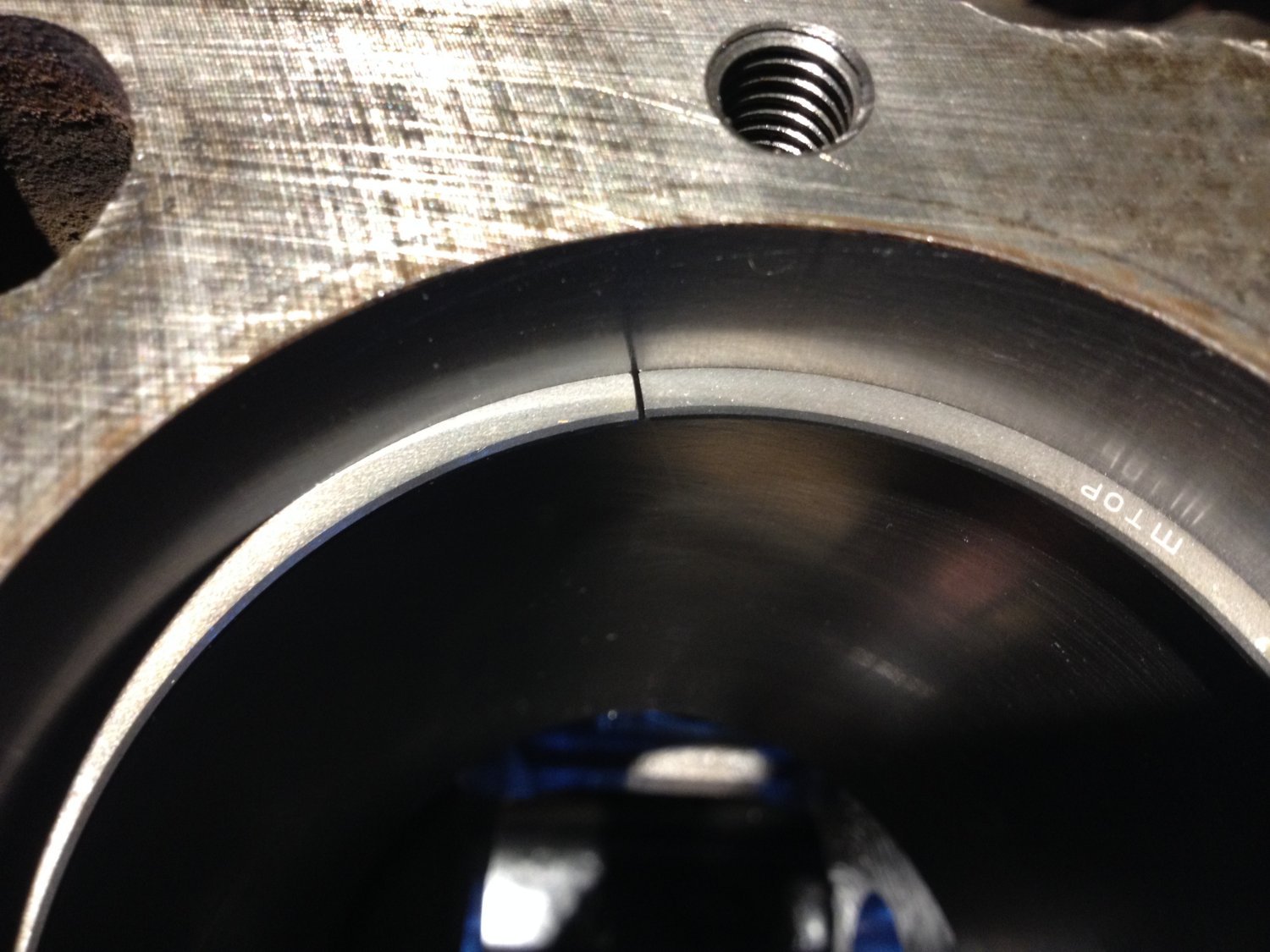

File fit of Mahle rings, (.020" top ring and .018" 2nd
ring)
|
|
|
|

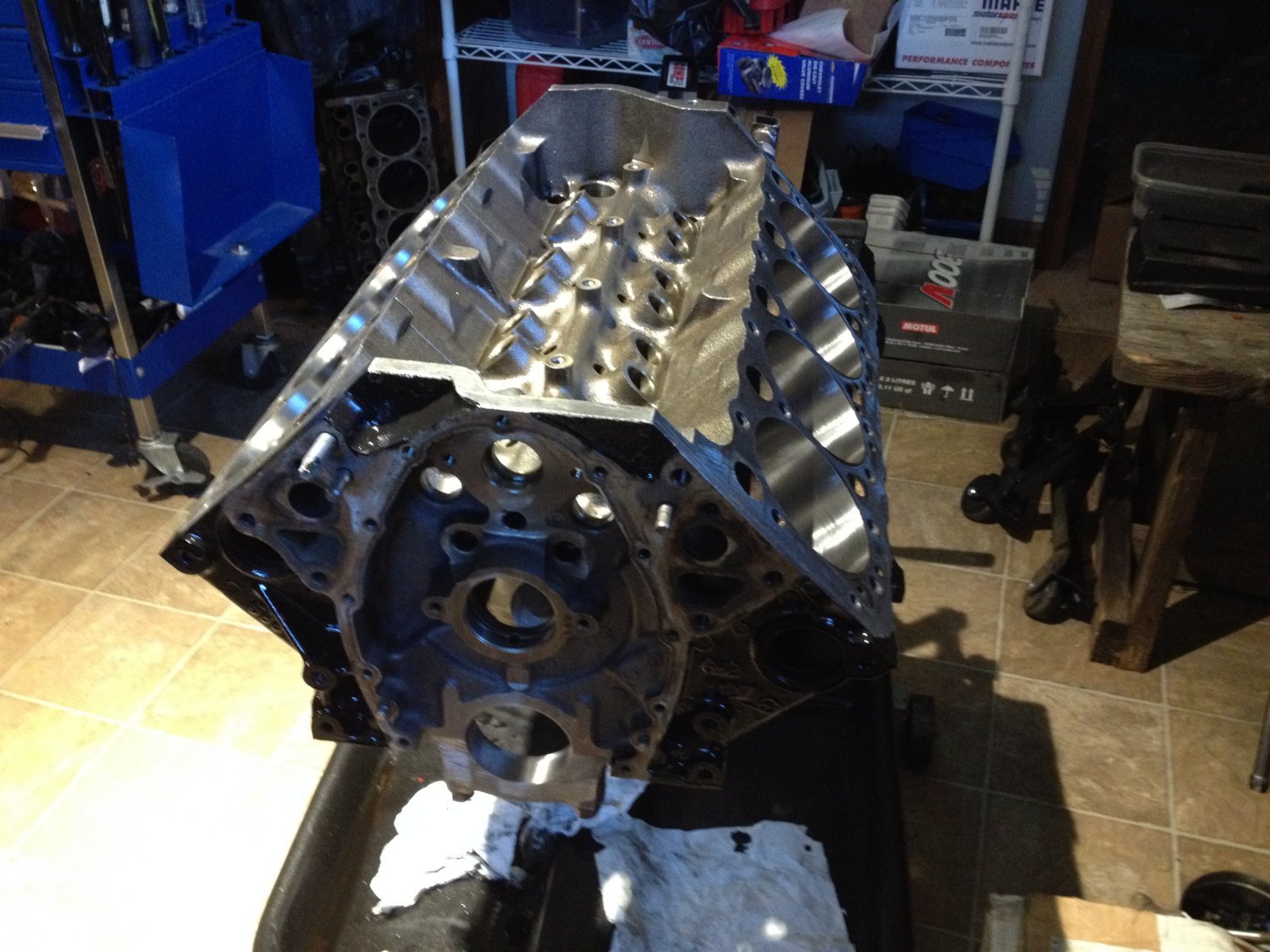

![](4010t.jpg)
Block painted with POR15 engine black
|
![](153t.jpg)

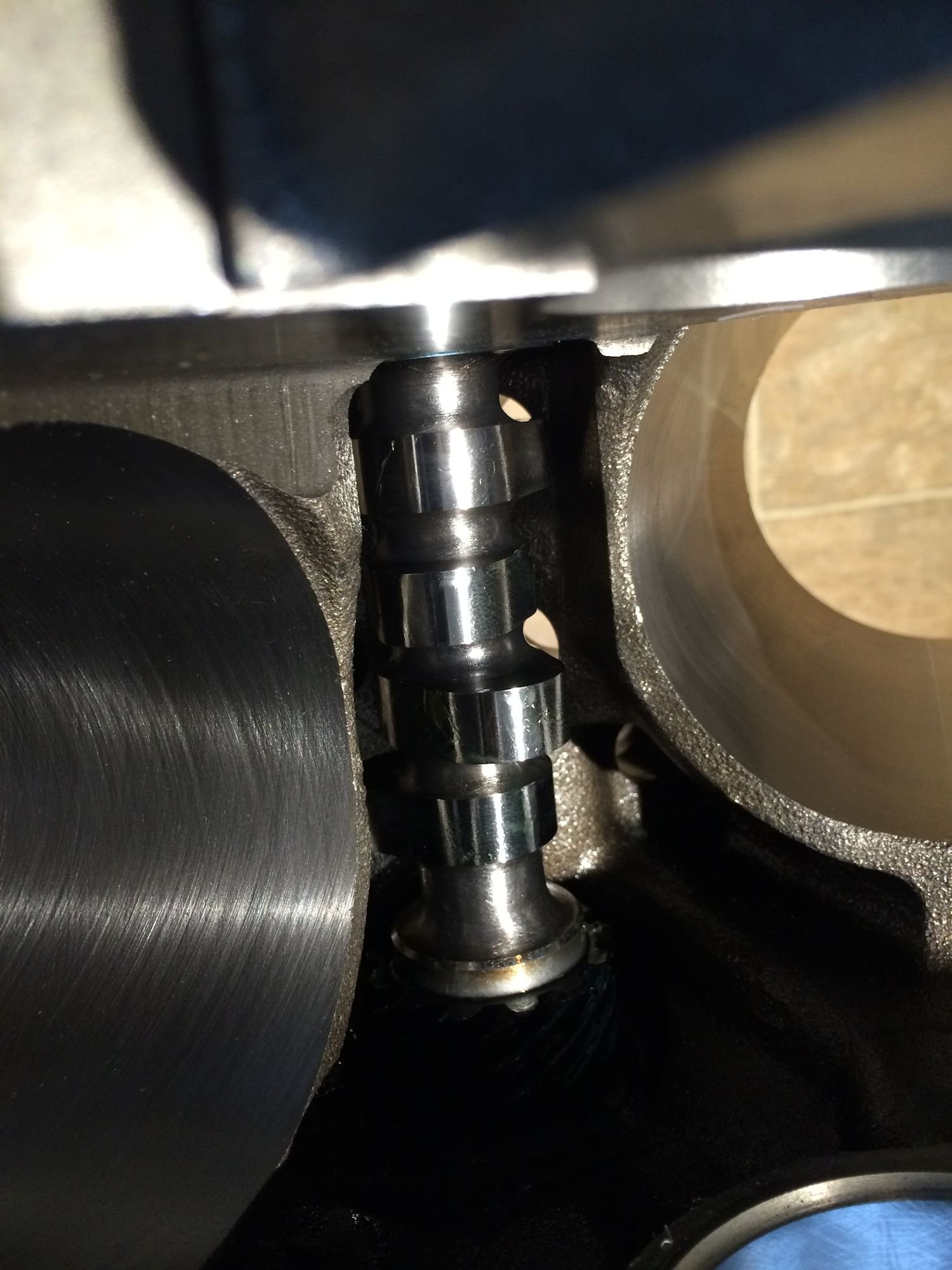

Camshaft installed.
|
|

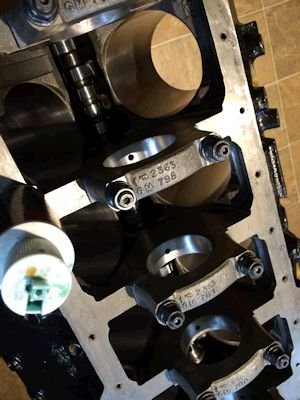

![](156t.jpg)

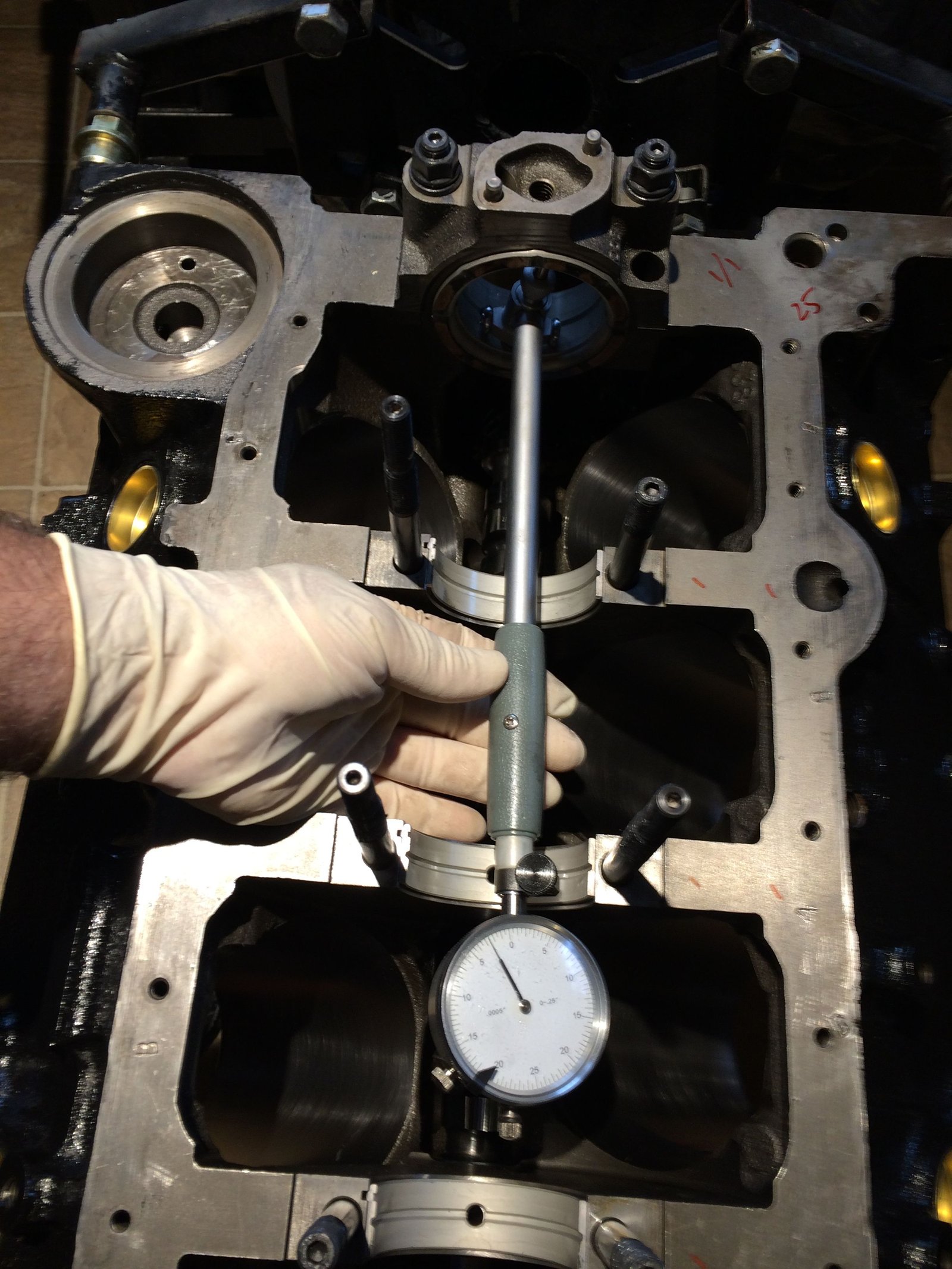

Main bearing check. All beairng clearance from .0025"
to .0020"
|

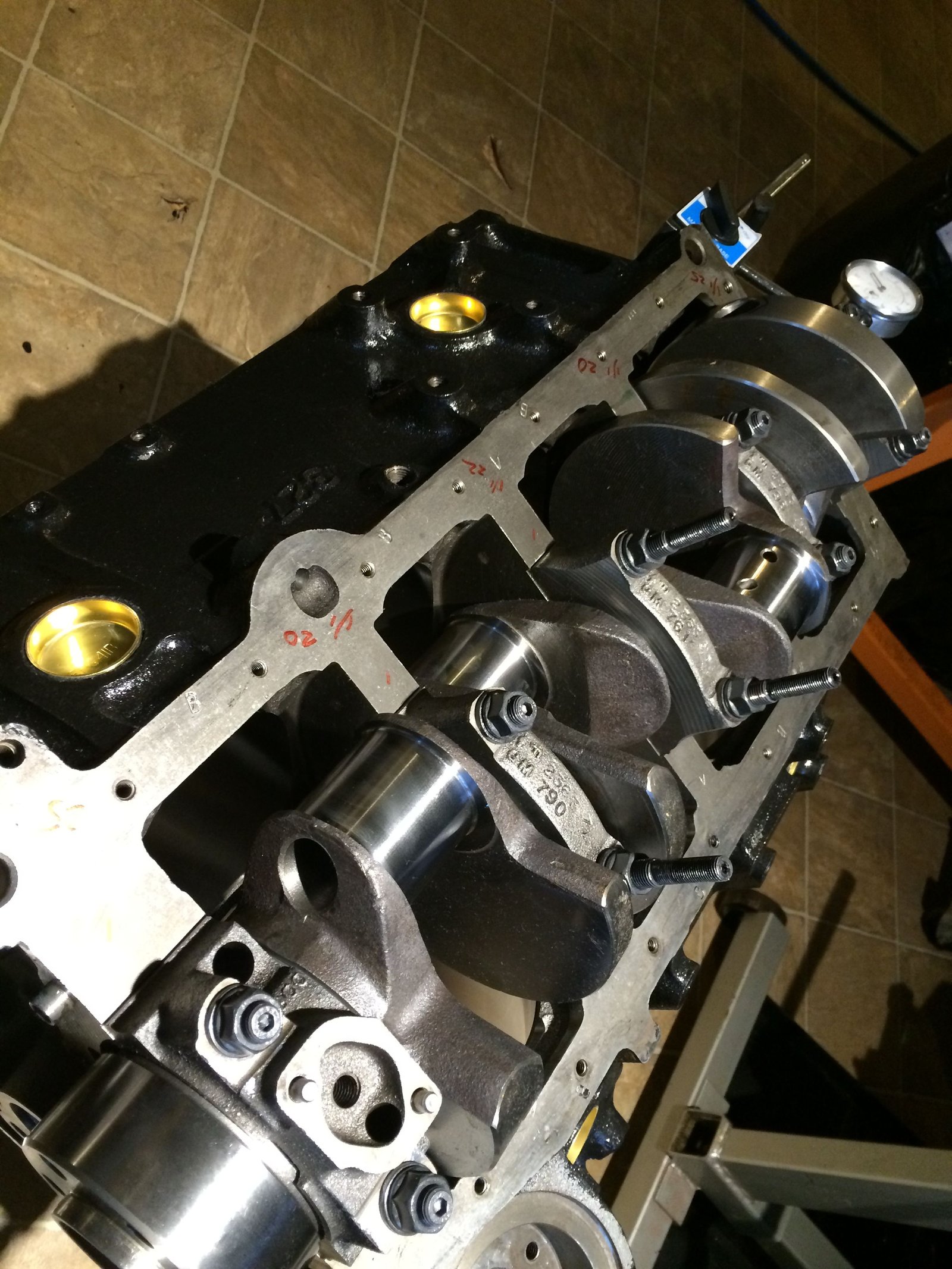

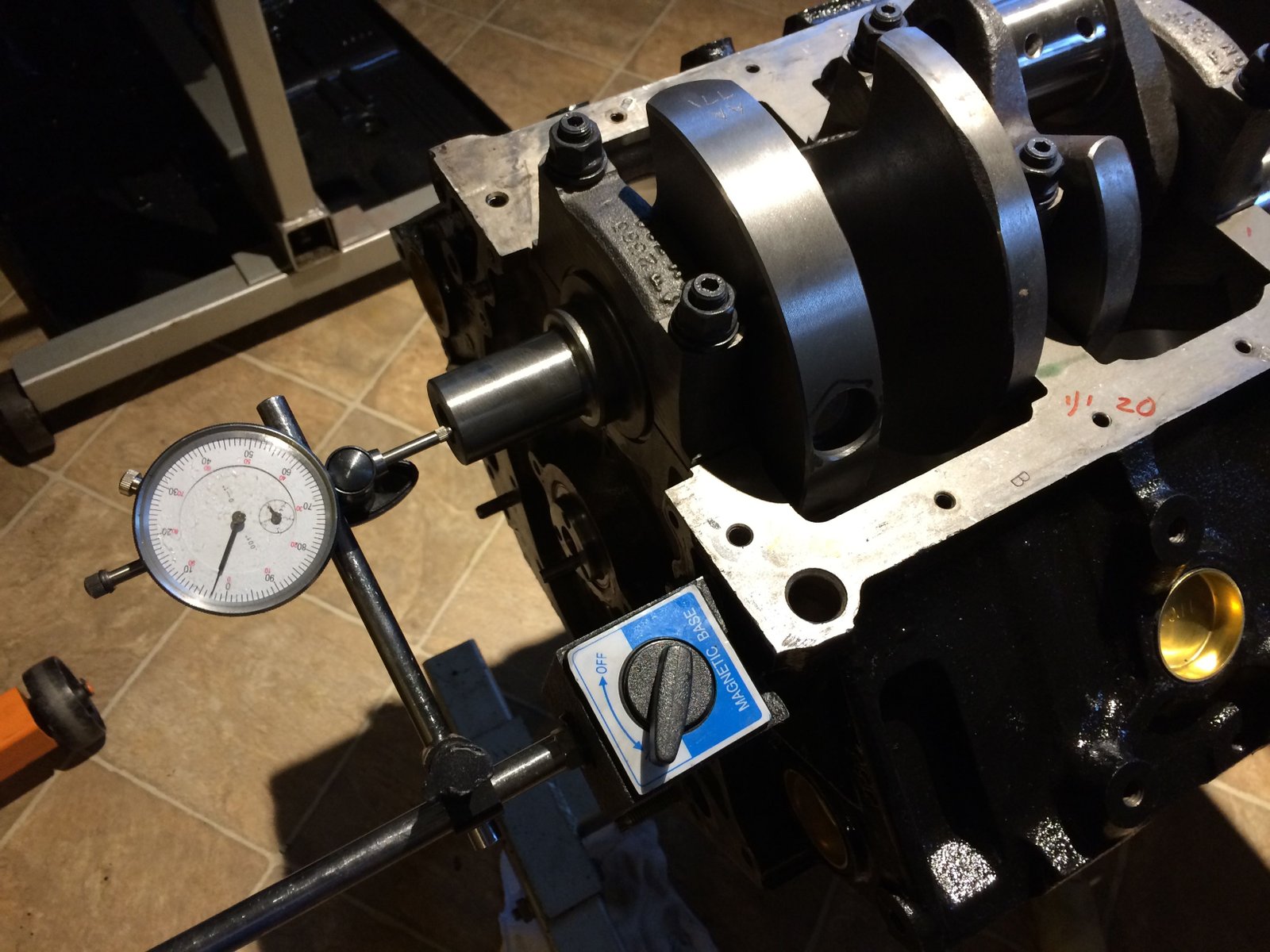

![](165t.jpg)
Crank thrust is .007"
|
|
|

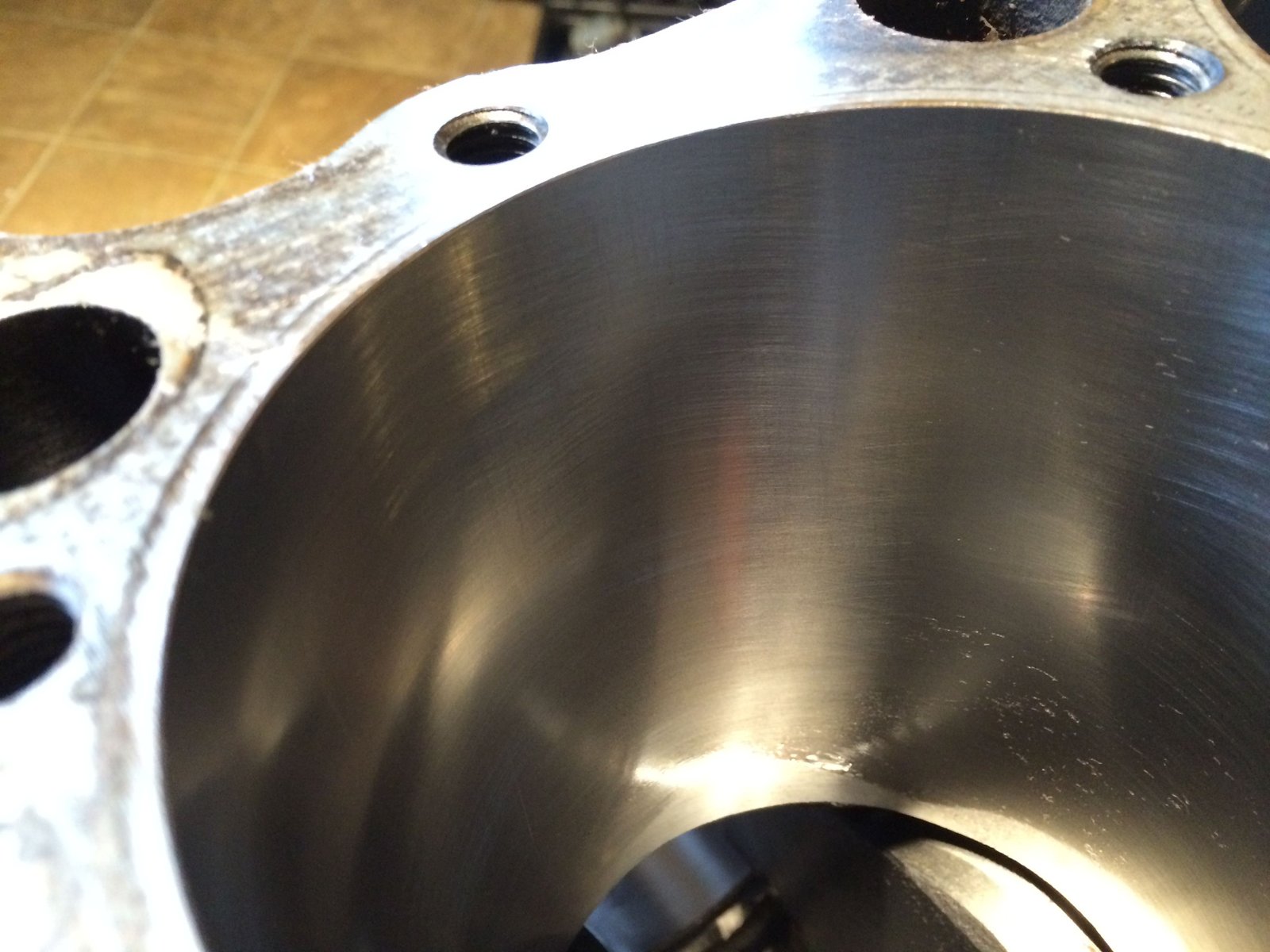

![](168t.jpg)

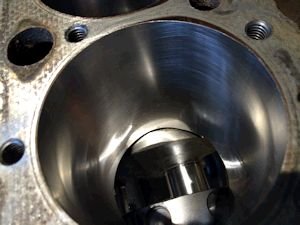

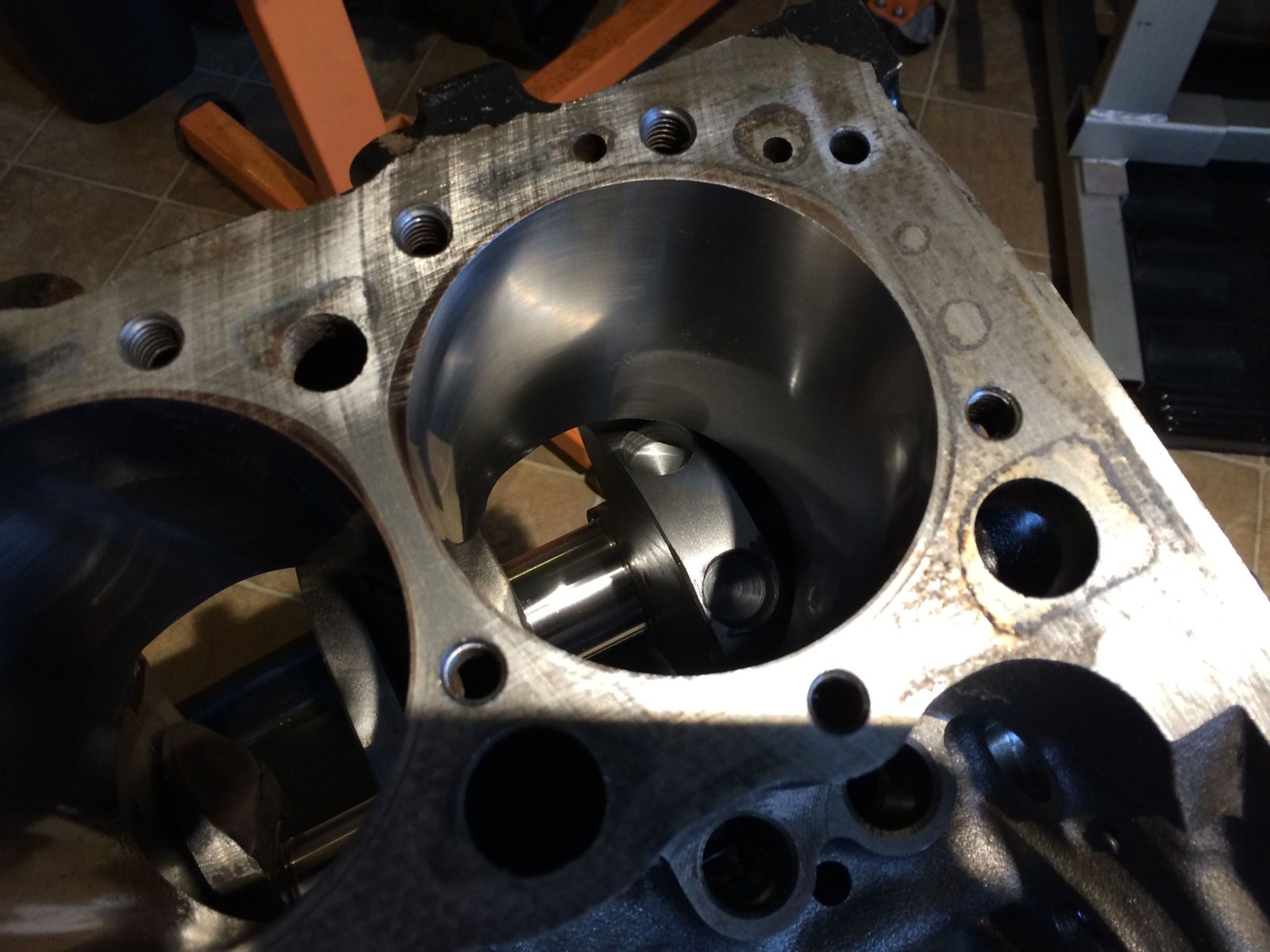

Cylinders verified clean
|
|
|
![](173t.jpg)
Installed #1 piston/rod and degreed camshaft. Found to be
106 deg intake centerline. Exactly as cam card.
|
|
|

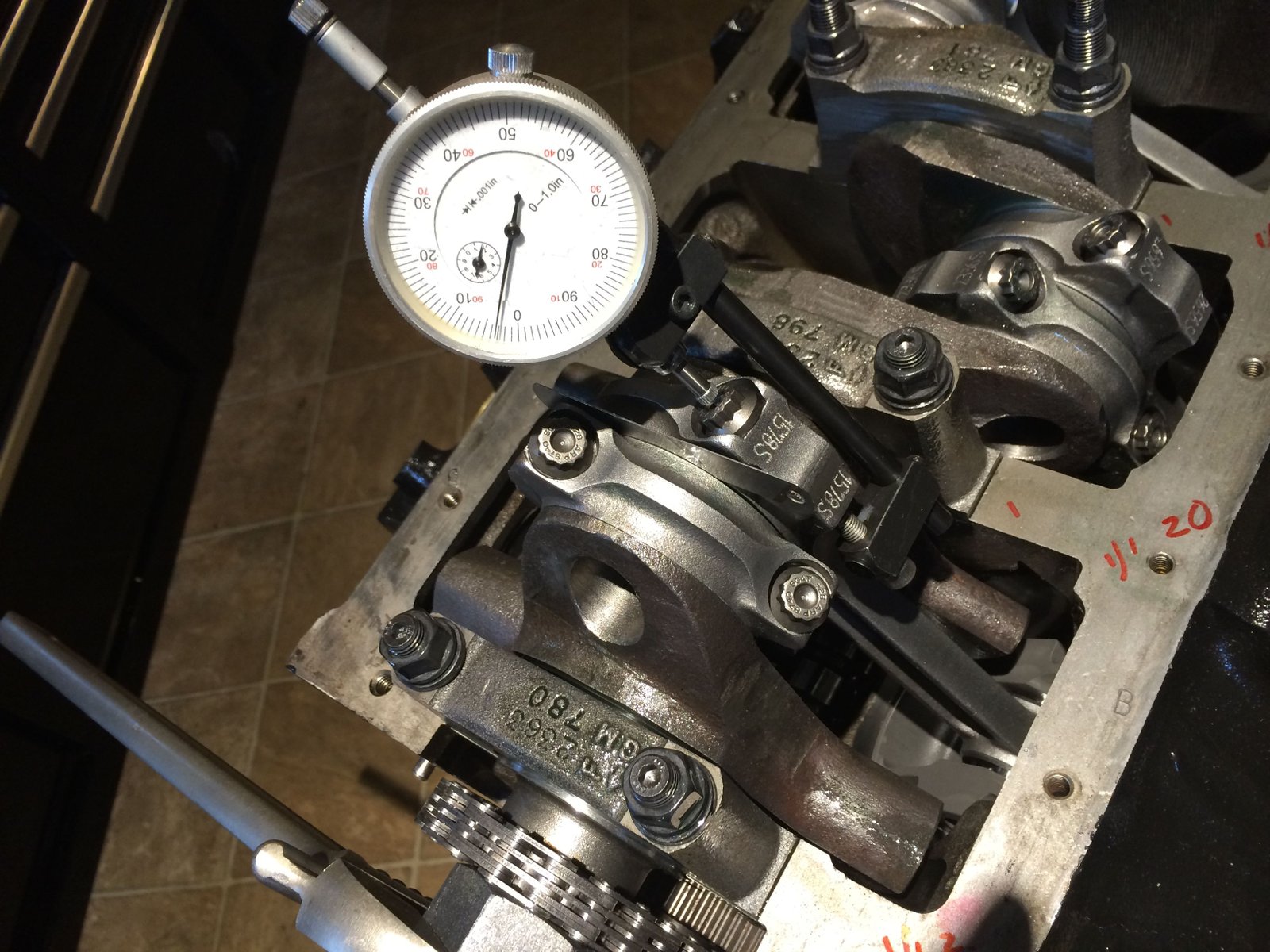

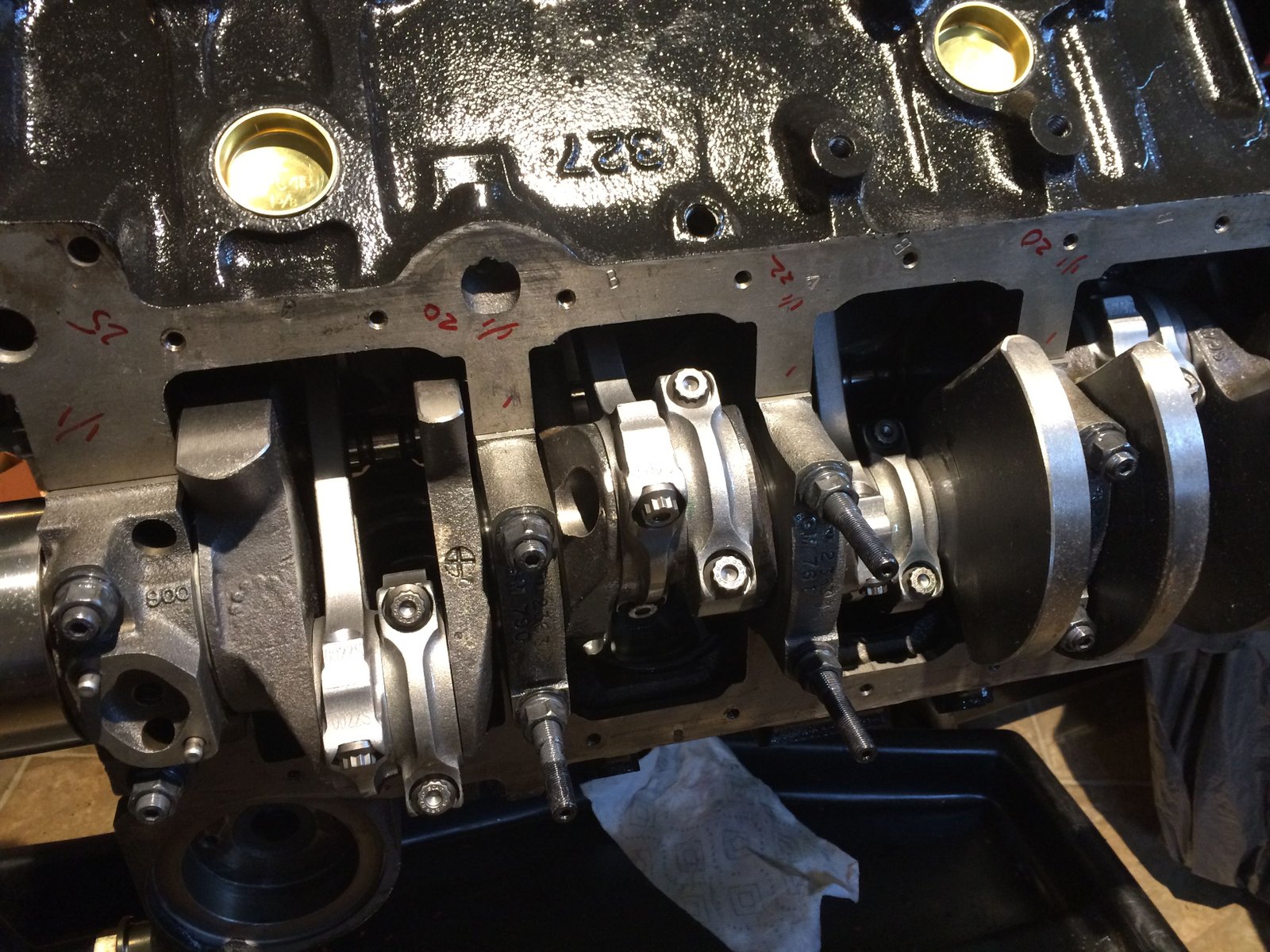

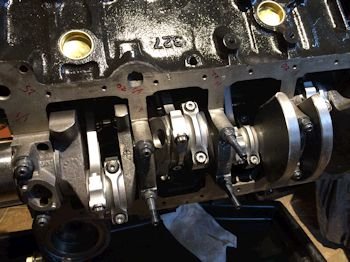

![](180t.jpg)

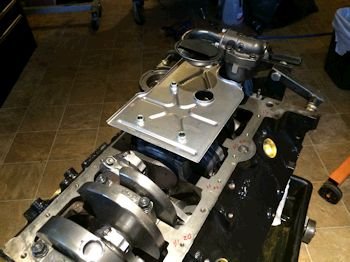

Rod side clearance is .018 to .019" and rod bolt stretch is .004
to .005"
|
|

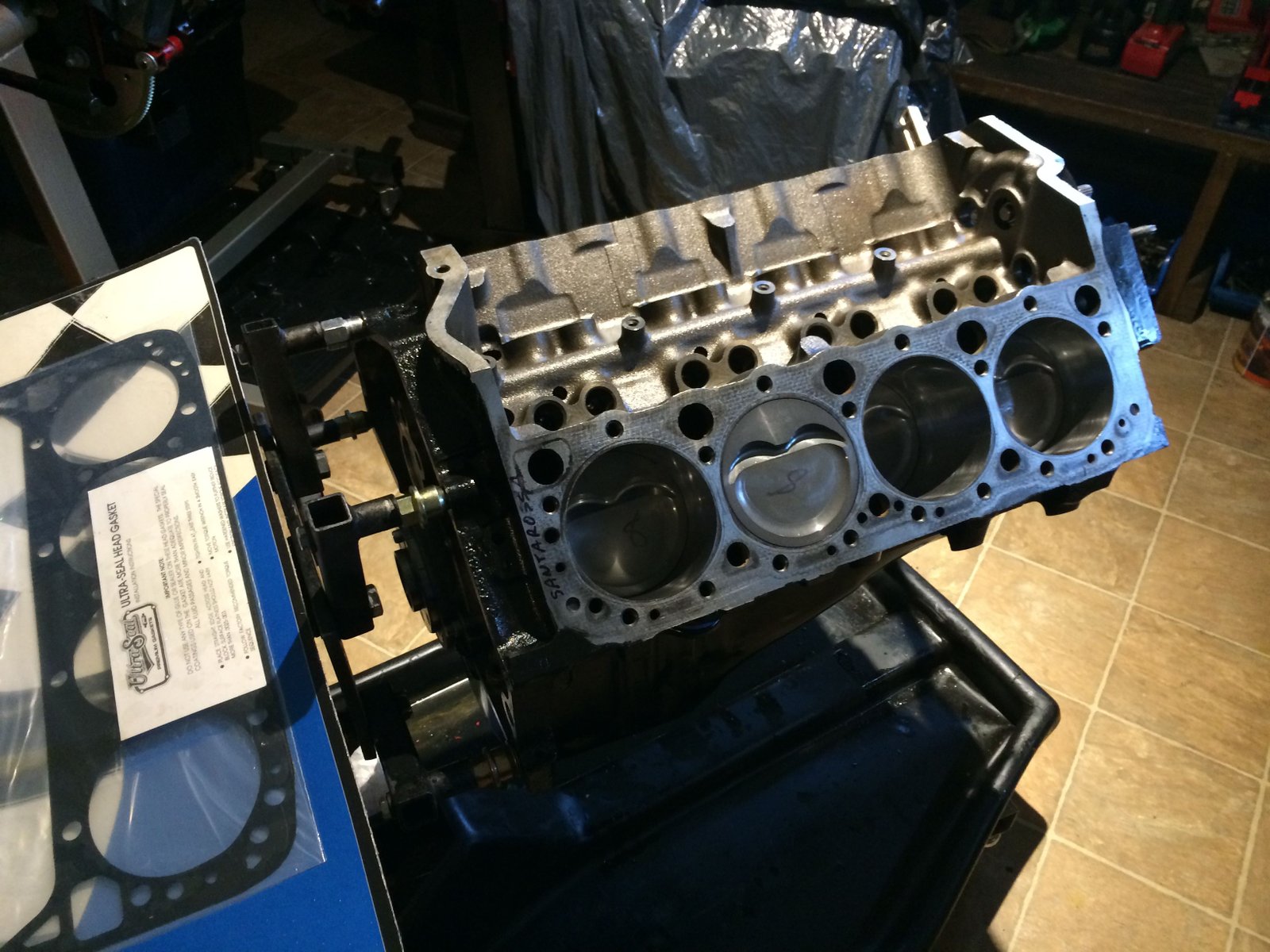

![](182t.jpg)

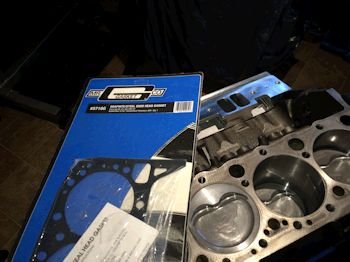

Mr. Gasket .026" thick head gasket.
|

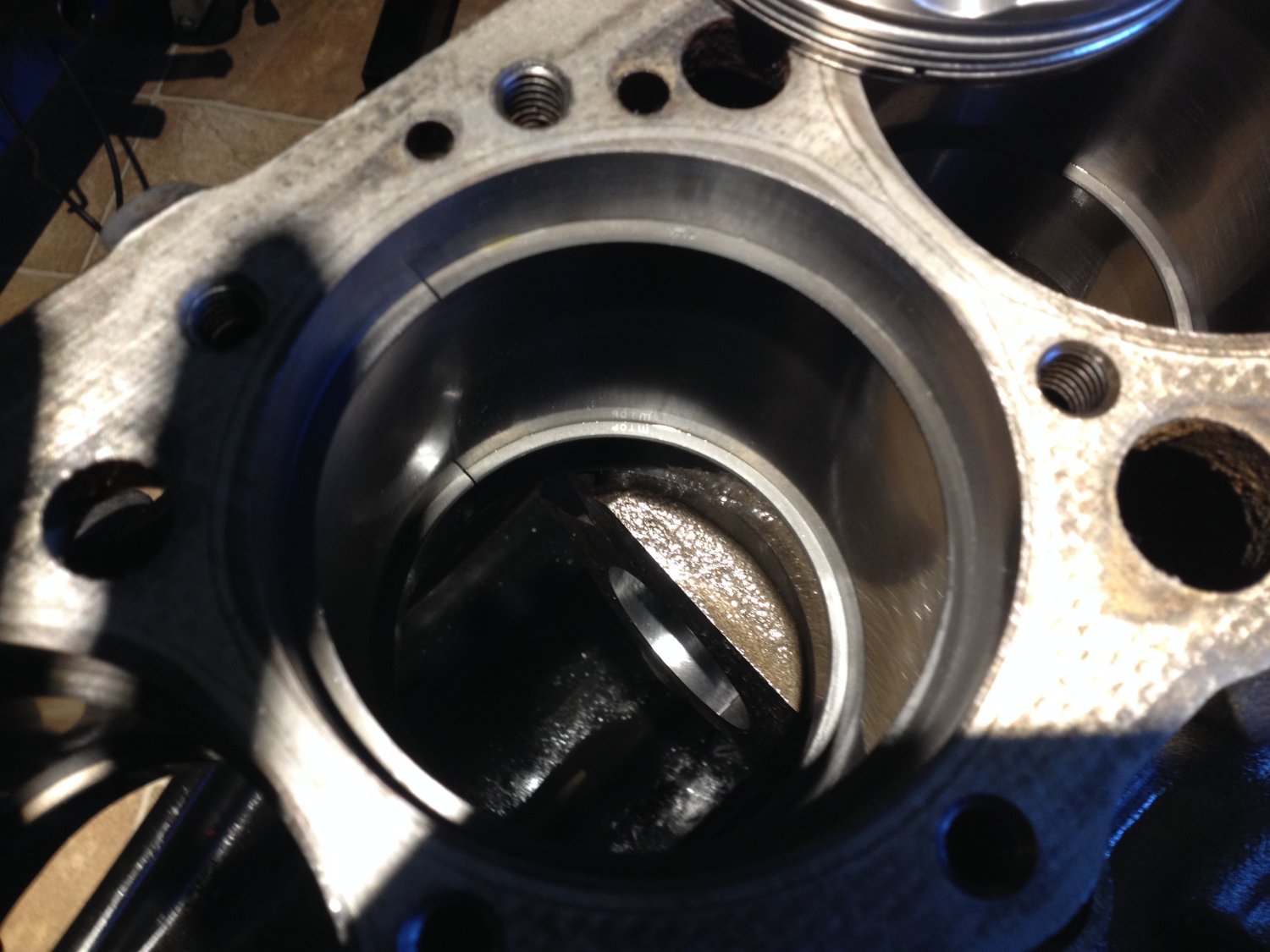

![](183t.jpg)

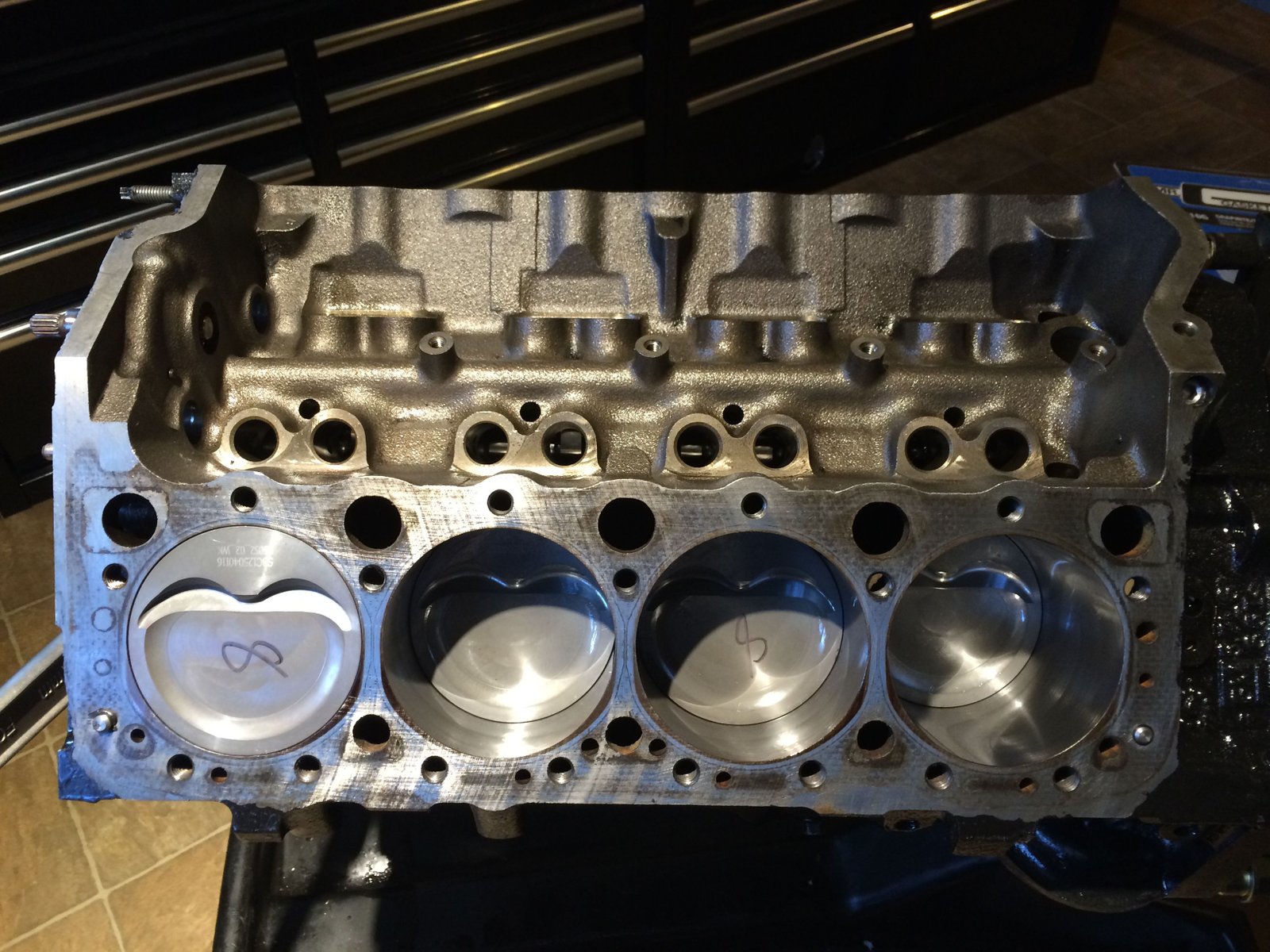

Pistons are .008" in the hole
|
|

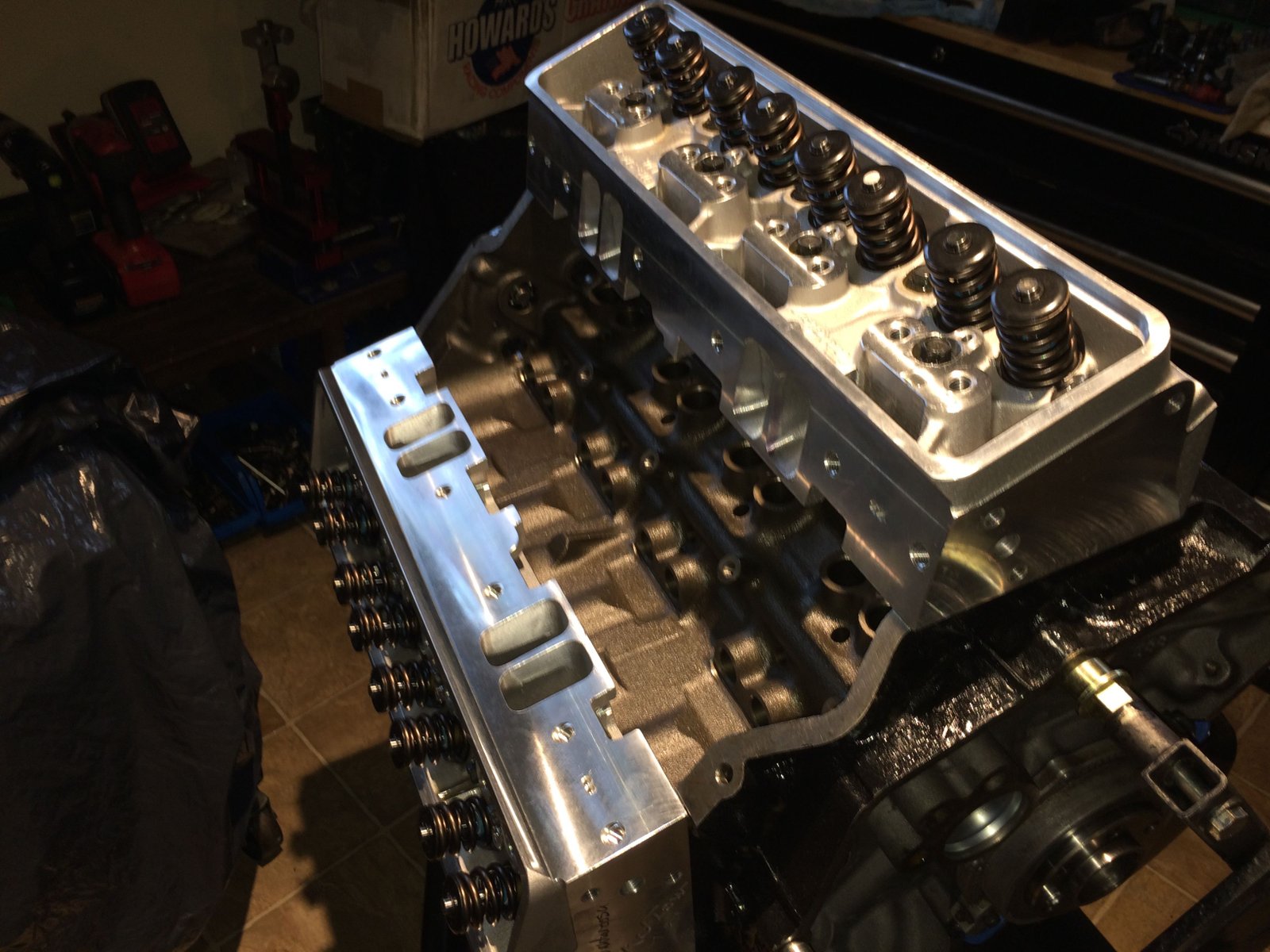

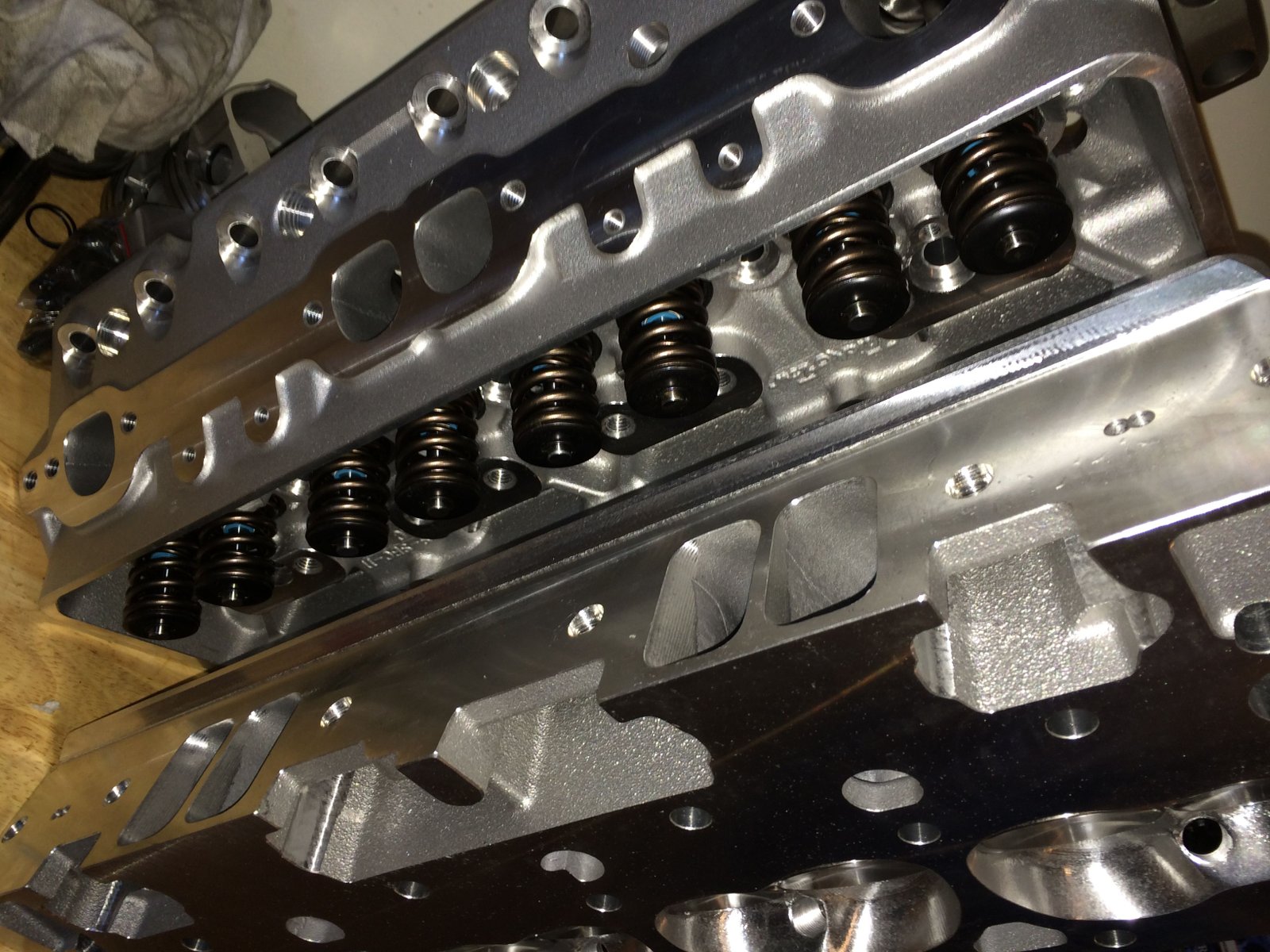

![](186t.jpg)

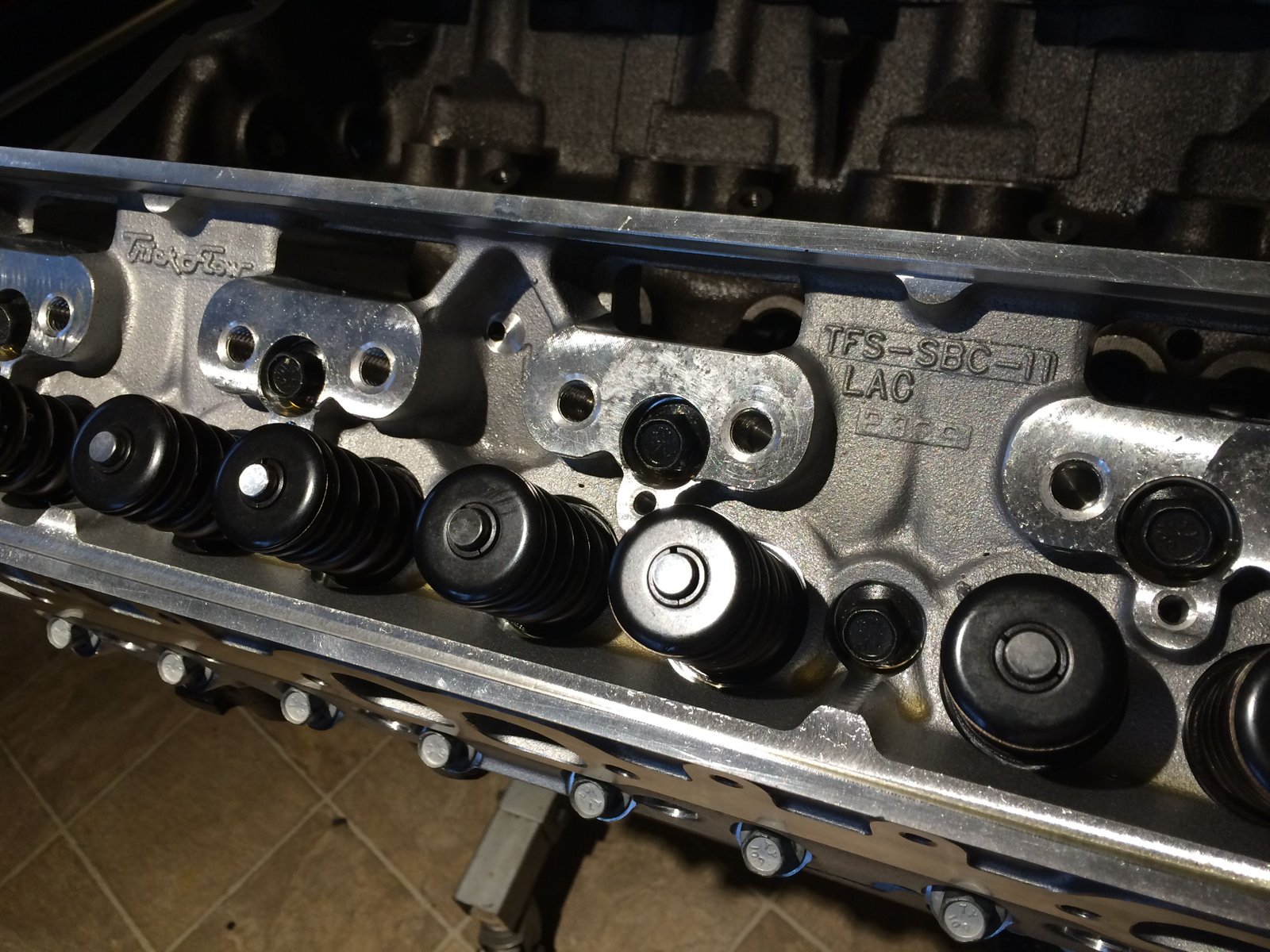

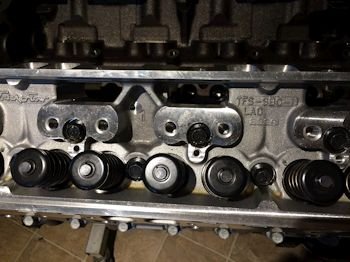

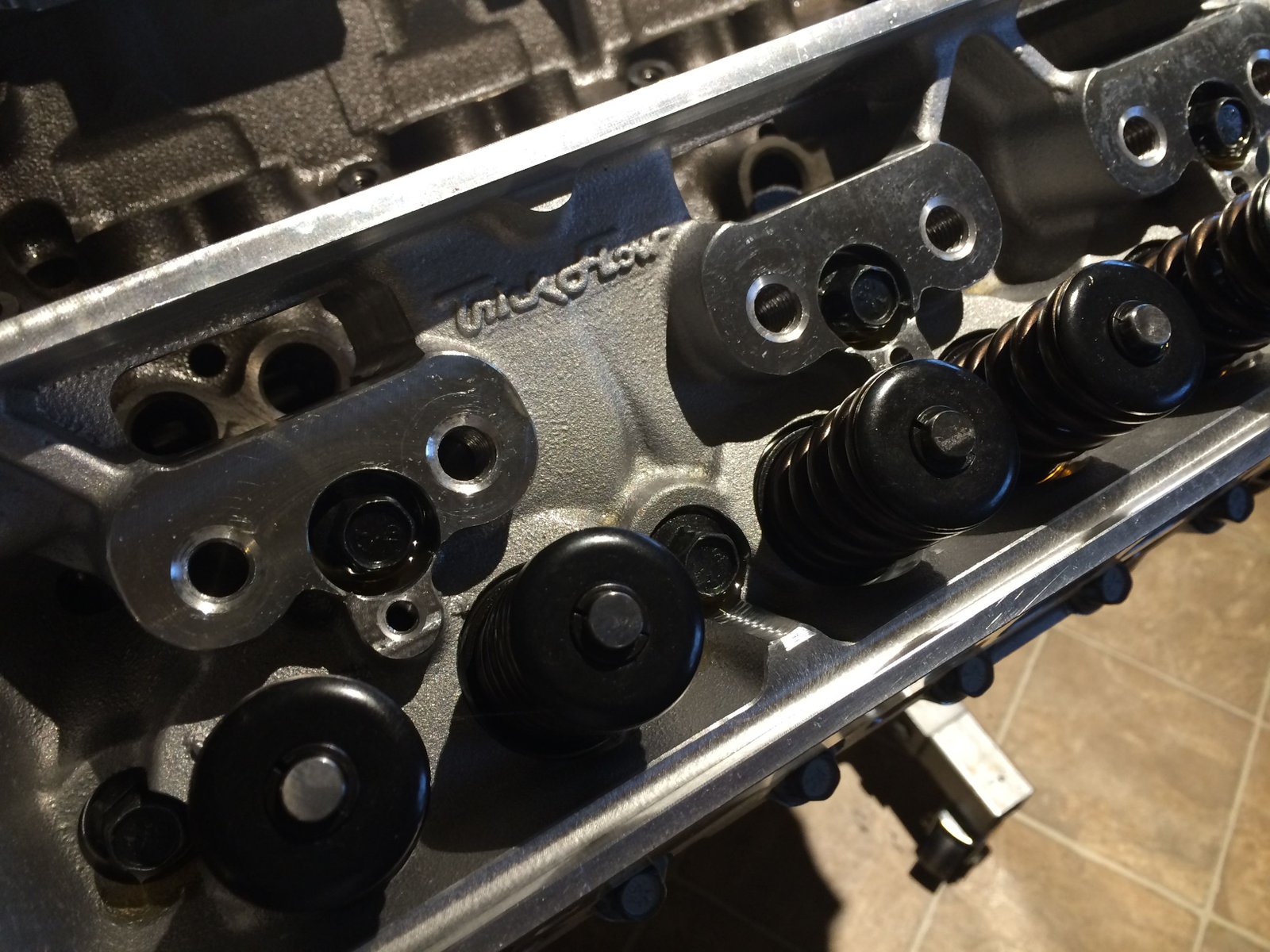

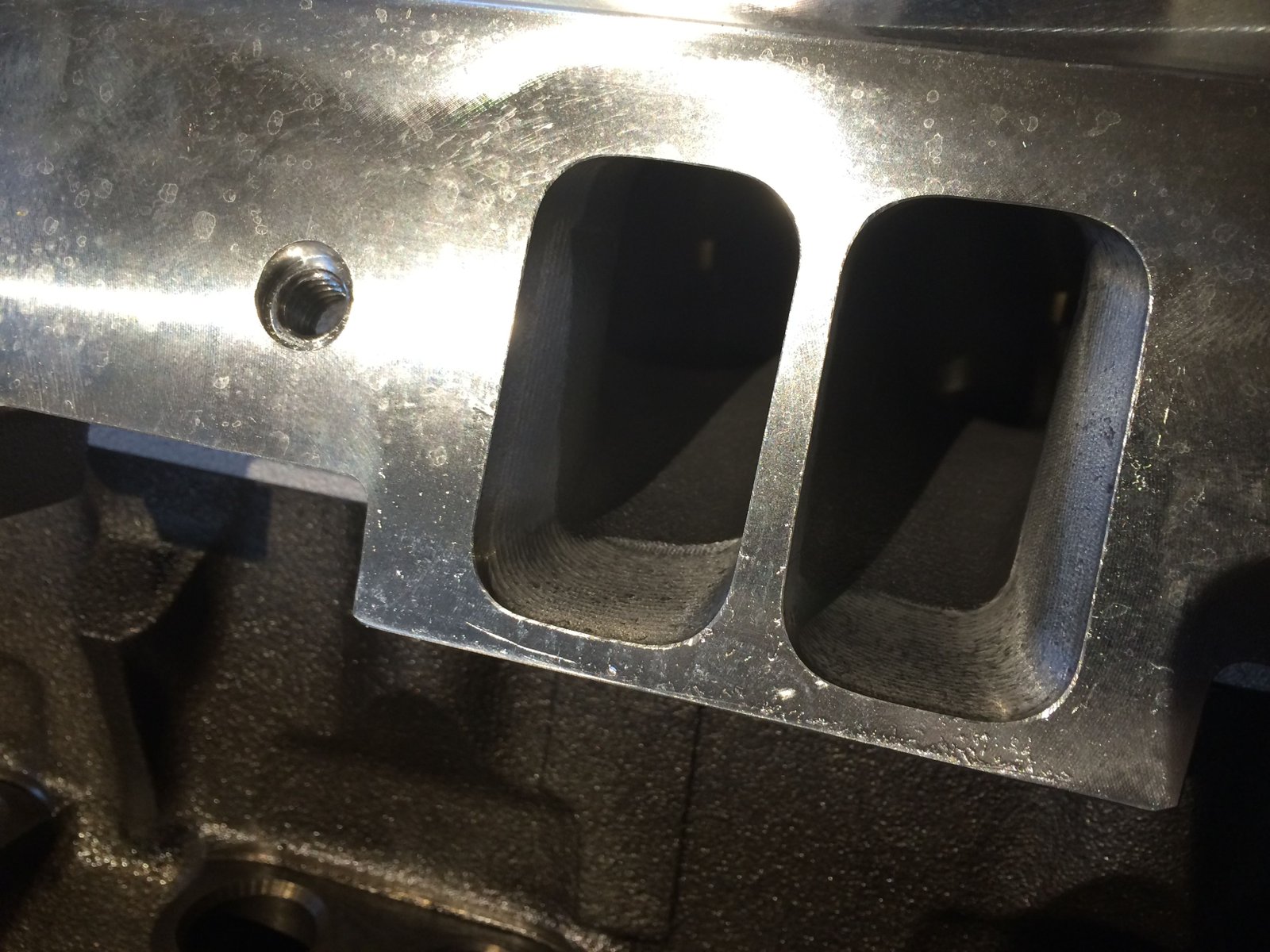

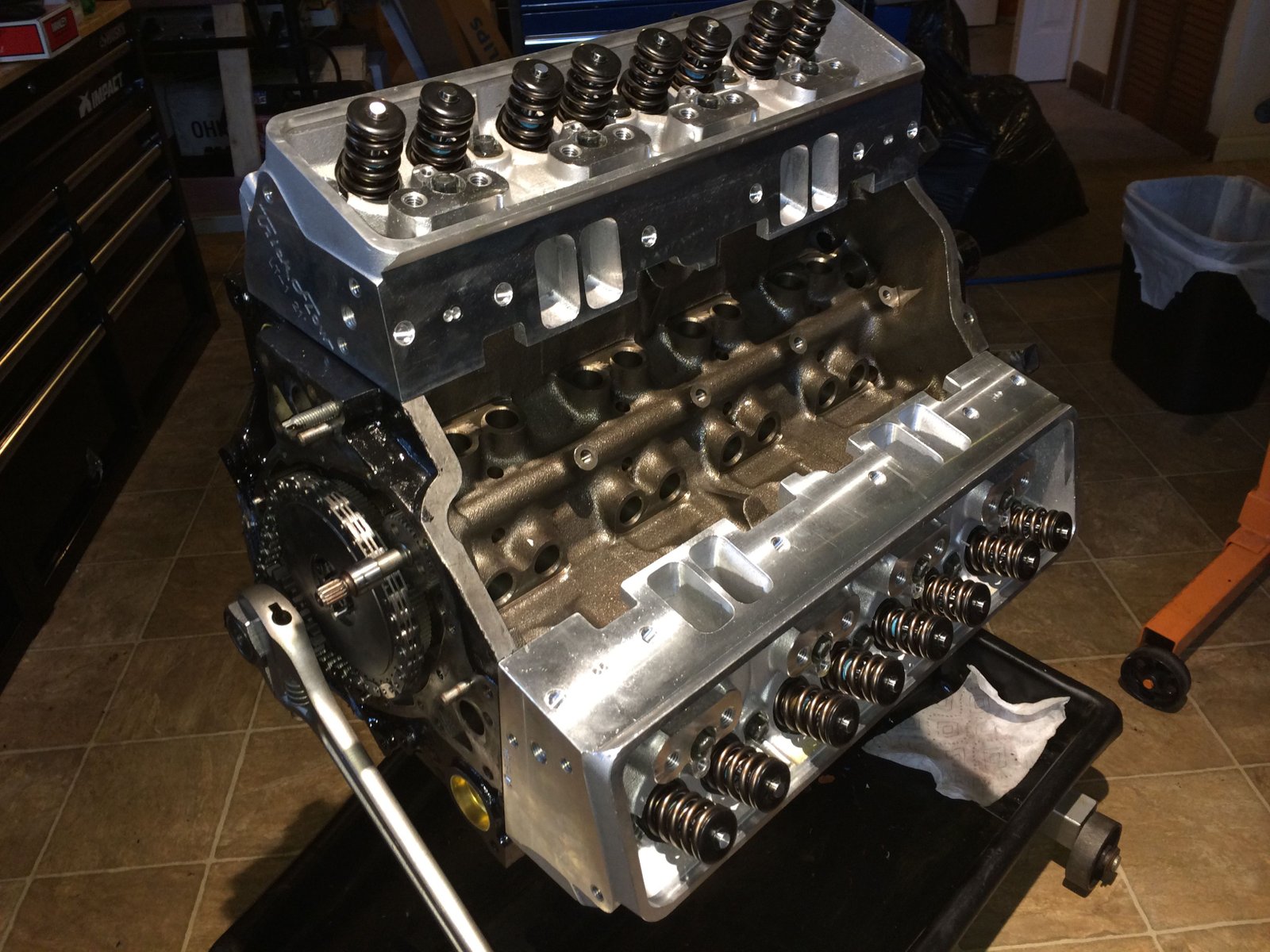

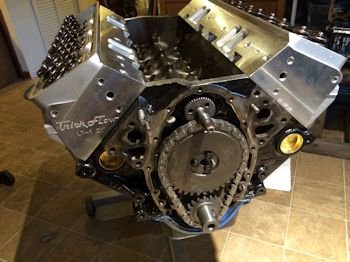

TFS 21deg heads. (no porting).
|
|
|
|
|
|
|
|
|
|
|
