![](4738t.jpg)

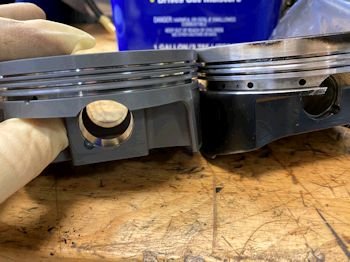

Old pistons had an old-school ring pack (thick and heavy).
New pistons are thin and lite. Mahle #930200630, 1.125 CH,
4.030", 1mm/1mm/2mm ring pack.
|
![](5112t.jpg)

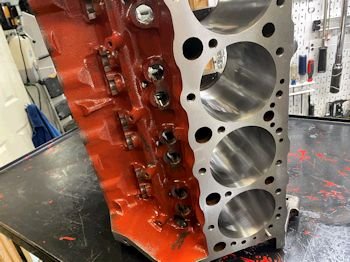

The block was torque plate honed (still at 4.030") by
Johnny Heard of Heard Performance Machine. |
![](5113t.jpg)

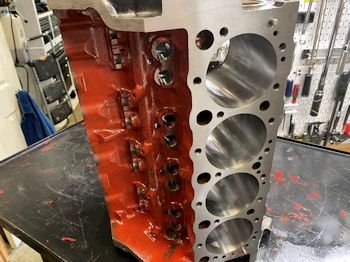

Johnny Heard also square decked it and checked the main line
bore and main caps.
|
![](5114t.jpg)

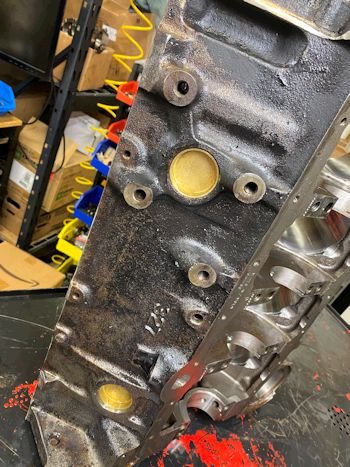

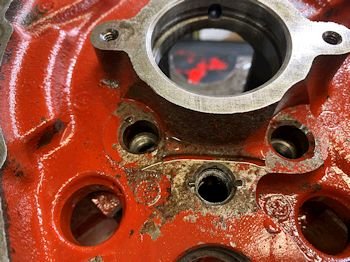

After I received the block from Johnny I tapped the cam and
lifter oil galleys for pipe plugs. |
|
![](5116t.jpg) |
![](5117t.jpg)

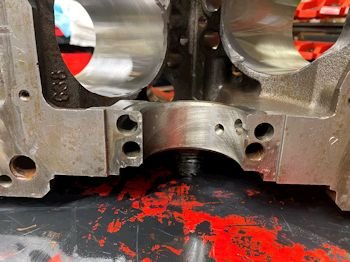

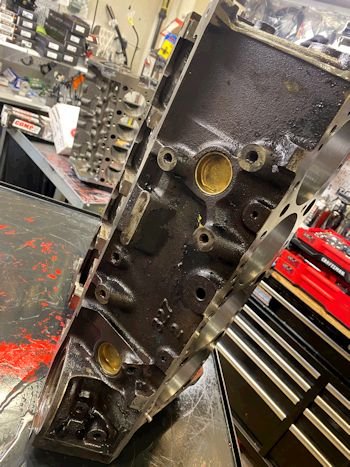

I did a few finishing touches prior to paint and then did a final spray
wash. The main cap oil galley was widened a bit.
|
![](5118t.jpg)

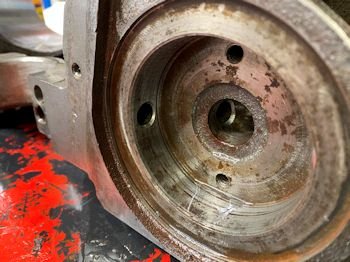

The oil galley openings were massaged a bit. |
|
![](5121t.jpg)

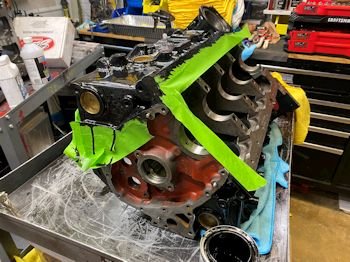

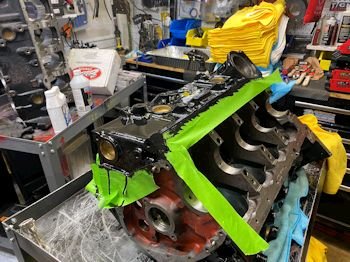

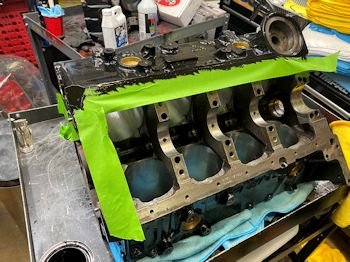

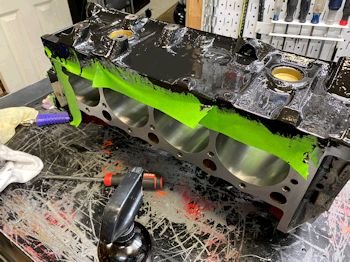

Then I laid on the POR-15 paint real thick. |
|
![](5124t.jpg) |
|
|
