ERE-383 #115 Short Block


ERE-383 #115 Short Block
2-Piece Rear Crankshaft into 1-Piece Rear LT1 Block

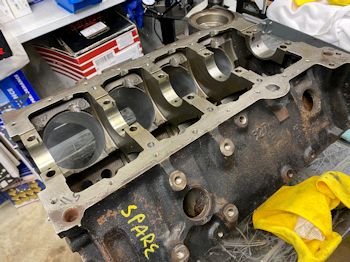

Raw and dirty block

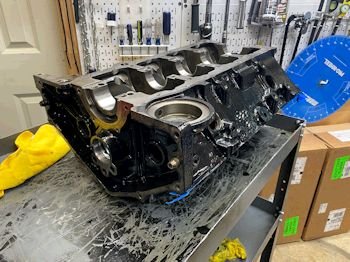

Cleaned and 1/2 way painted

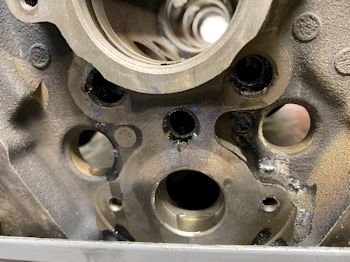

Prior to cleaning and painting I will tap threads for oil galley plugs.

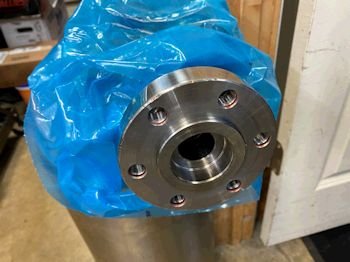

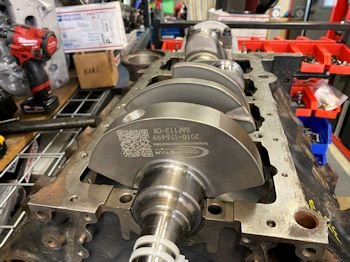

This is the Callies Compstar 2-Piece Rear Main crankshaft.  3.75" stroke.

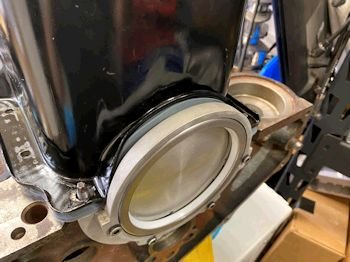

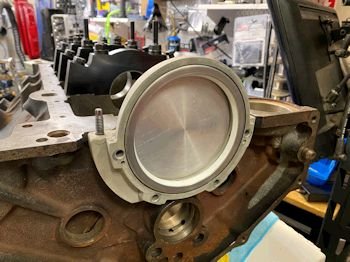

Owner built adapter for 2-piece seal crank to use a 1-piece seal.  This is a big seal but it looks like a good fit and it will work.  I'm confident.

That is the mandrel jig set in the main cap area to align the seal housing.

This is a sleeve that goes over the rear of the crankshaft.
