Parts detail

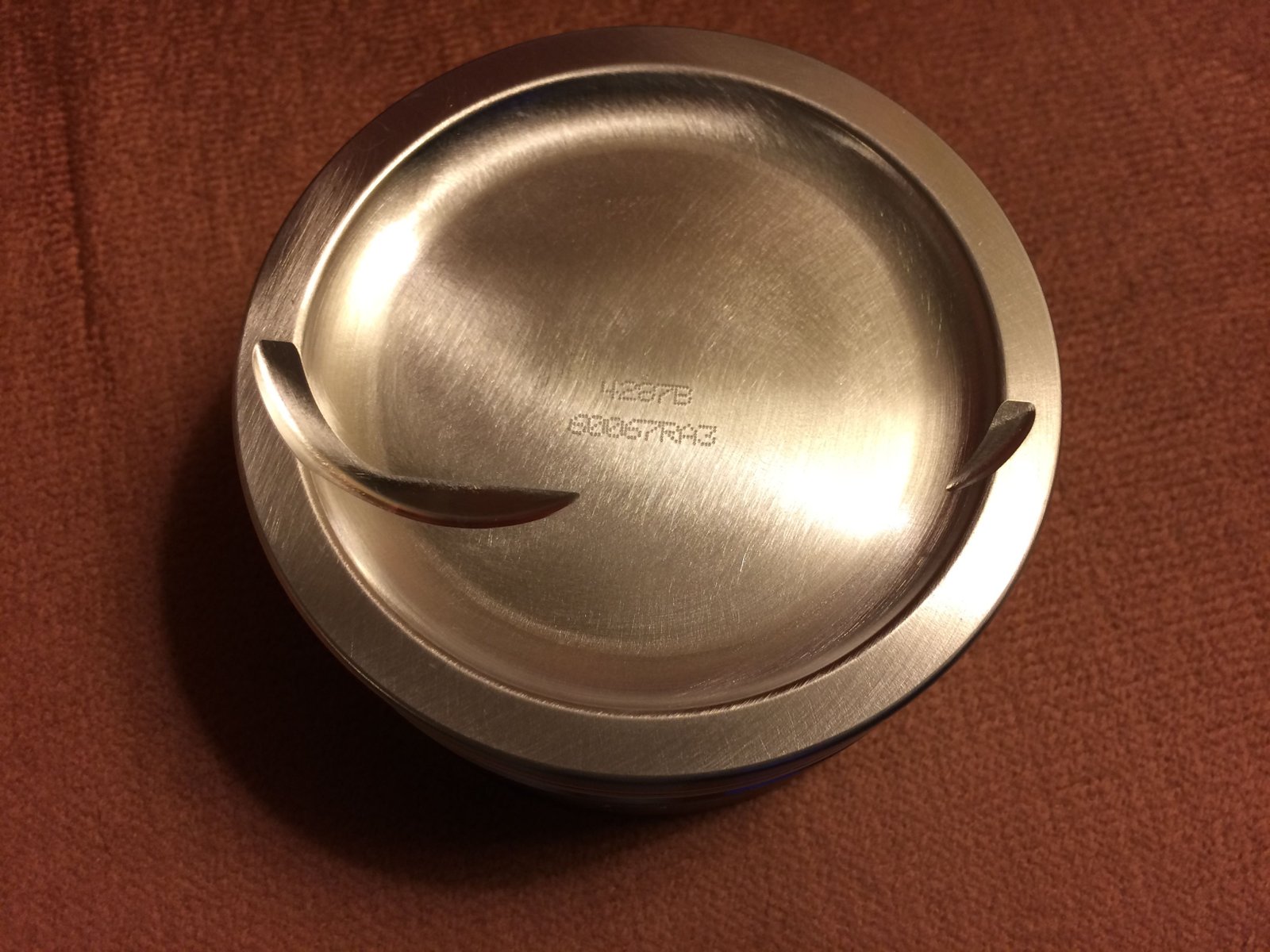

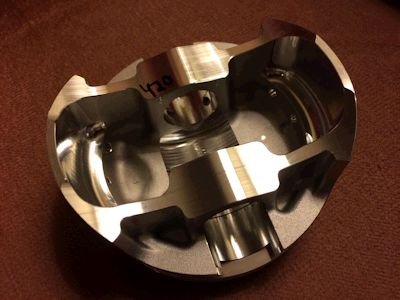

Piston: Wiseco Forged
Full Dish -29cc part #K0067A3, 1.125" CH, top ring is
.300" down (or appropriate piston if 5.85" rod is
used).
Rings: Total Seal CSL3690-35 chrome nitride steel top ring,
1/16", 1/16", 3/16" file fit.
Rods: Callies Compstar 6" or 5.85" 4340 H-beam (or
I-beam)
Crankshaft: SCAT or Eagle 4340 Forged
Bearings: Clevite H series
Block: GM core LT1 with Milodon or ProGram splayed center mains and Milodon/ARP
main studs. Block is usually decked to about 9.010",
Bored/honed to 4.030", Painted with POR-15 engine paint
$3000 deposit required to start the project, $1000
more required mid-way, remainder due upon
delivery
Send me your heads and cam and I'll install them for an
additional $500 labor.
Suggested upgrade:
Callies custom Magnum crankshaft: +$3000
Callies Ultra I-beam rods: +$2000
|
|
