![](ere39a0001tn.jpg)

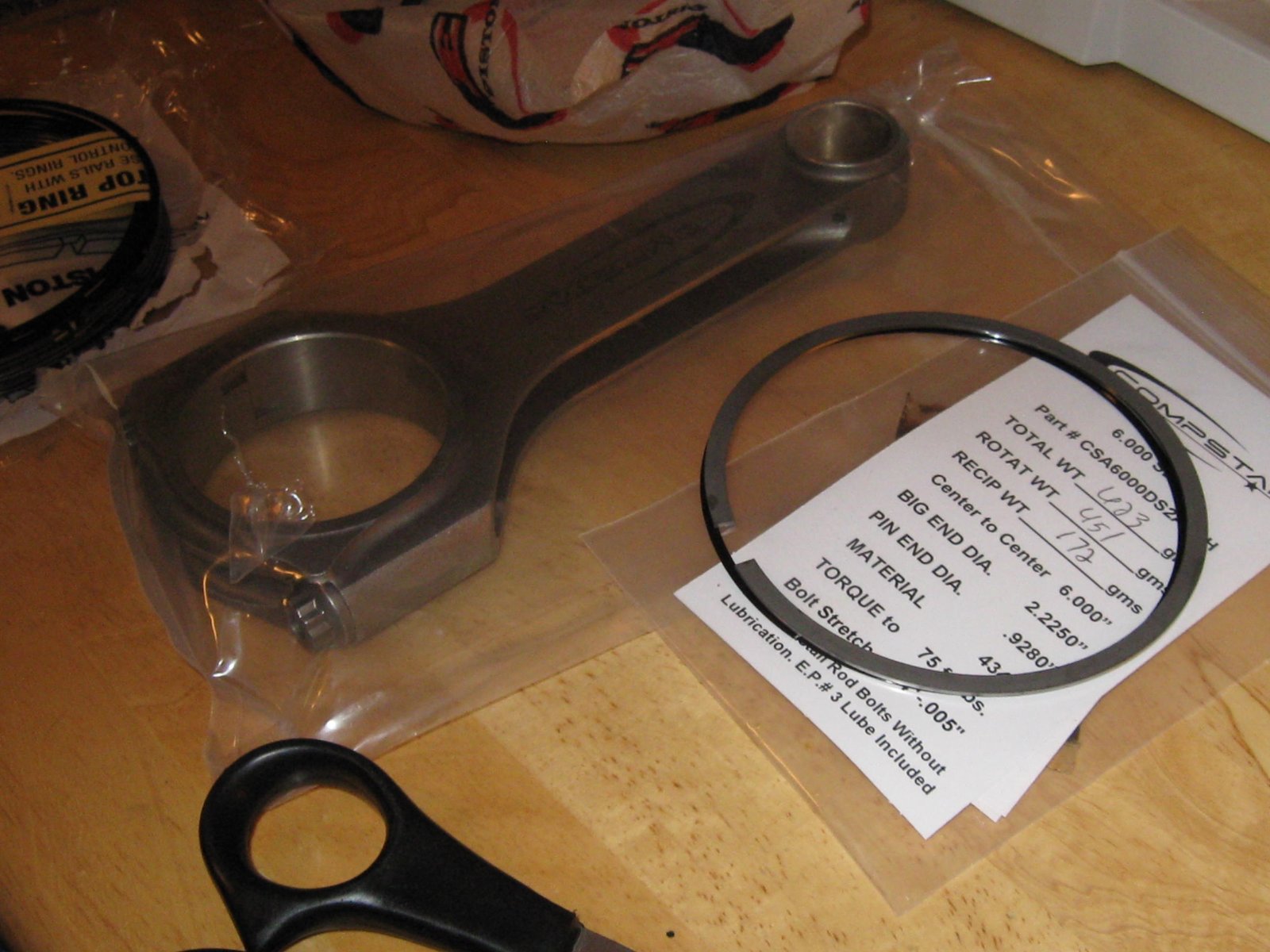

Compstar rod and Total Seal top ring, (gapless).
|
![](ere39a001tn.jpg)

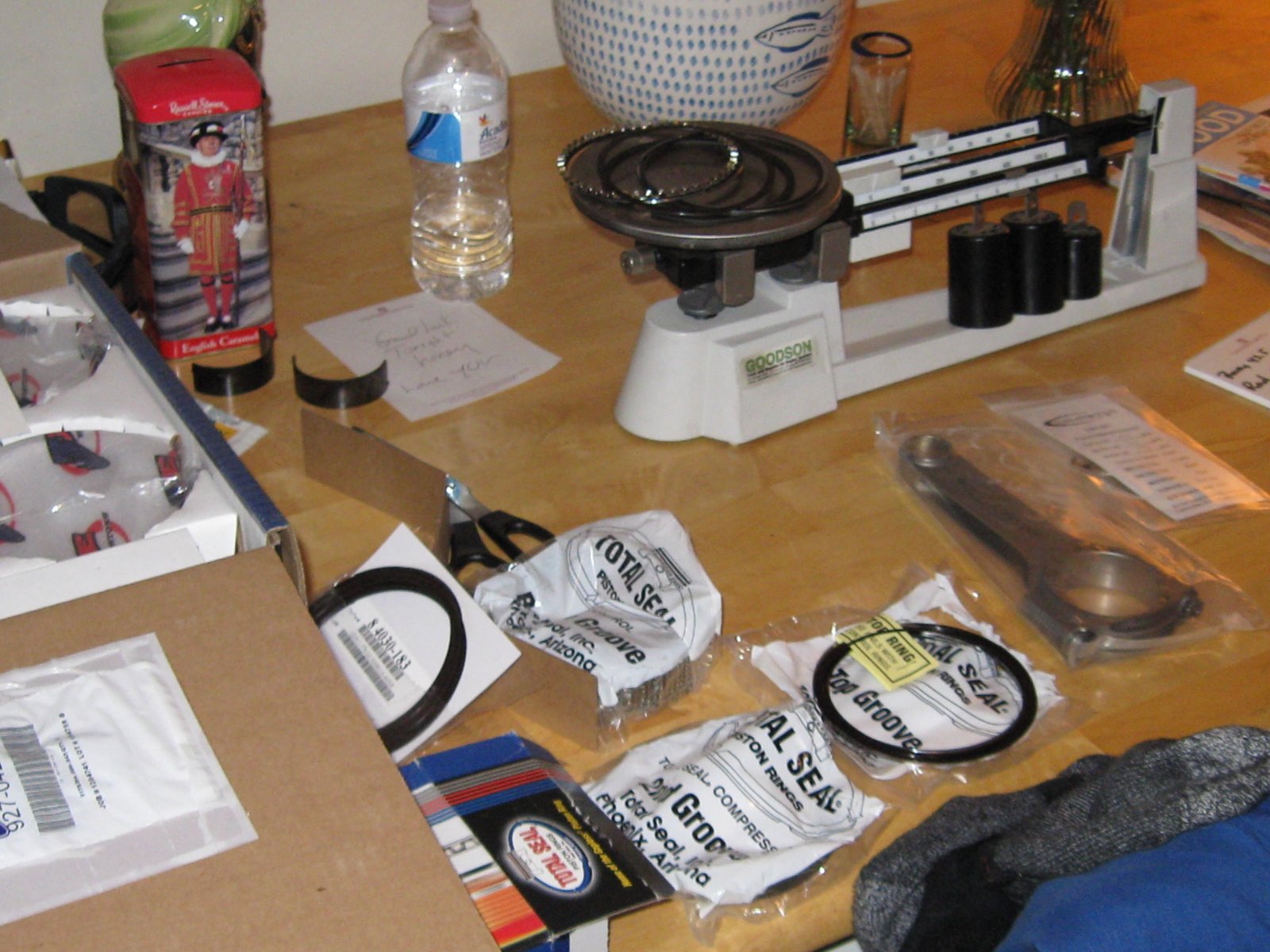

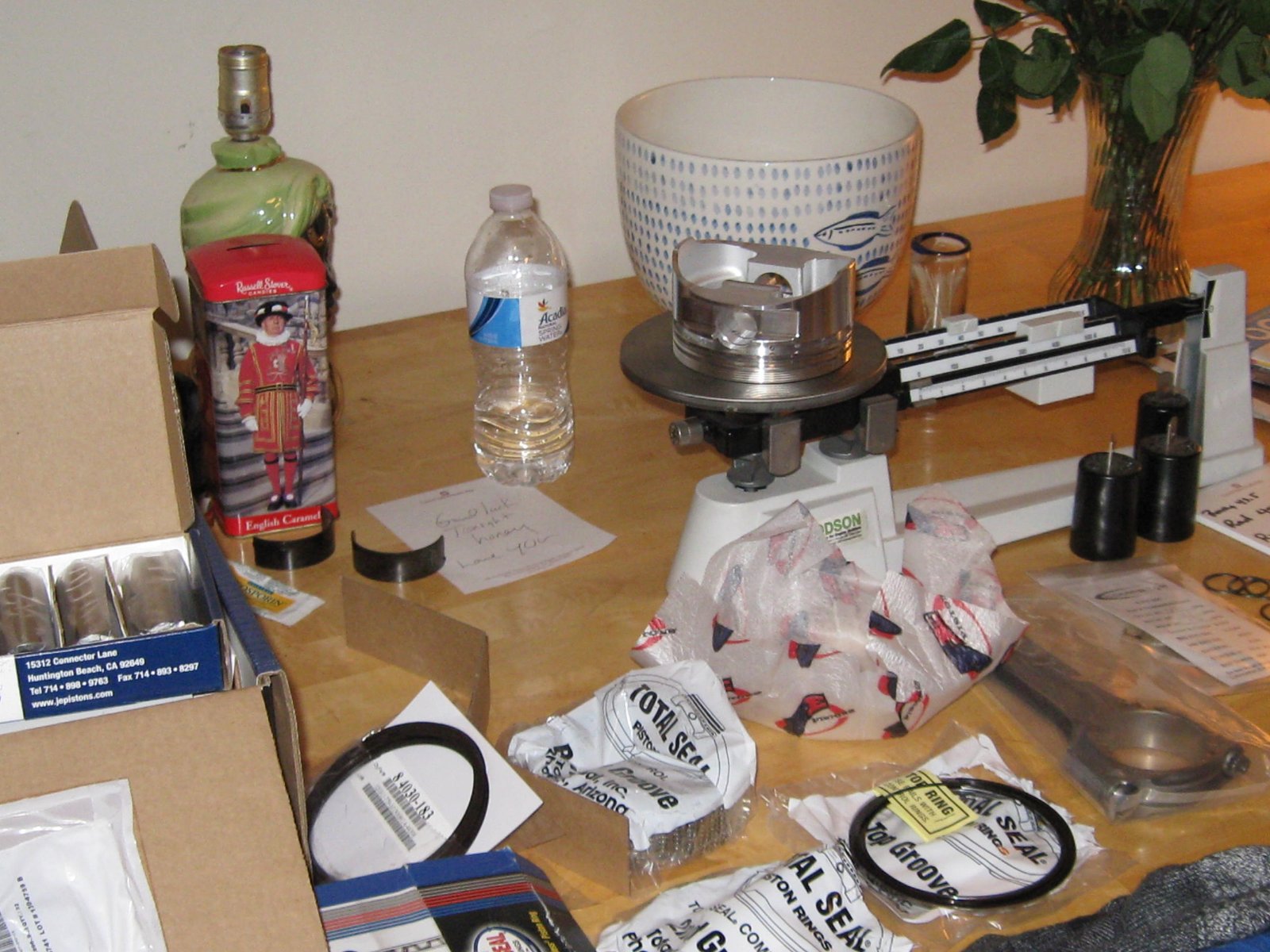

weighing all of the rotating and reciprocating parts.
|
![](ere39a001atn.jpg)
Crank to be balanced on these measurements...
|
![](ere39a01atn.jpg)

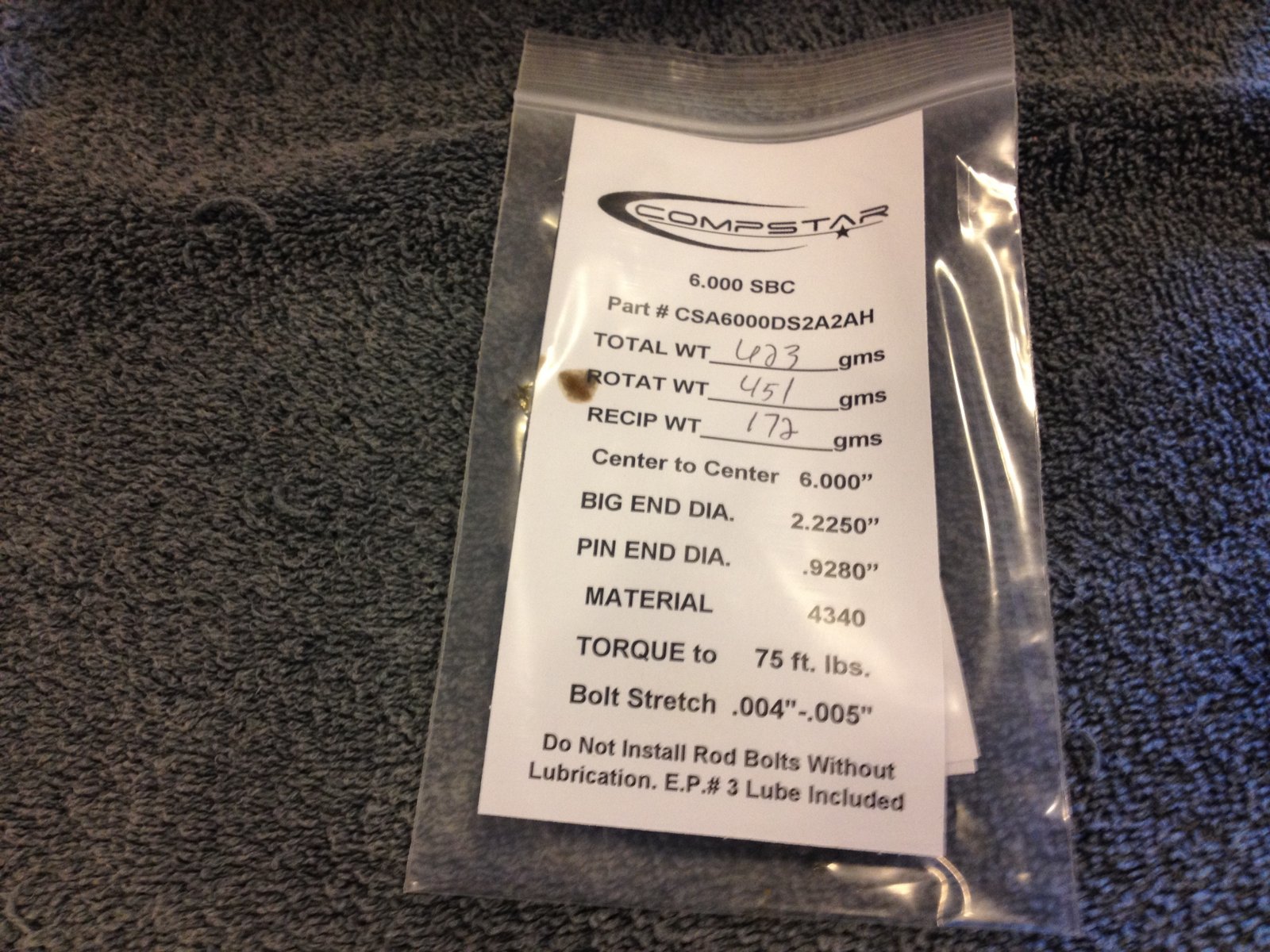

Rod bolt torque and stretch spec.
|

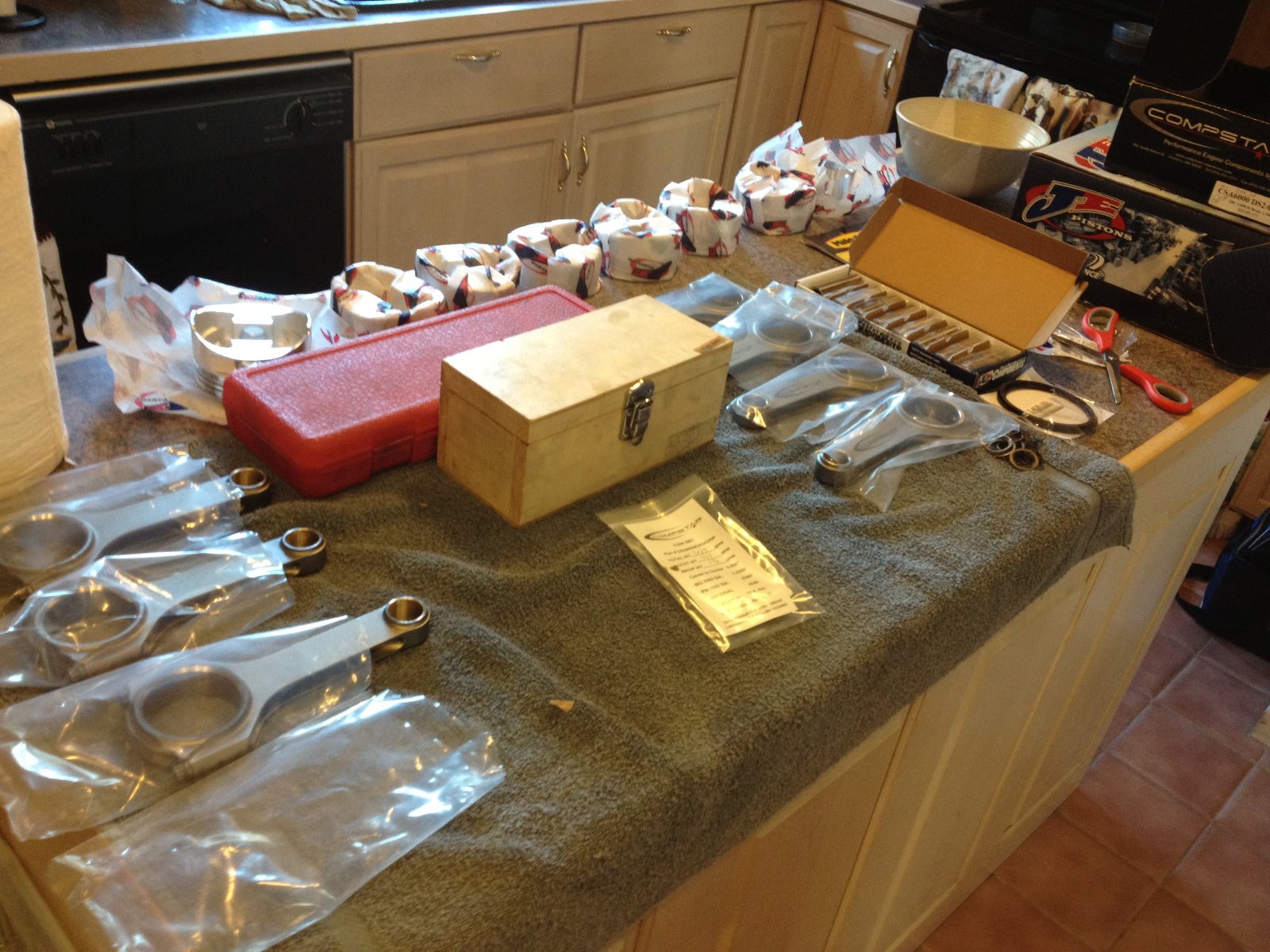

![](ere39a01tn.jpg)
Assembly of pistons to rods.
|
![](ere39a1tn.jpg)

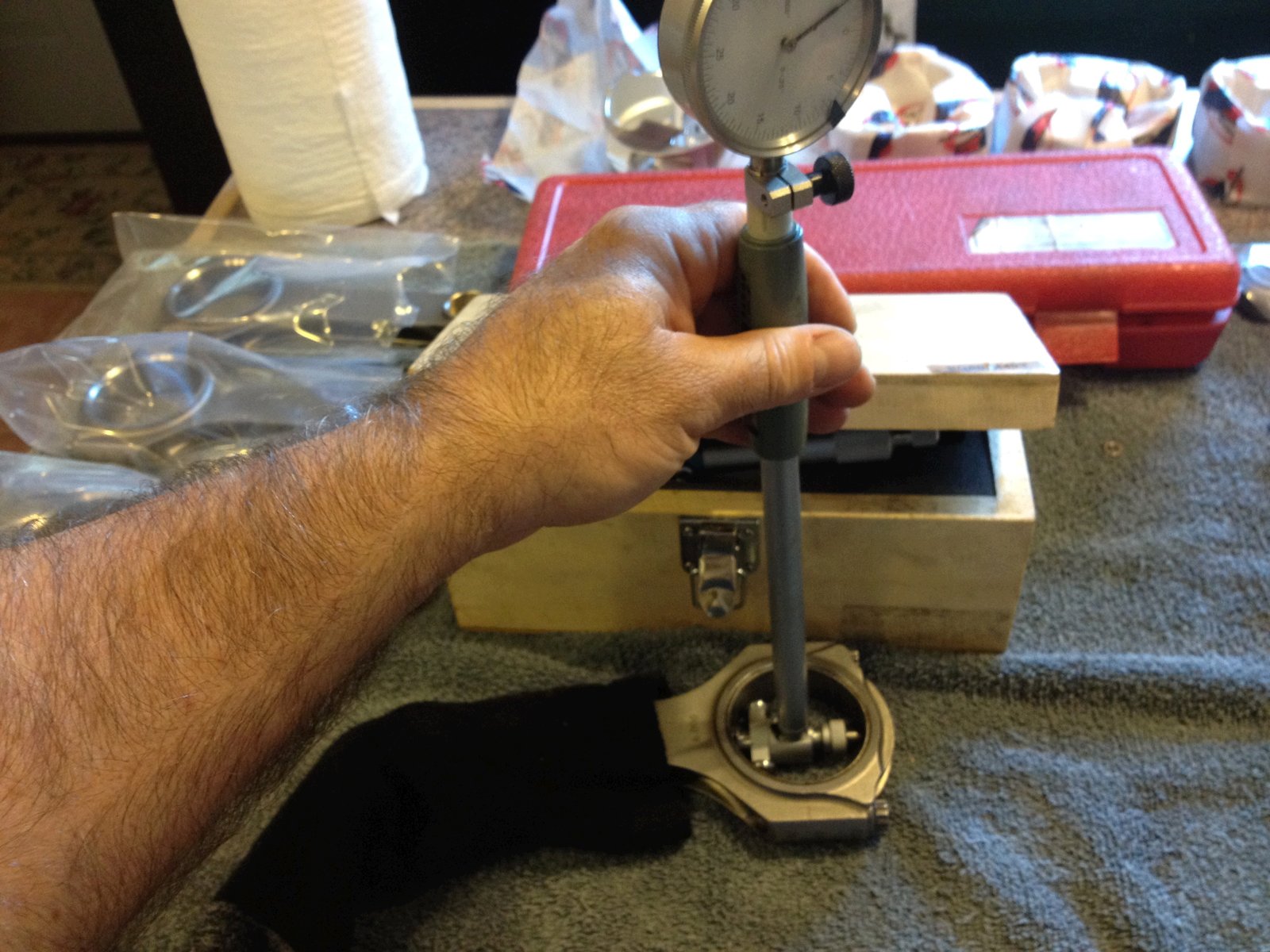

Rod bearing clearance check, Clevite HN series bearing installed and
bolt stretched to .005"
|
![](ere39a2tn.jpg)

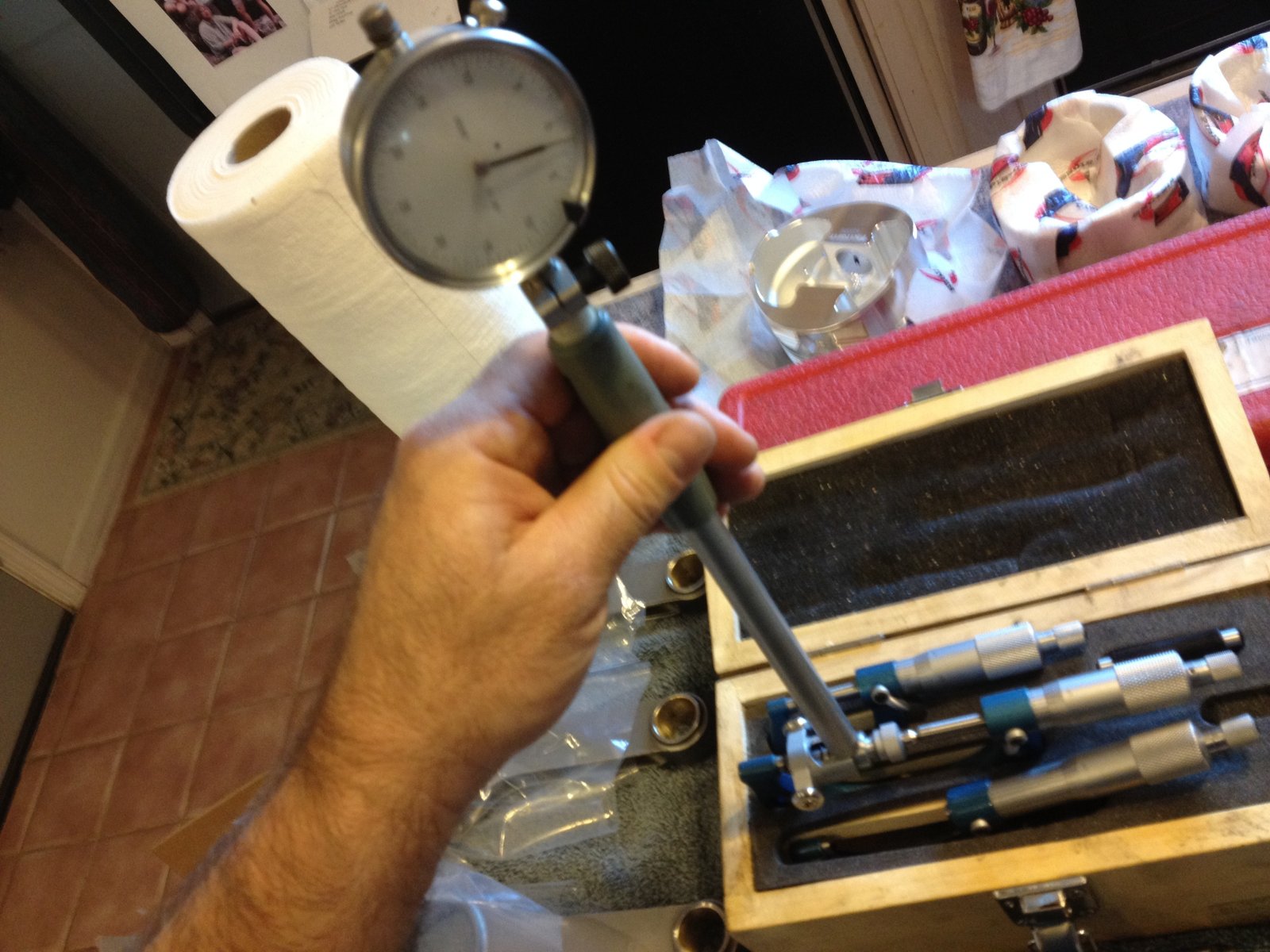

Crank mic'ed and measured .0023" to .0025" rod bearing
clearance.
|
![](ere39a3tn.jpg)
|
![](ere39a4tn.jpg)

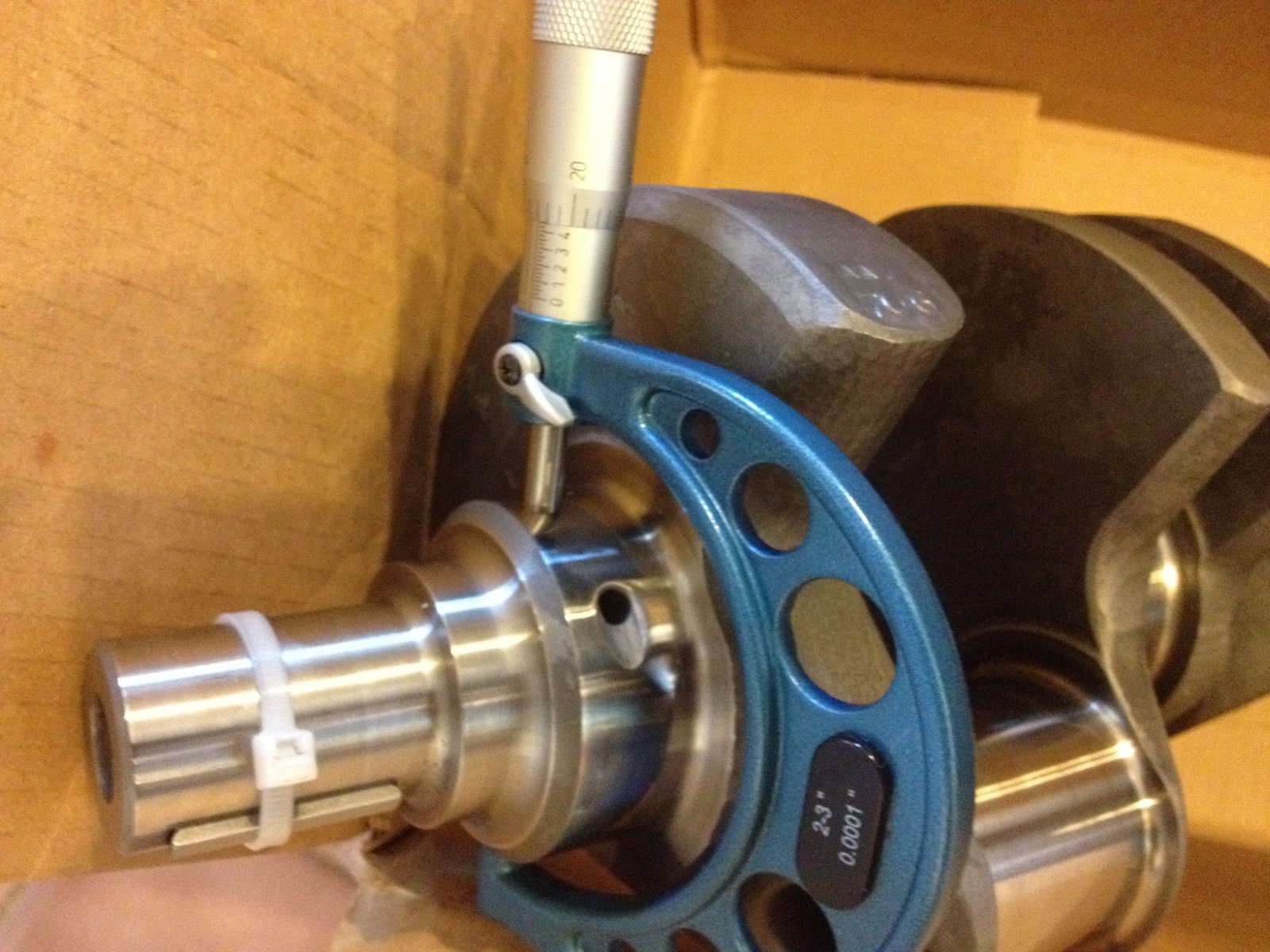

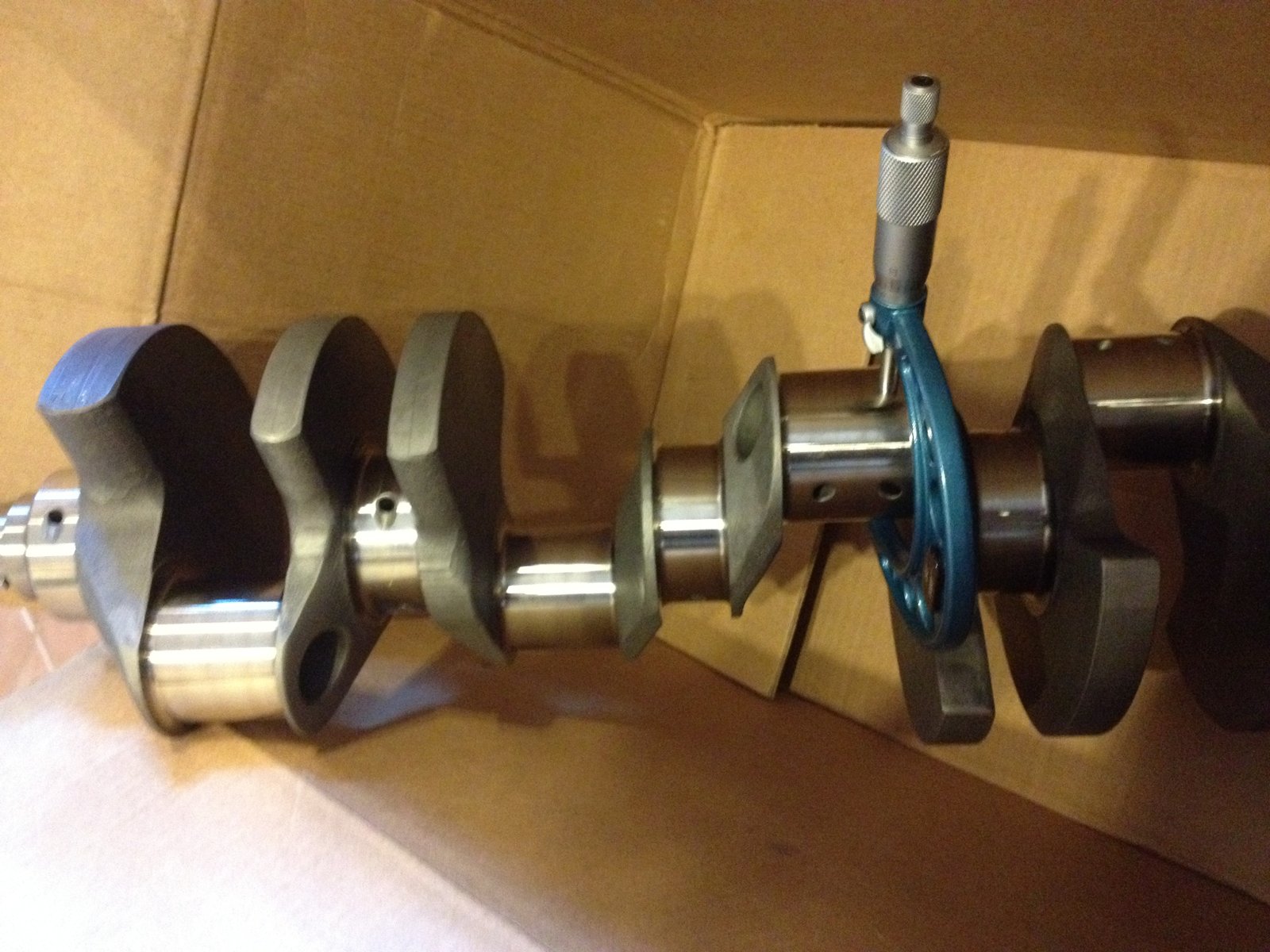

Main journal of Callies Dragonslayer crankshaft mic'ed,
(2.448")
|
![](ere39a4atn.jpg)
|
![](ere39a5tn.jpg)

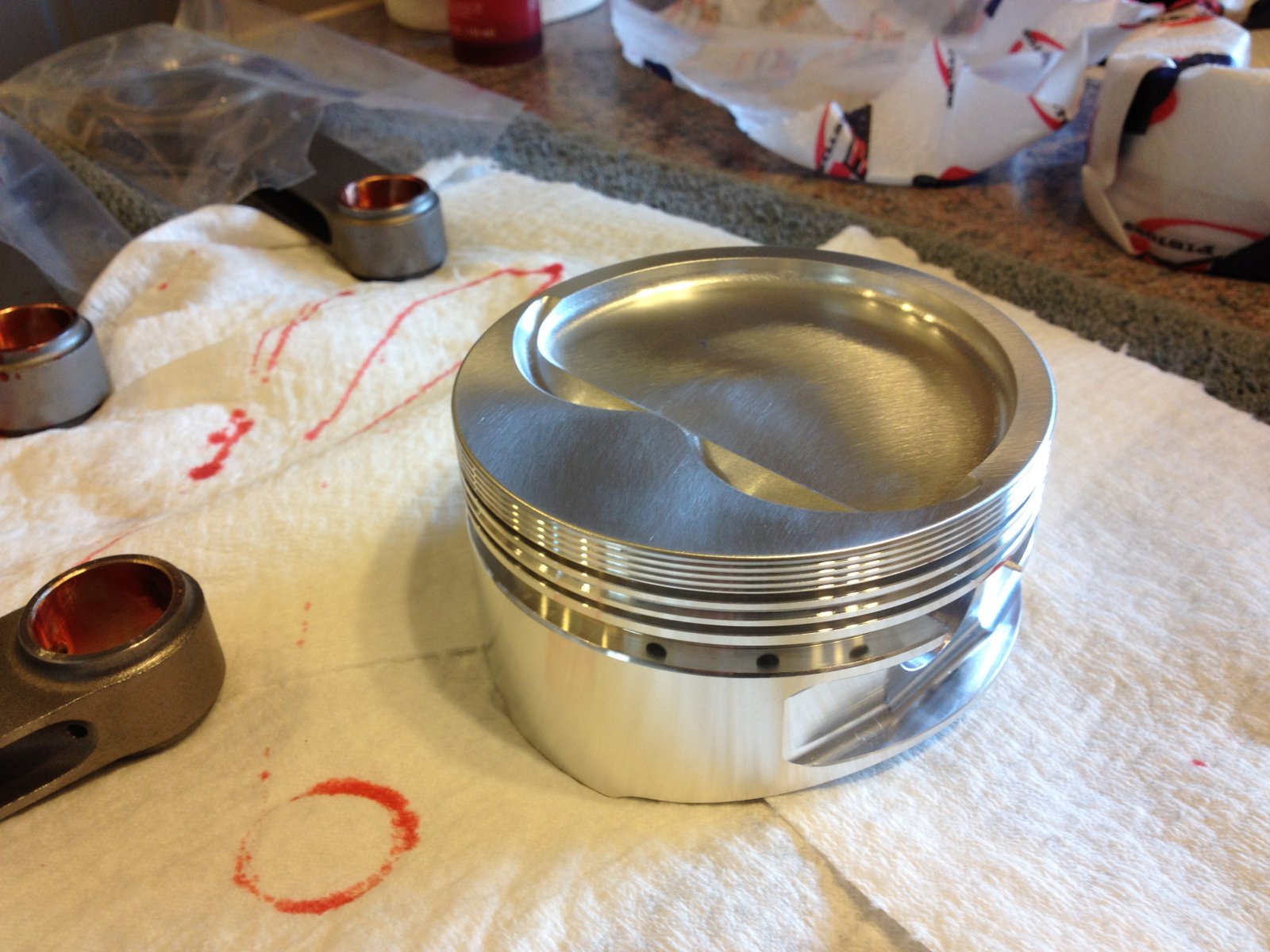

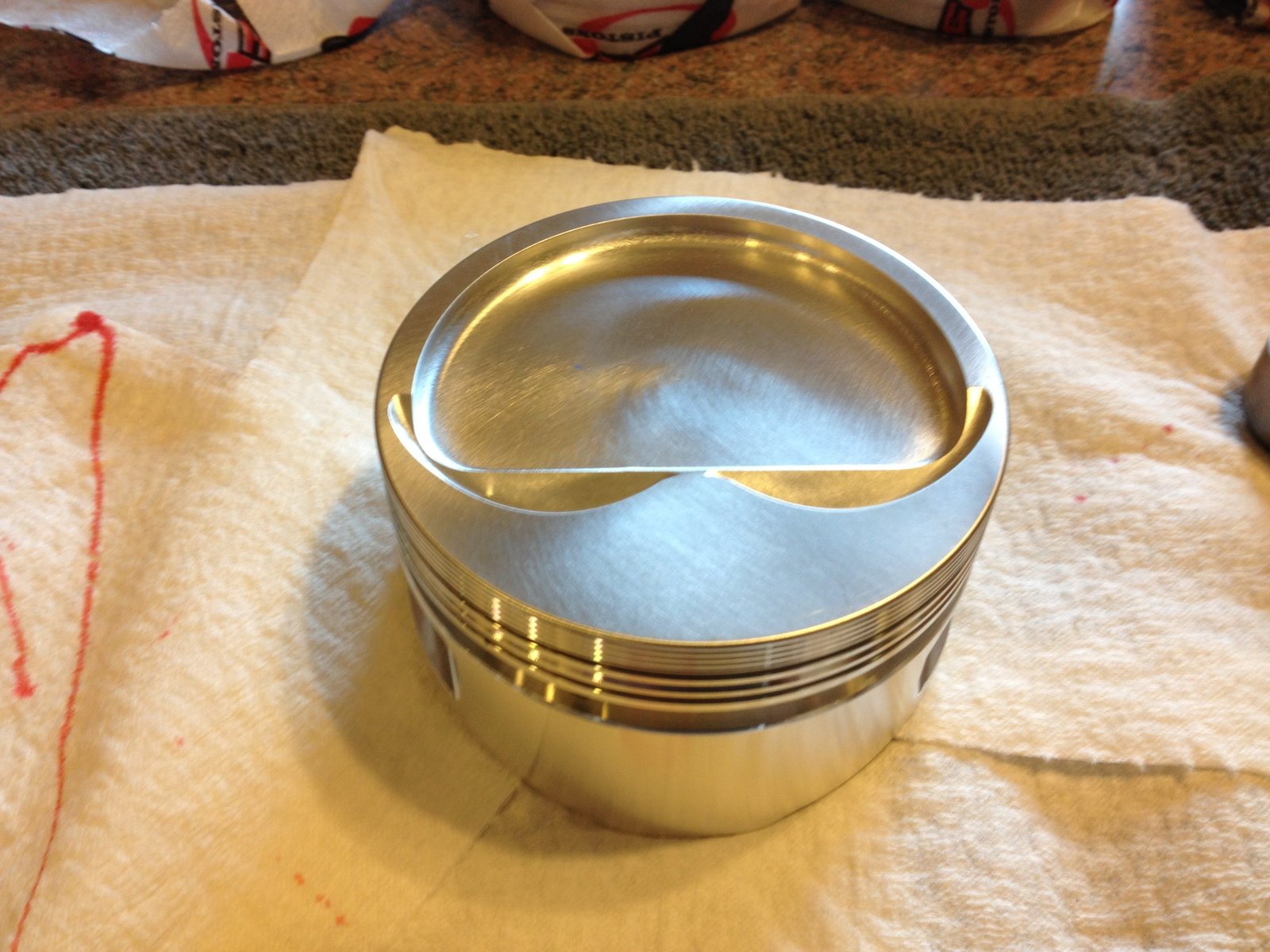

JE Turbo piston, 31cc D-dish
|
![](ere39a6tn.jpg)
Full skirt for stability
|
![](ere39a7tn.jpg)

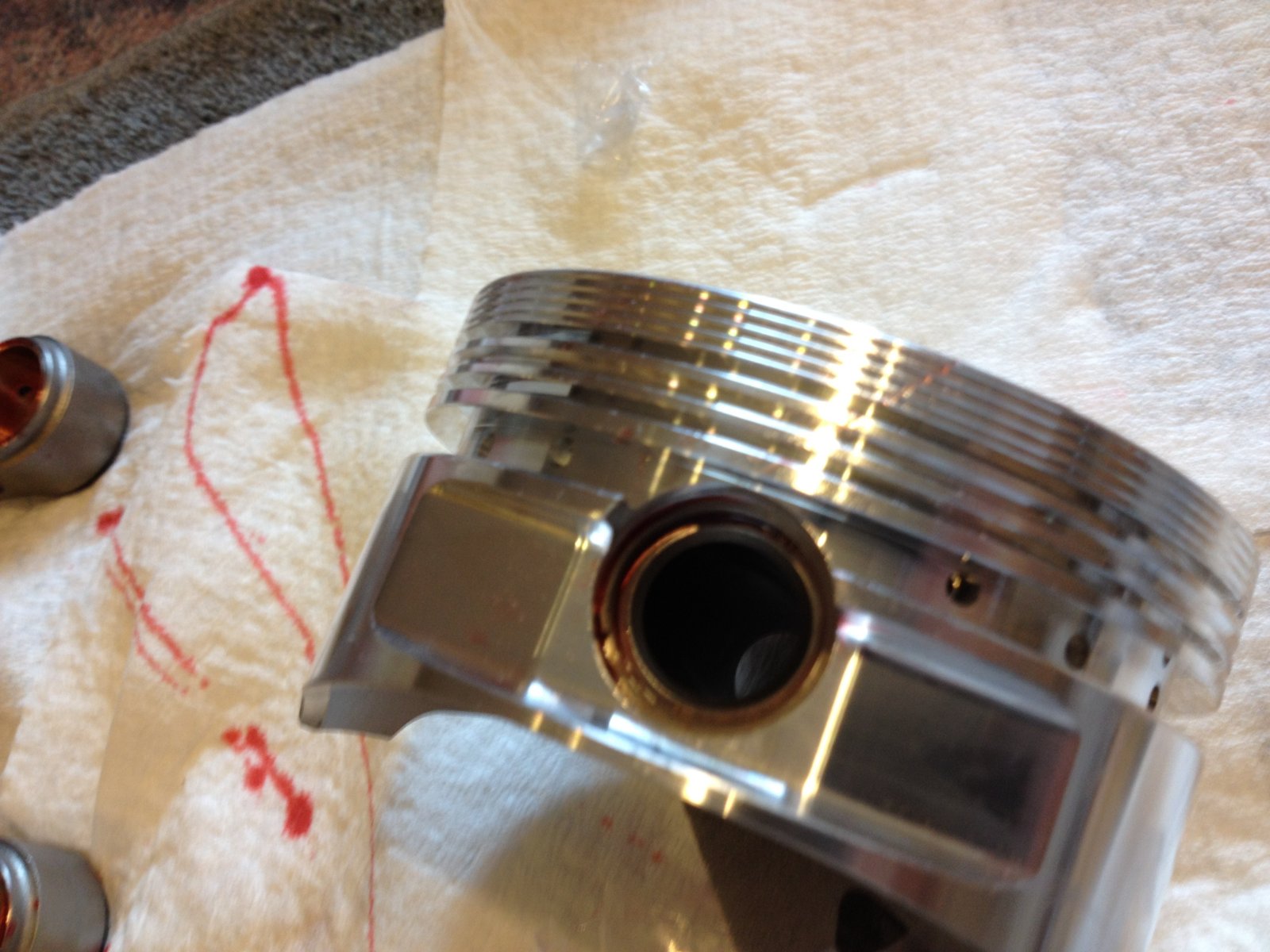

Spiro locks installed.
|
http://youtu.be/24fs9EnTDls |
![](b1tn.jpg)

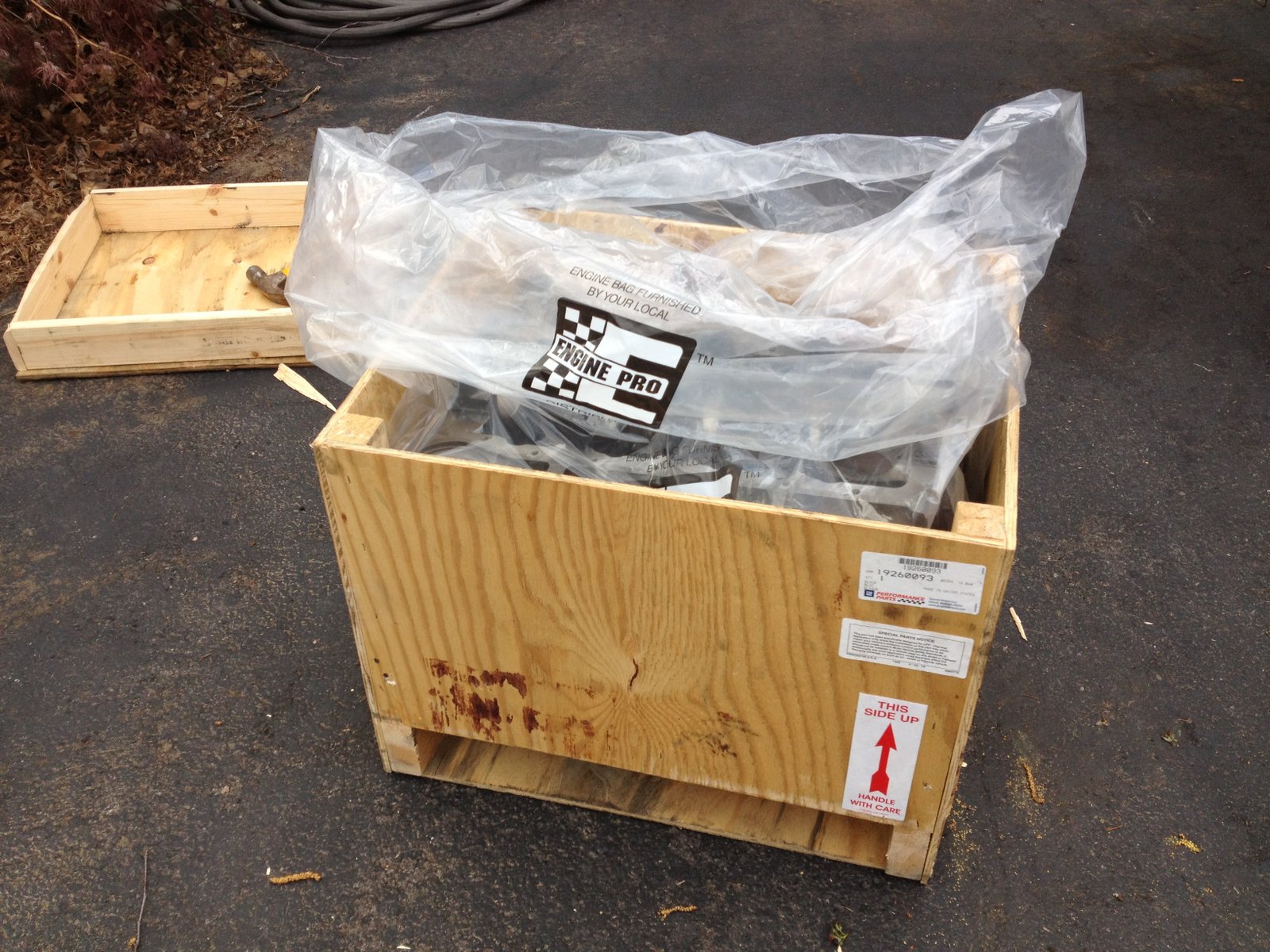

Block arrives from Golen
|
![](b2tn.jpg)

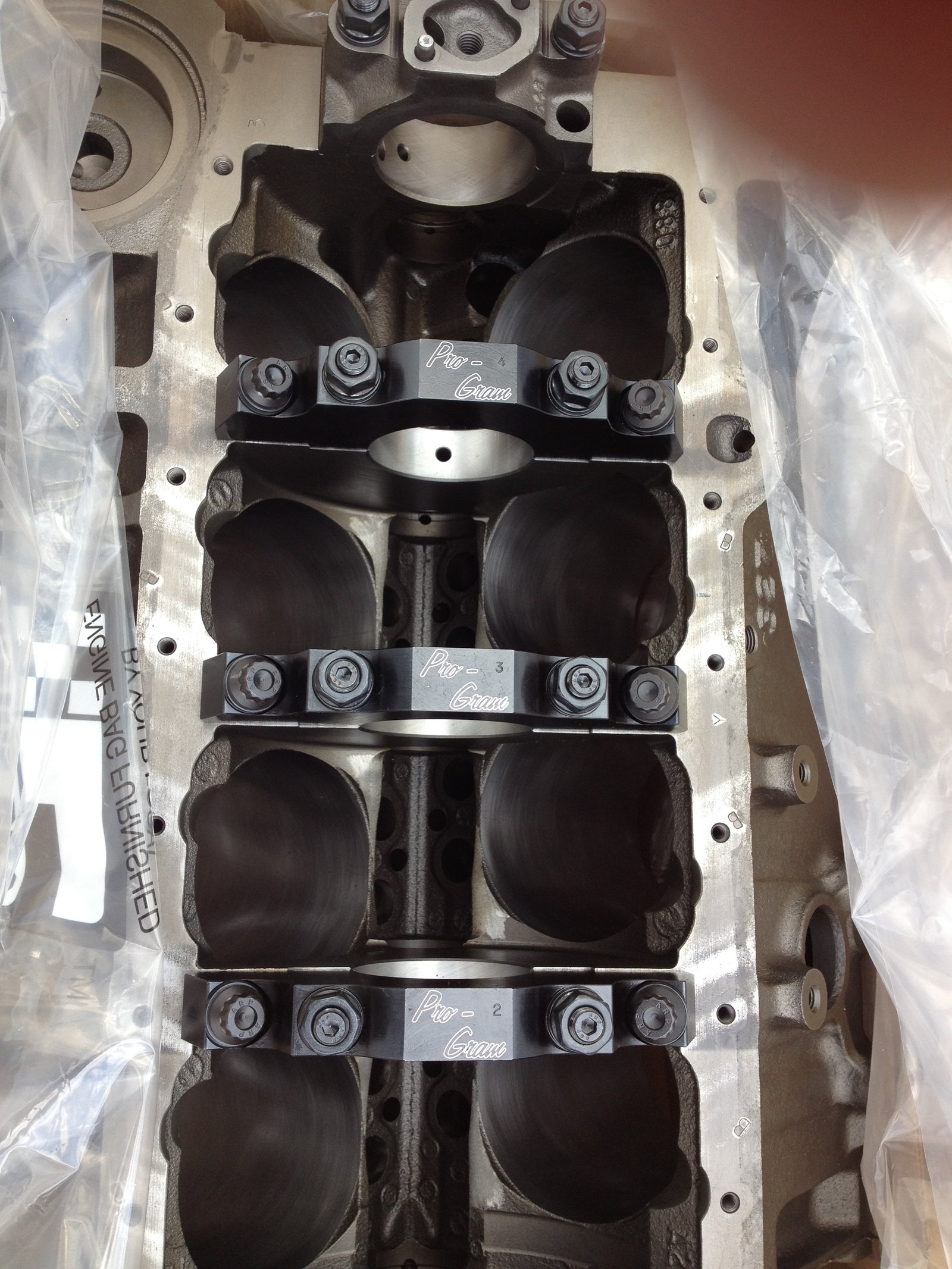

No damage. Nice steel main caps and ARP studs.
|

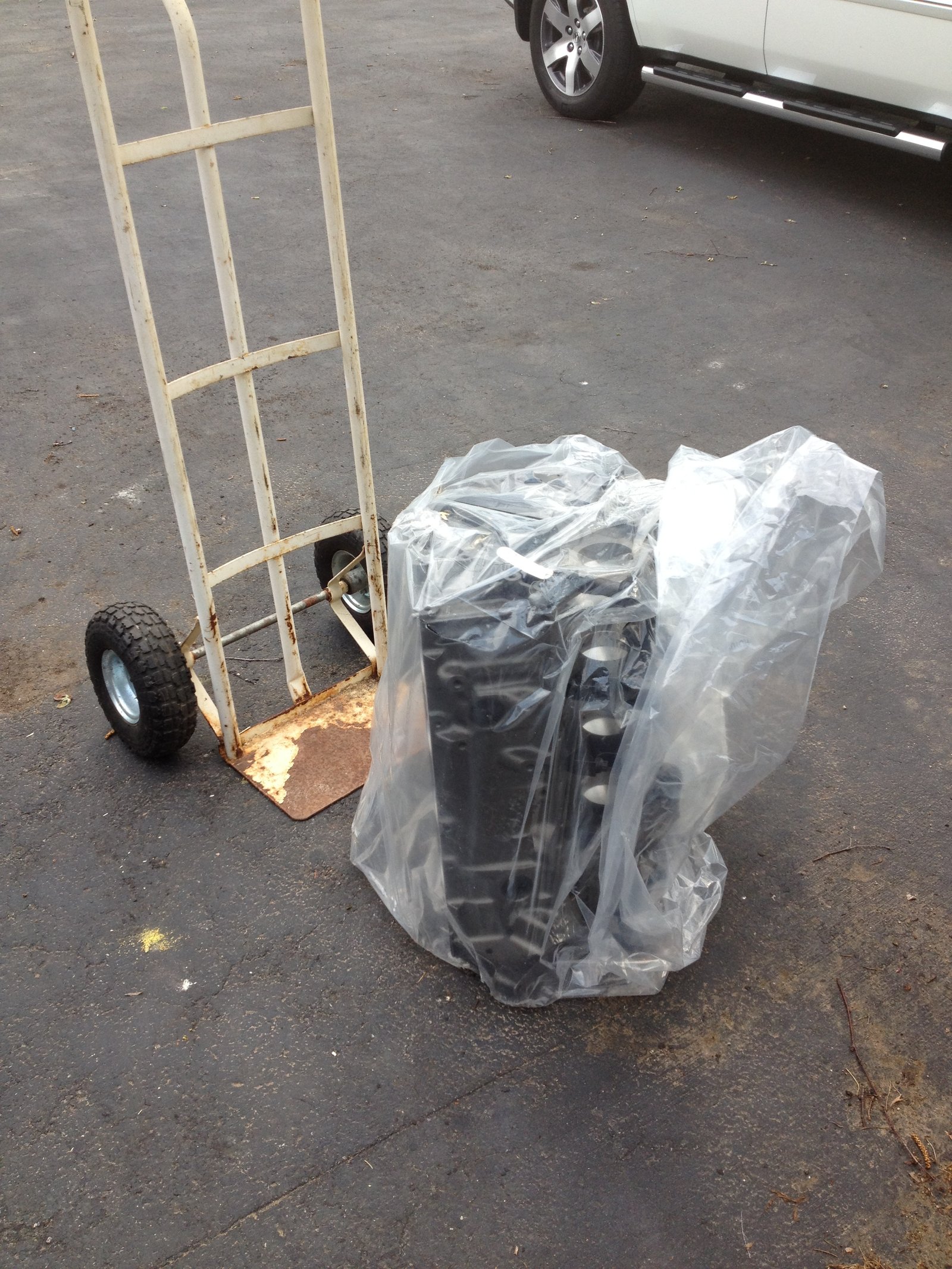

![](b3tn.jpg)
|
![](b4tn.jpg)

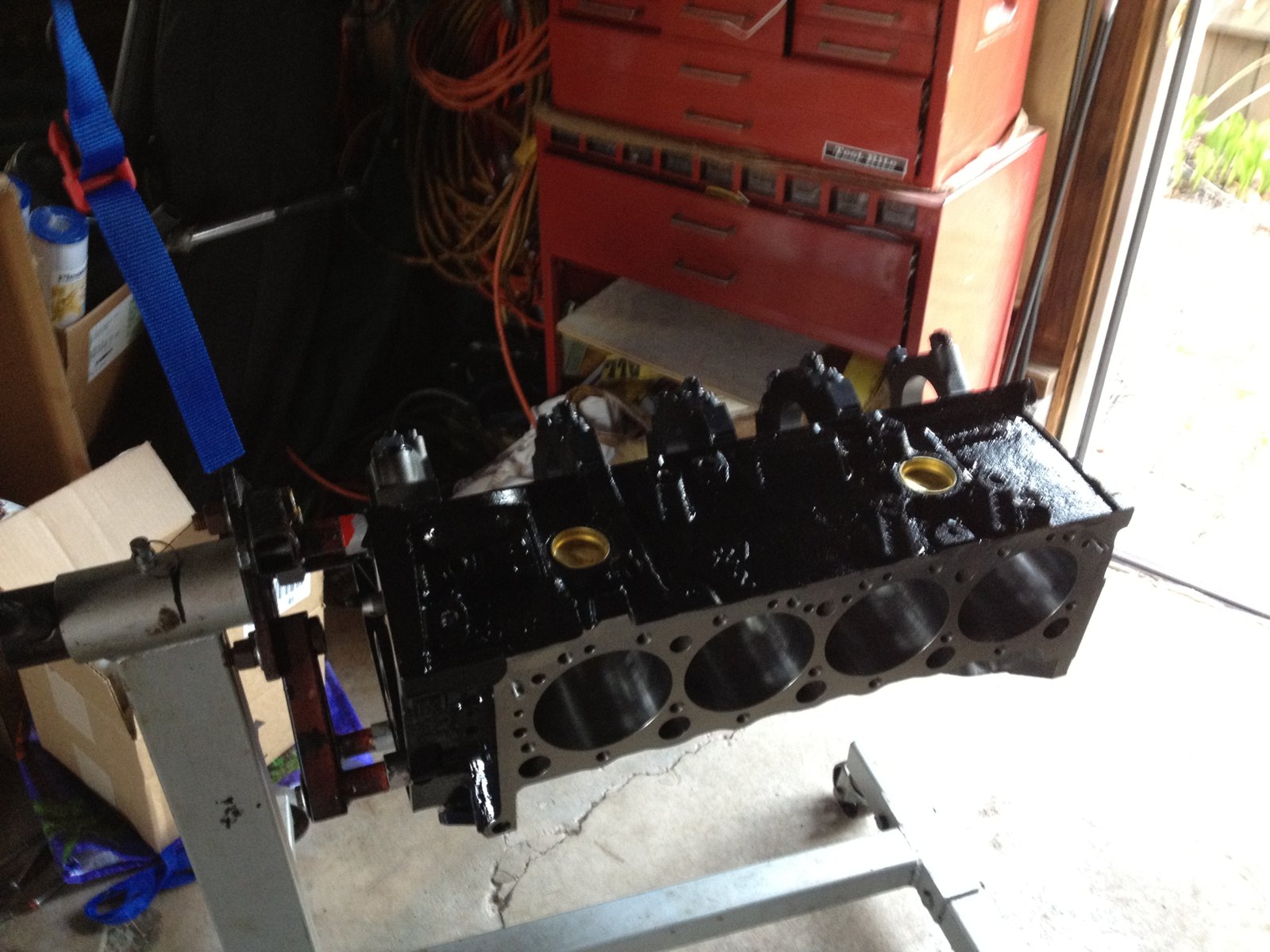

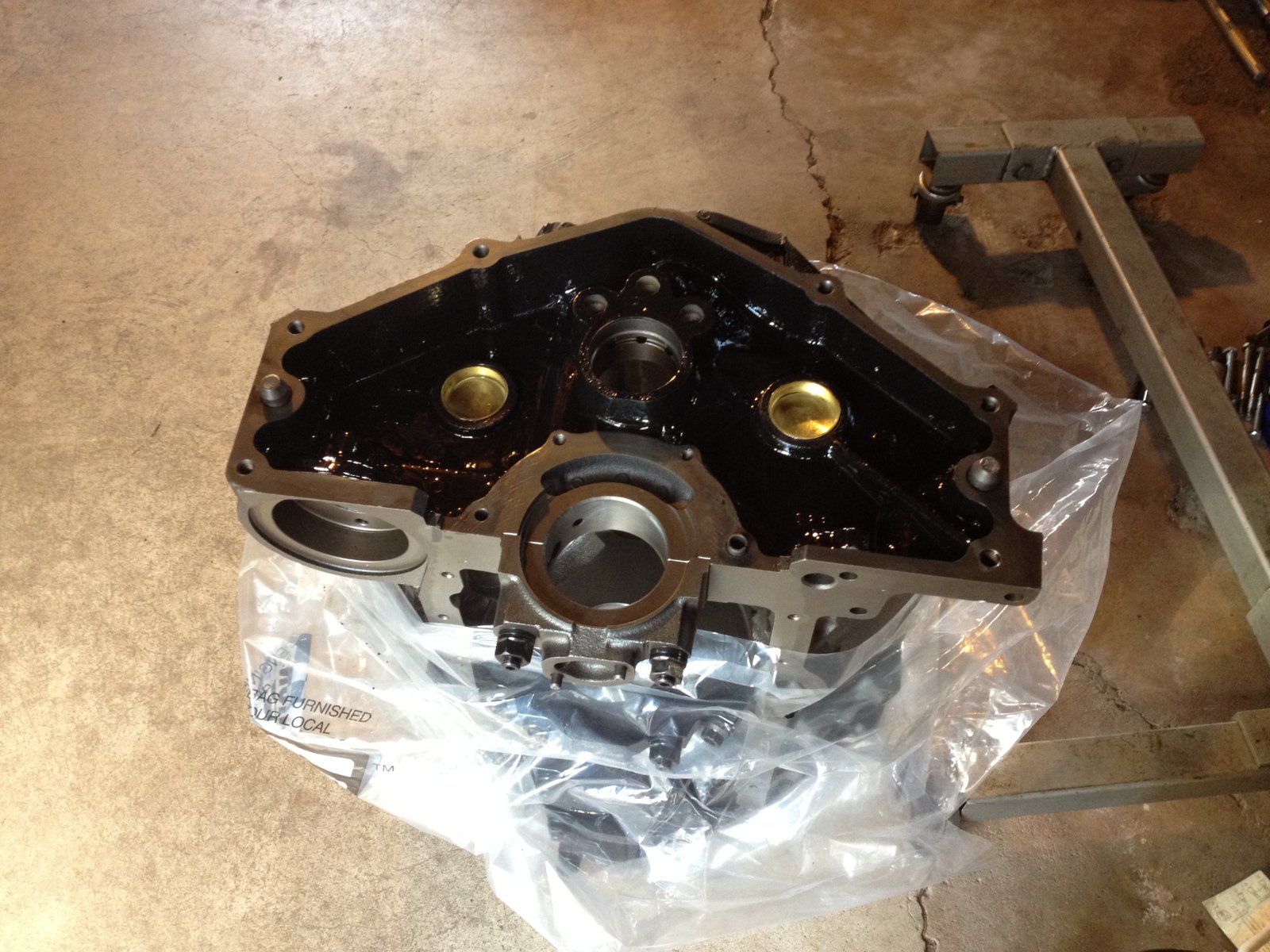

I get busy and clean and paint with POR-15 and install freeze plugs
|
![](b8tn.jpg)
|
![](xtn.jpg)

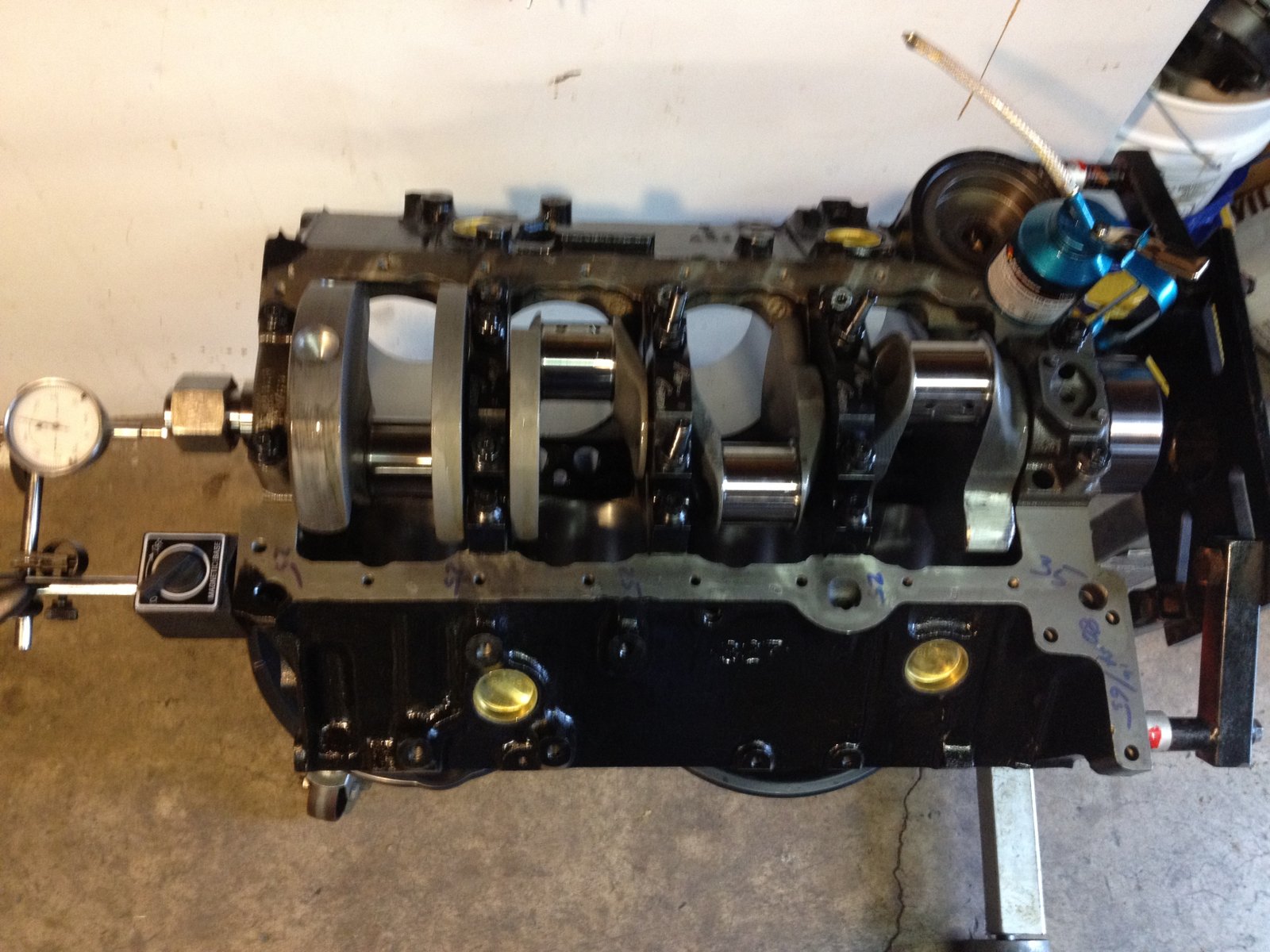

Crank thrust is .008"
|
![](x1tn.jpg)

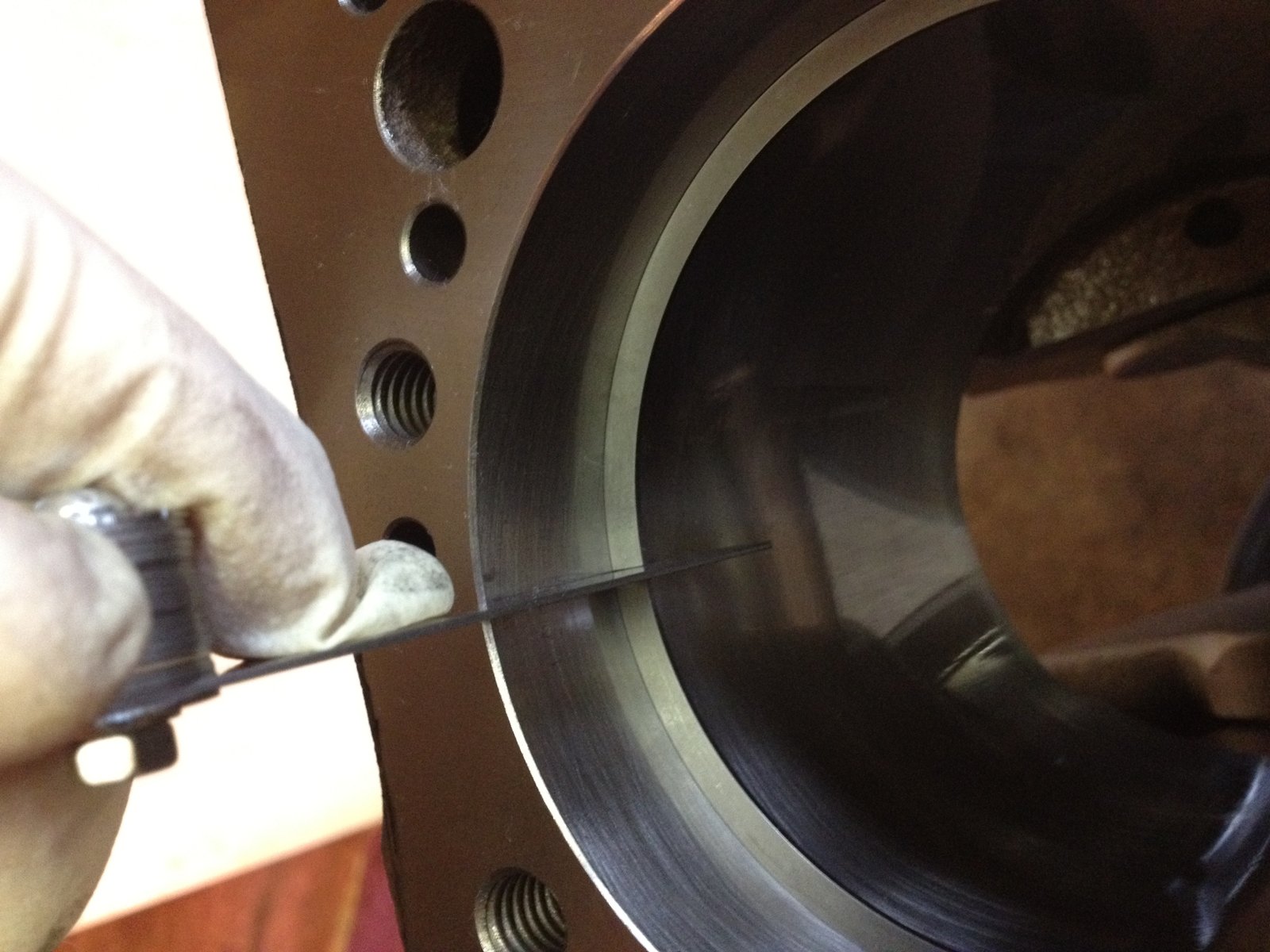

Rings at .036" top and .032" 2nd ring as per Total Seal
|

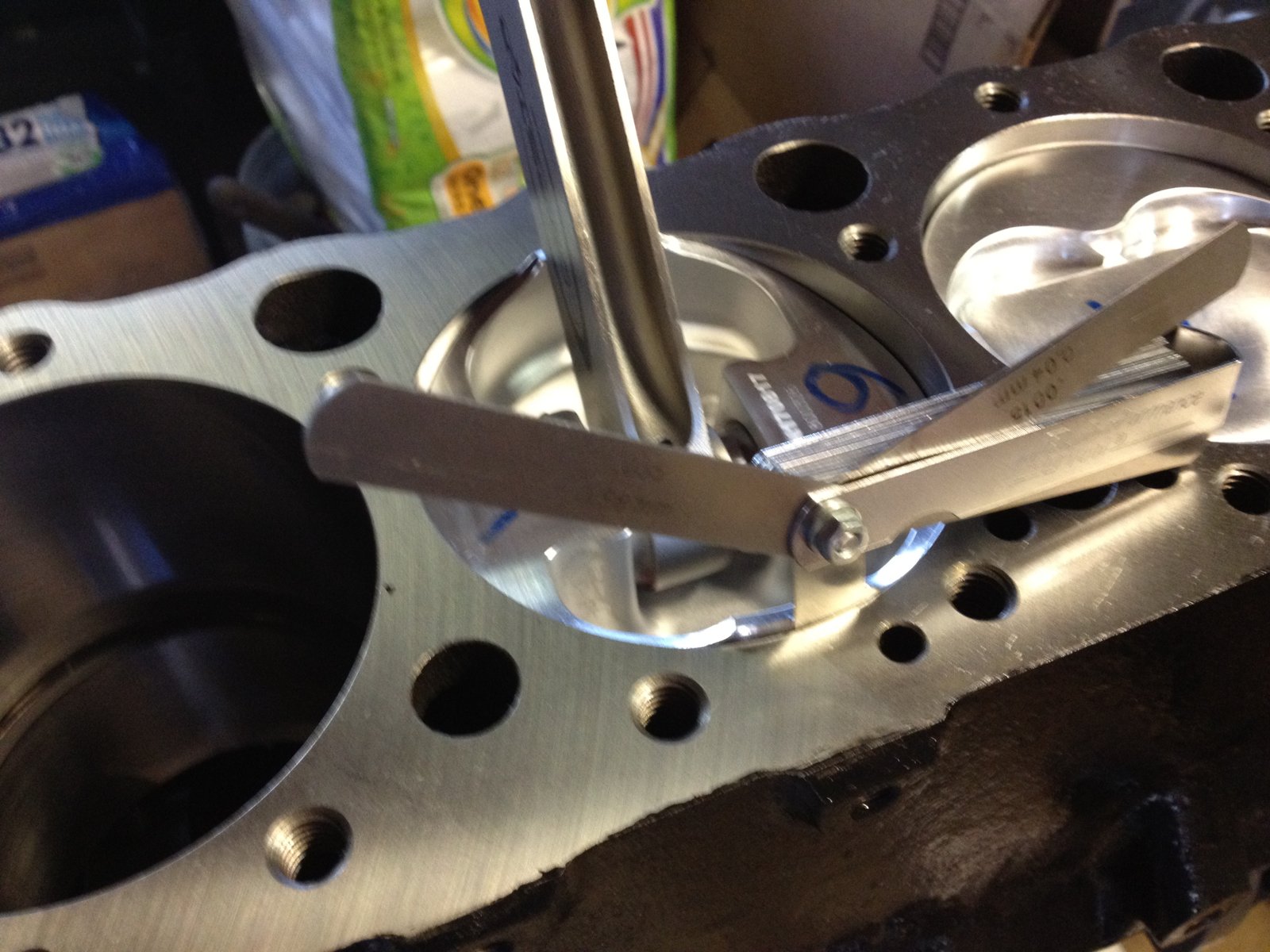

![](x2tn.jpg)
Piston to cylinder wall .004"
|
![](x3tn.jpg)

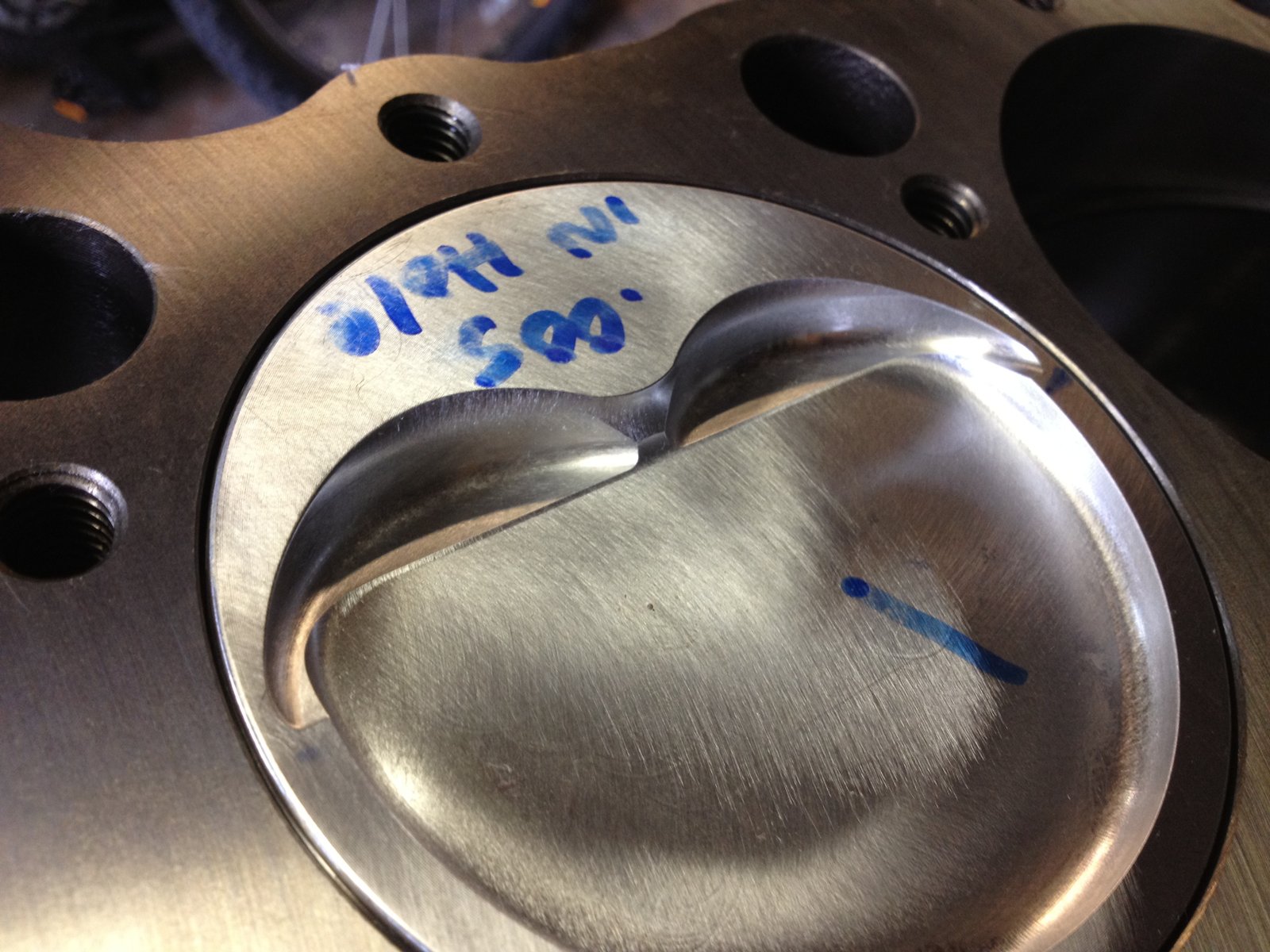

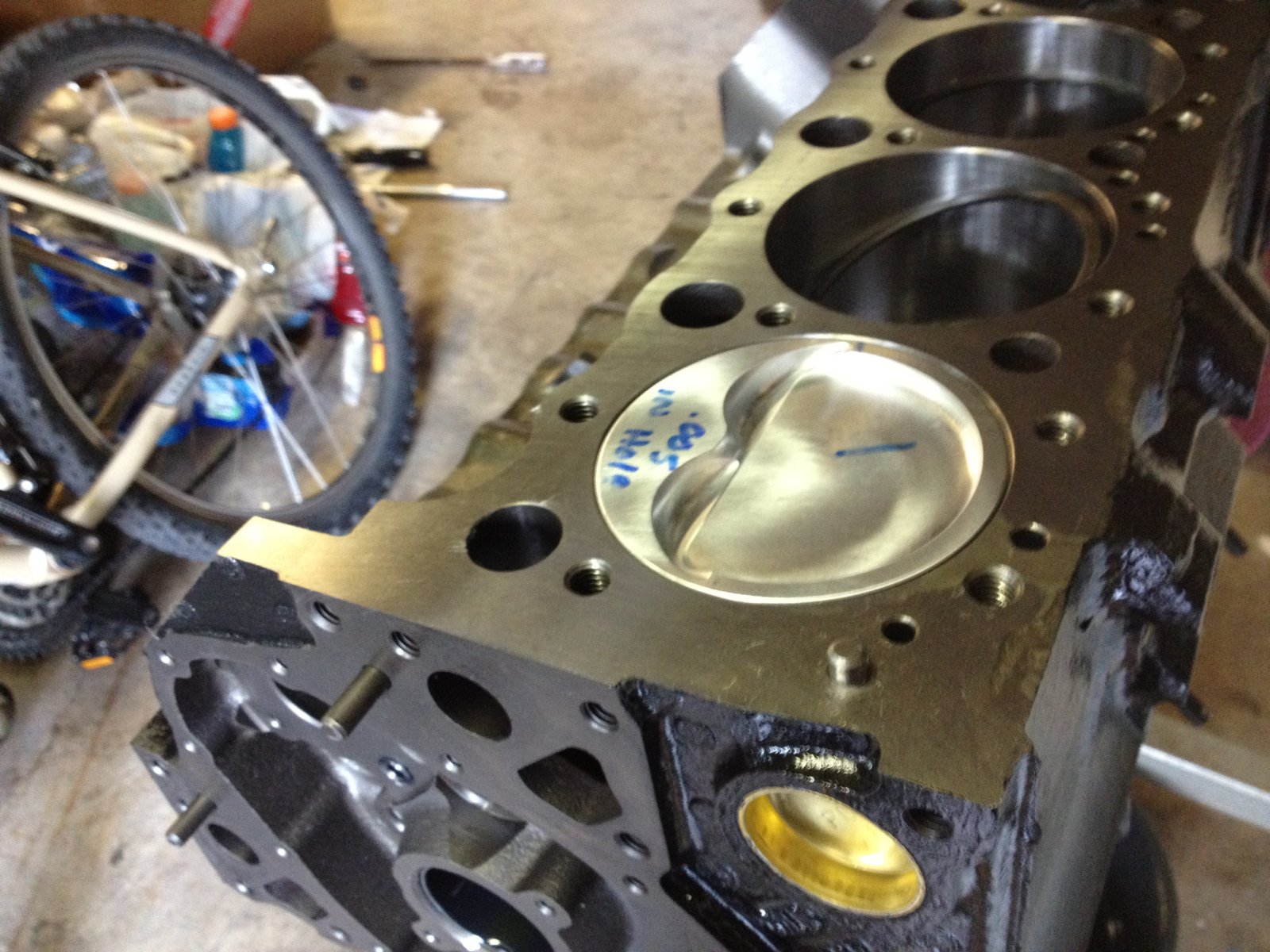

Piston is .005" in hole. The block deck height is
9.005"
|
![](x4tn.jpg)
|
![](x5tn.jpg)

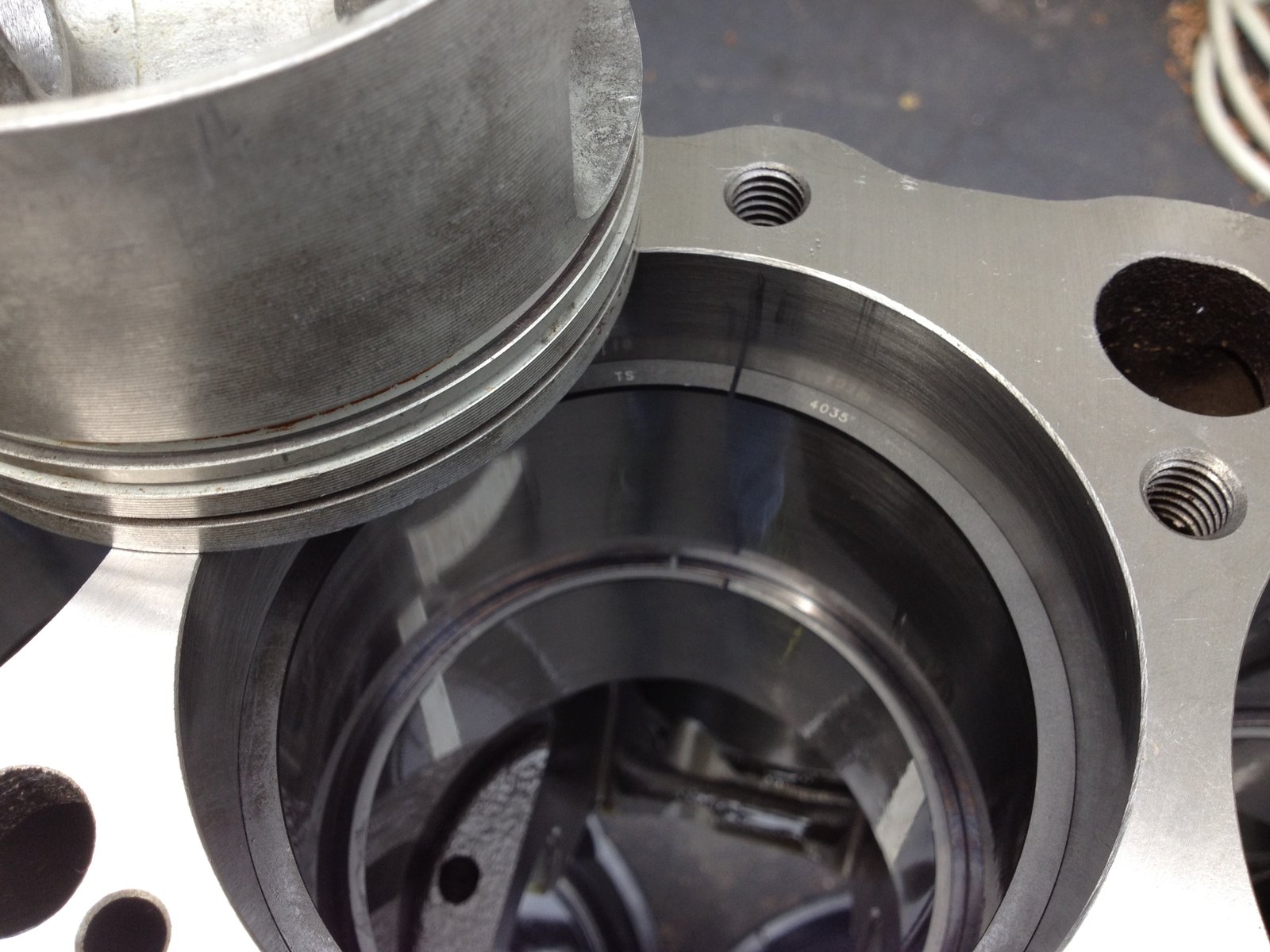

Very tricky to file these rings
|
![](x6tn.jpg)

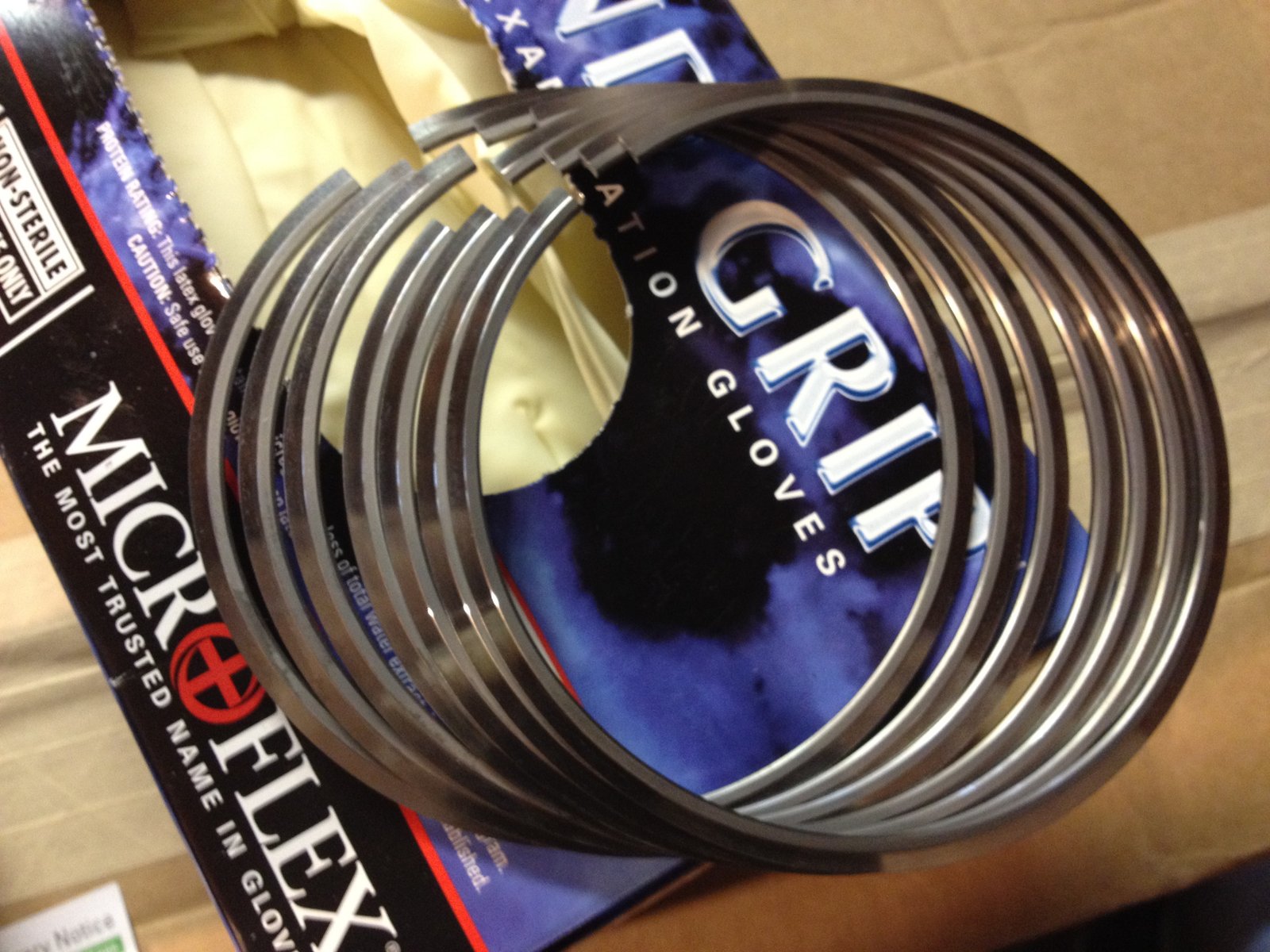

A photo of the total seal top rings
|
![](ztn.jpg)
special galley plugs from GM with tiny oil cooling hole.
|
![](z1tn.jpg)

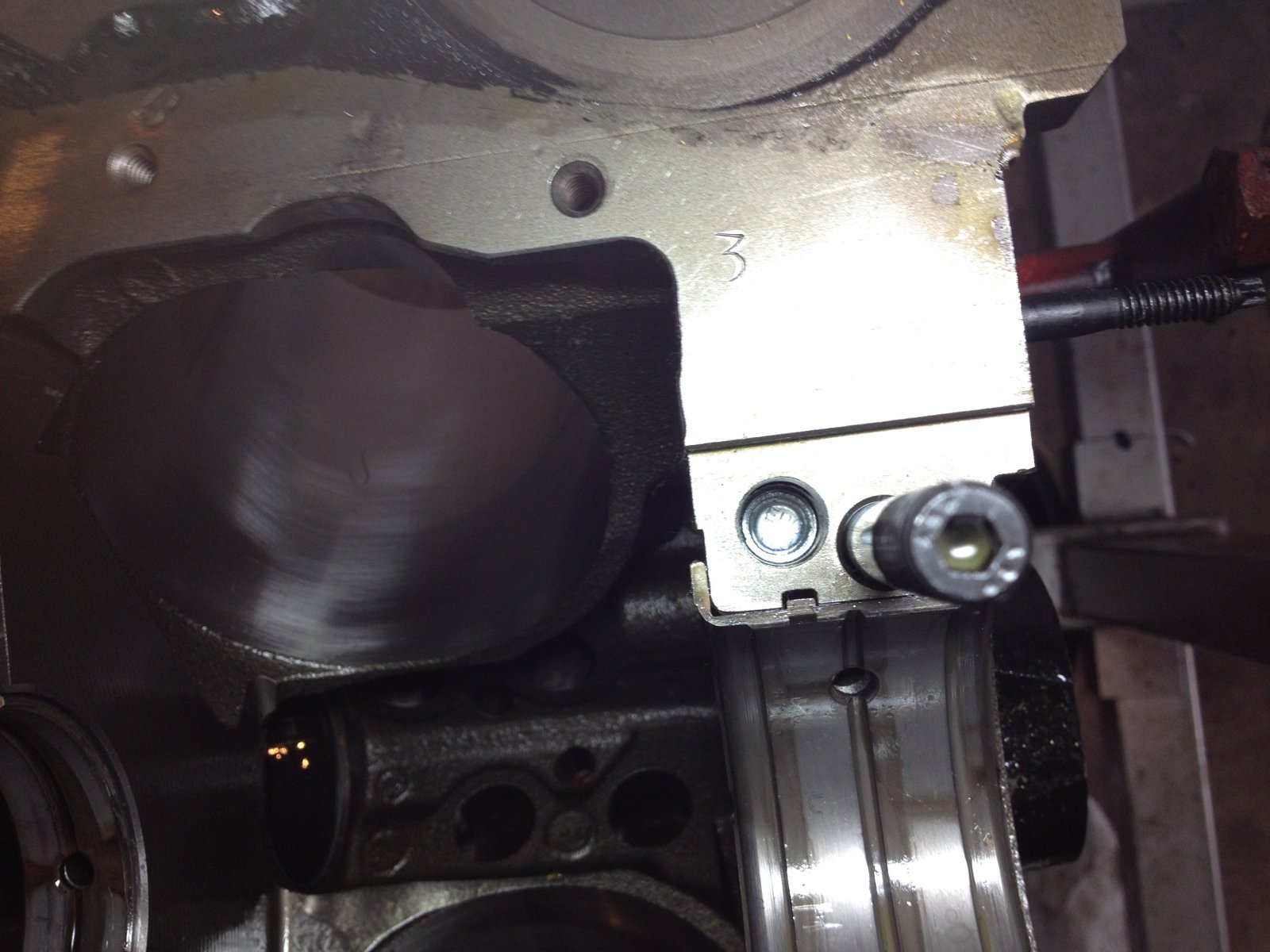

Verification that oil gallery plug is installed under rear main.
|
![](z2tn.jpg)

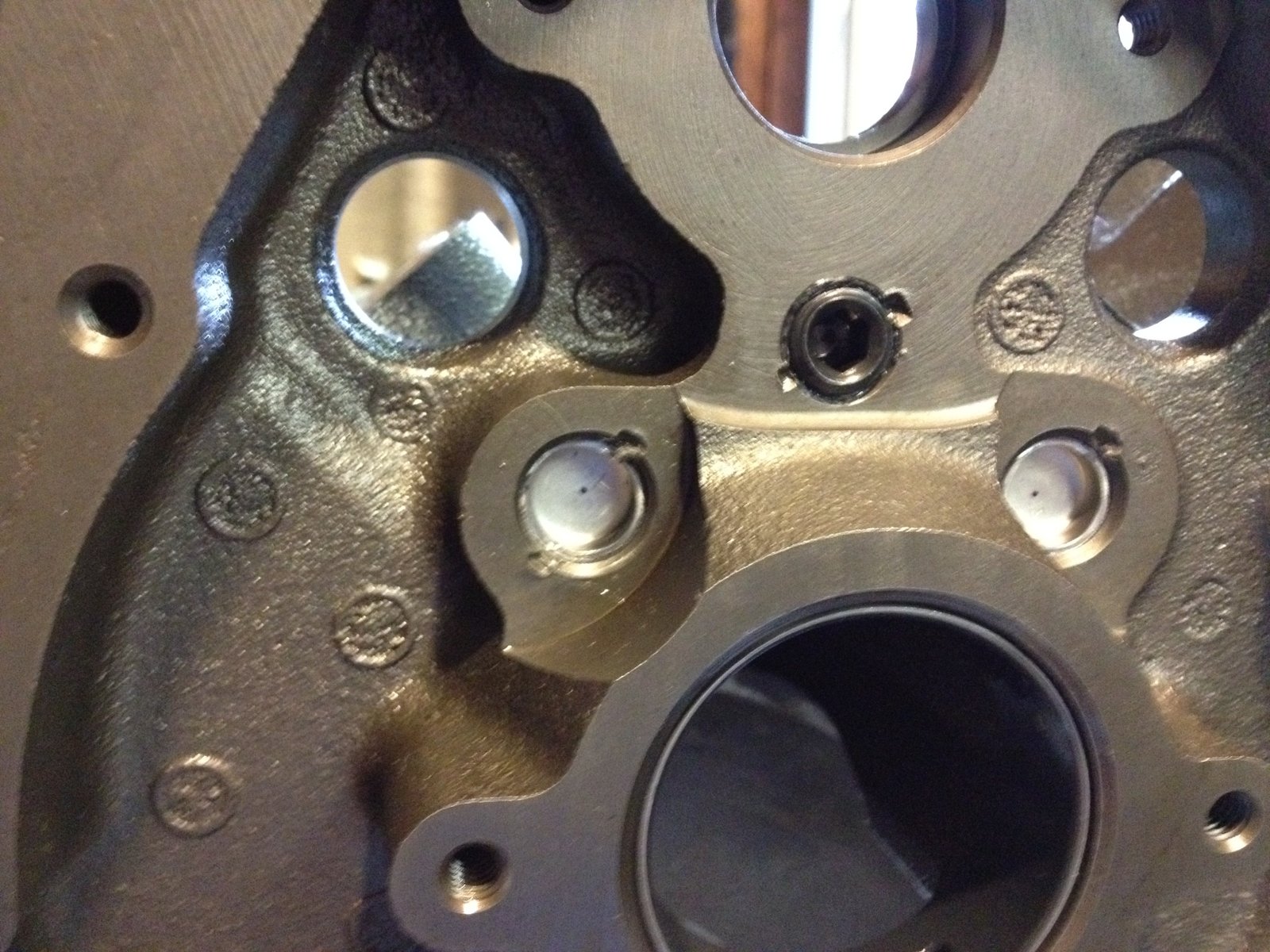

The front oil galley oil plugs.
|

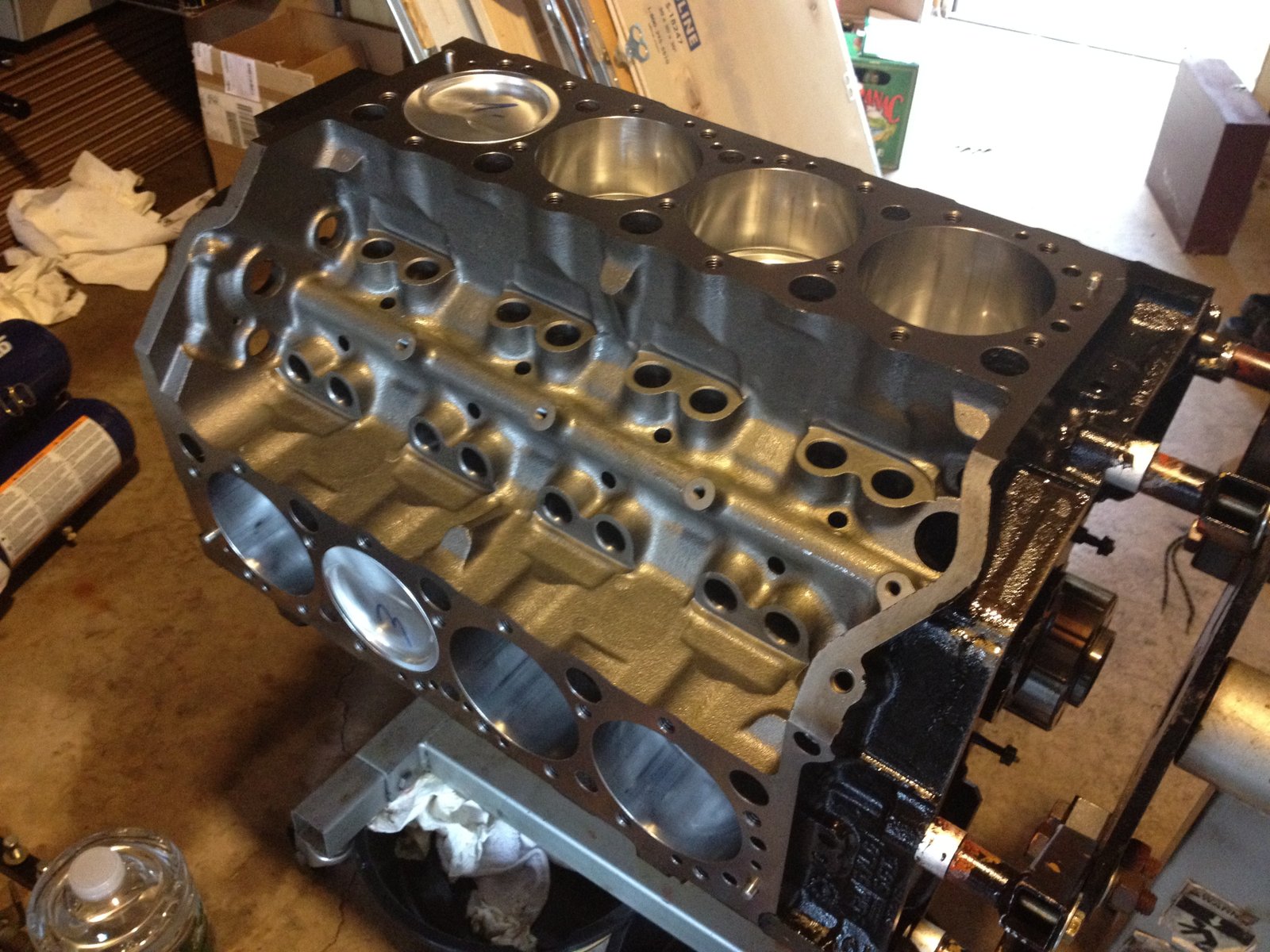

![](z3tn.jpg)
|
![](z4tn.jpg)

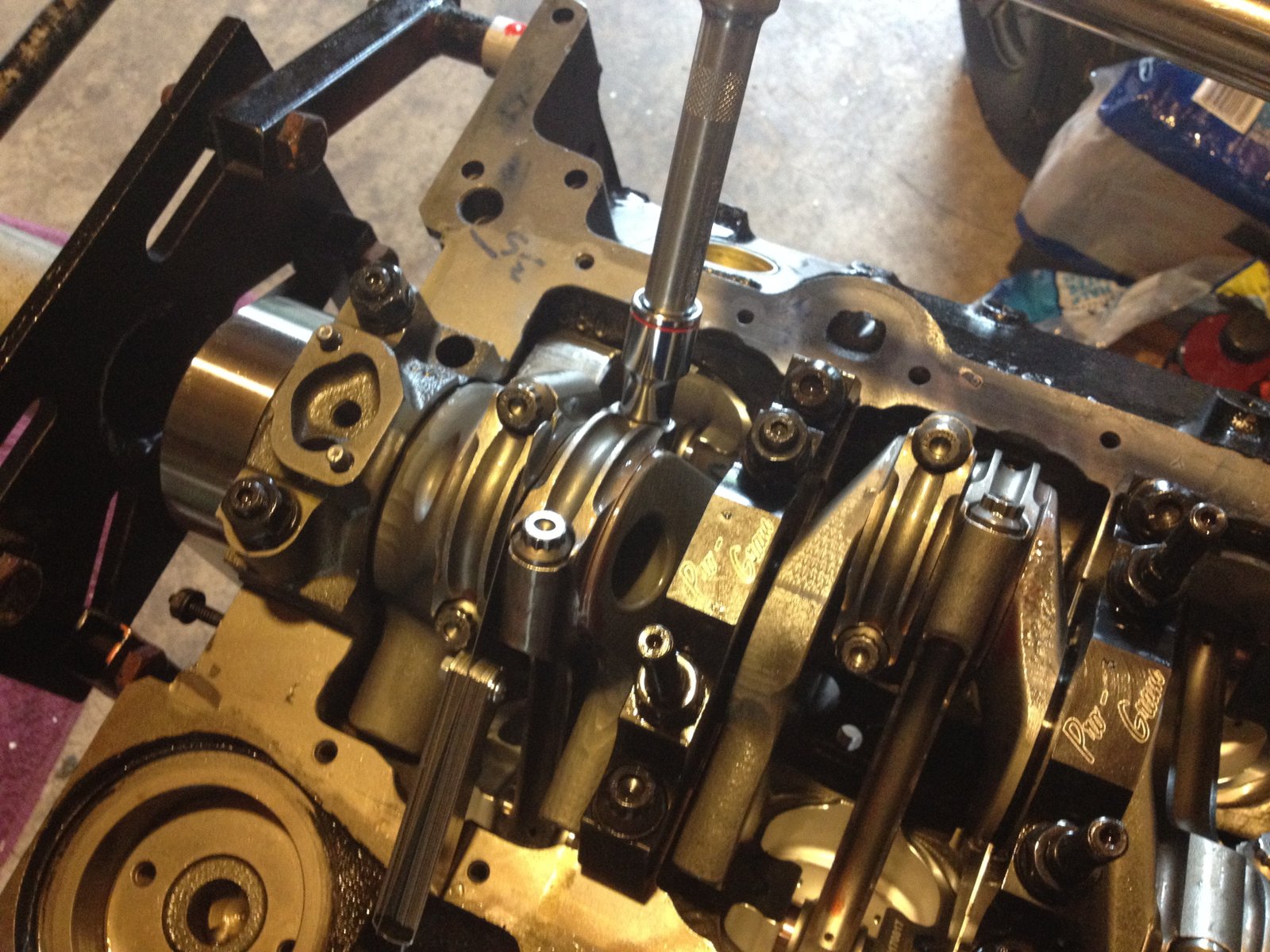

rod bolts torqued to .005" stretch and about 75ft-lb
|
![](z5tn.jpg)

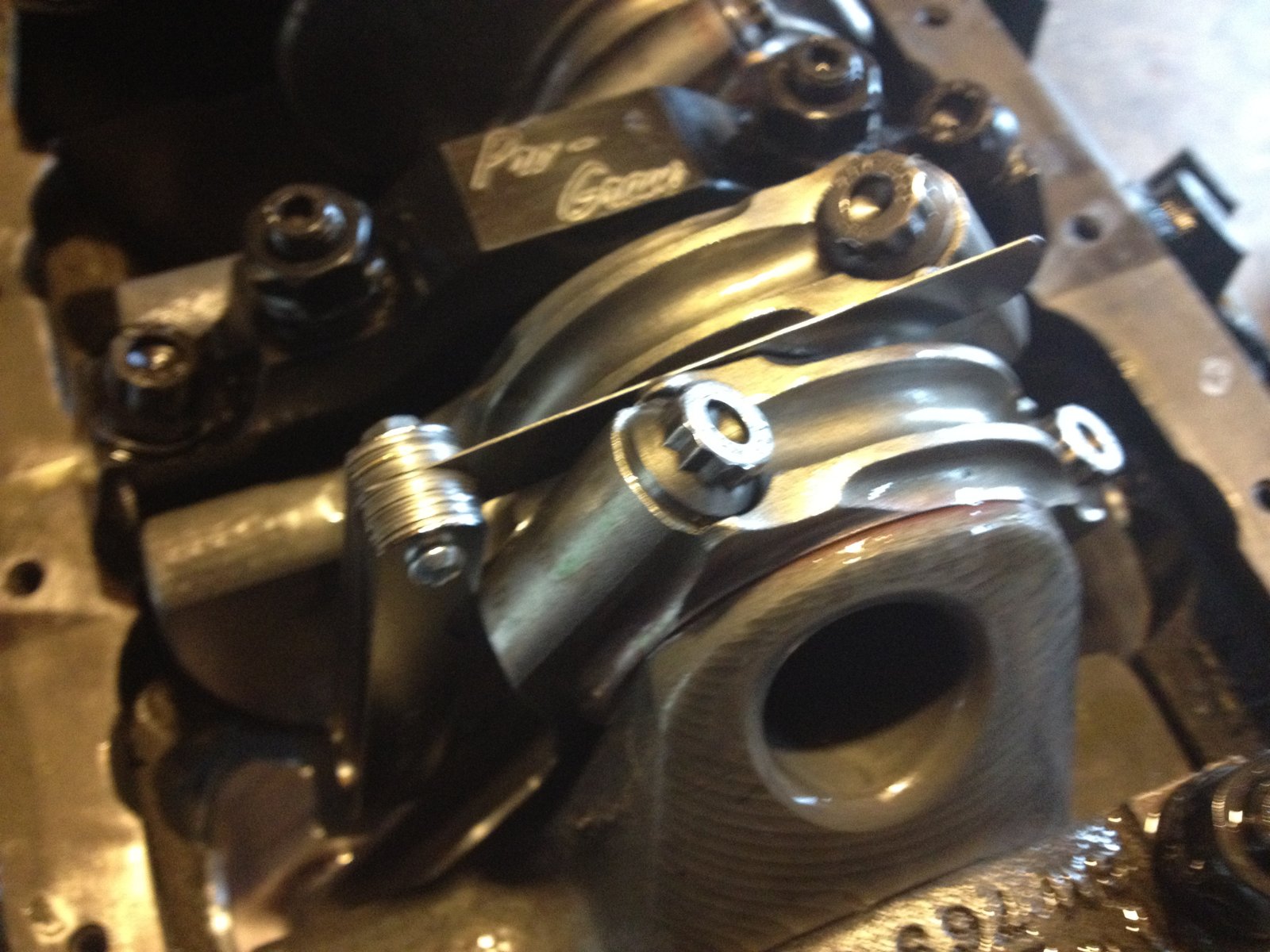

0.018" rod side clearance.
|

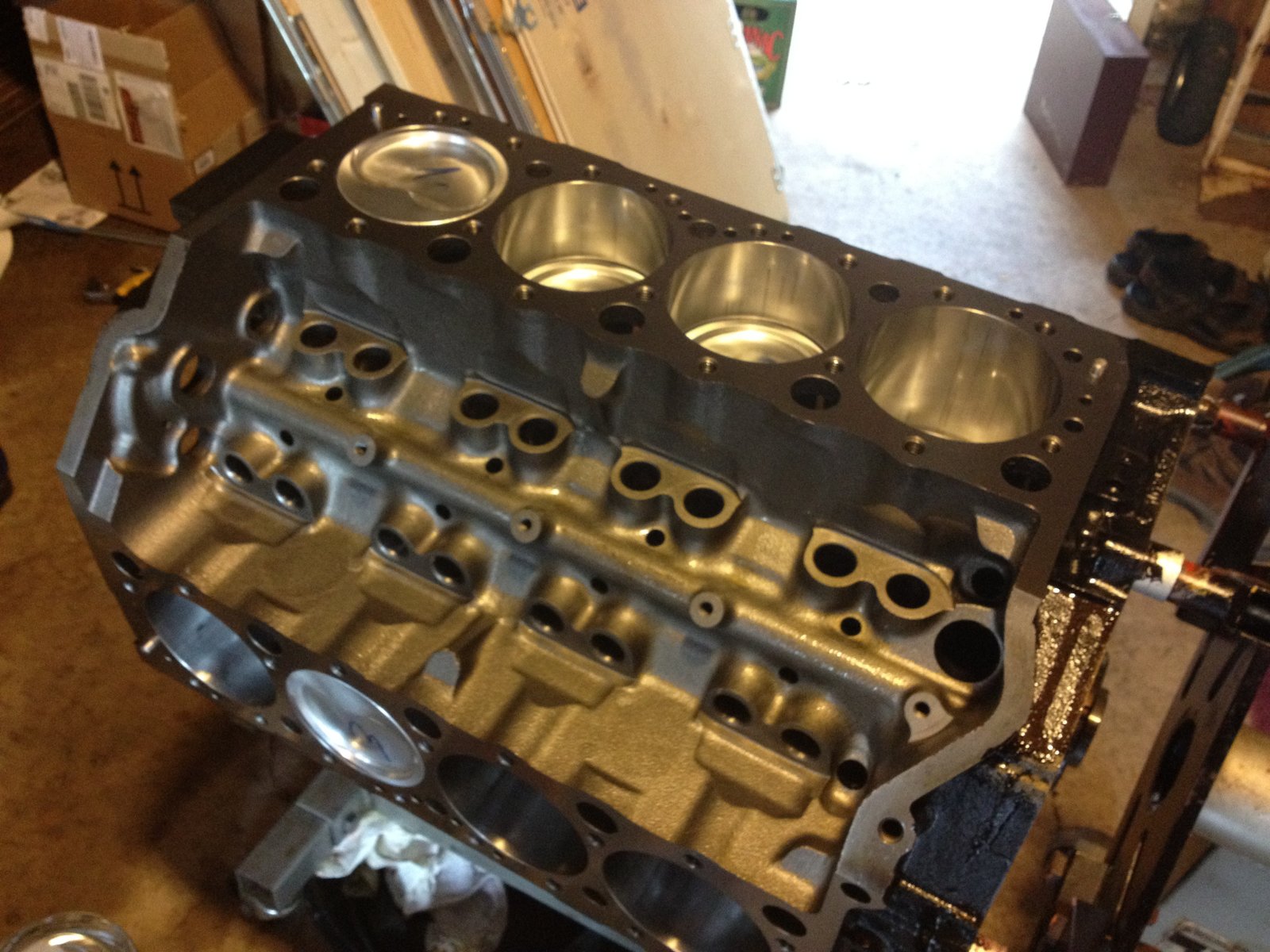

![](z6tn.jpg)
|
![](z7tn.jpg)
Windage tray messaged out of the way of the rod bolts.
|

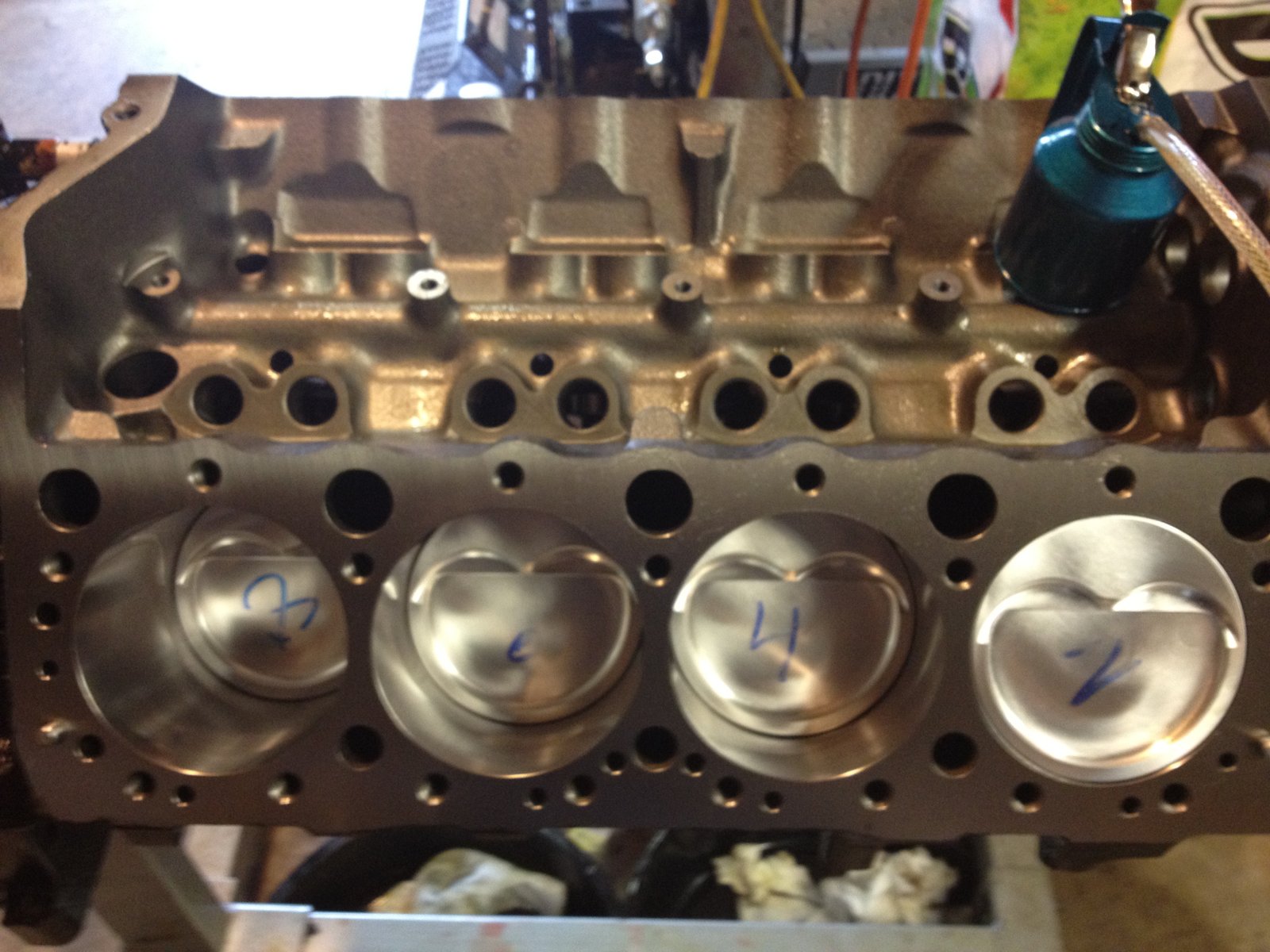

![](z8tn.jpg)
|
![](z9tn.jpg)
|
![](z9atn.jpg)

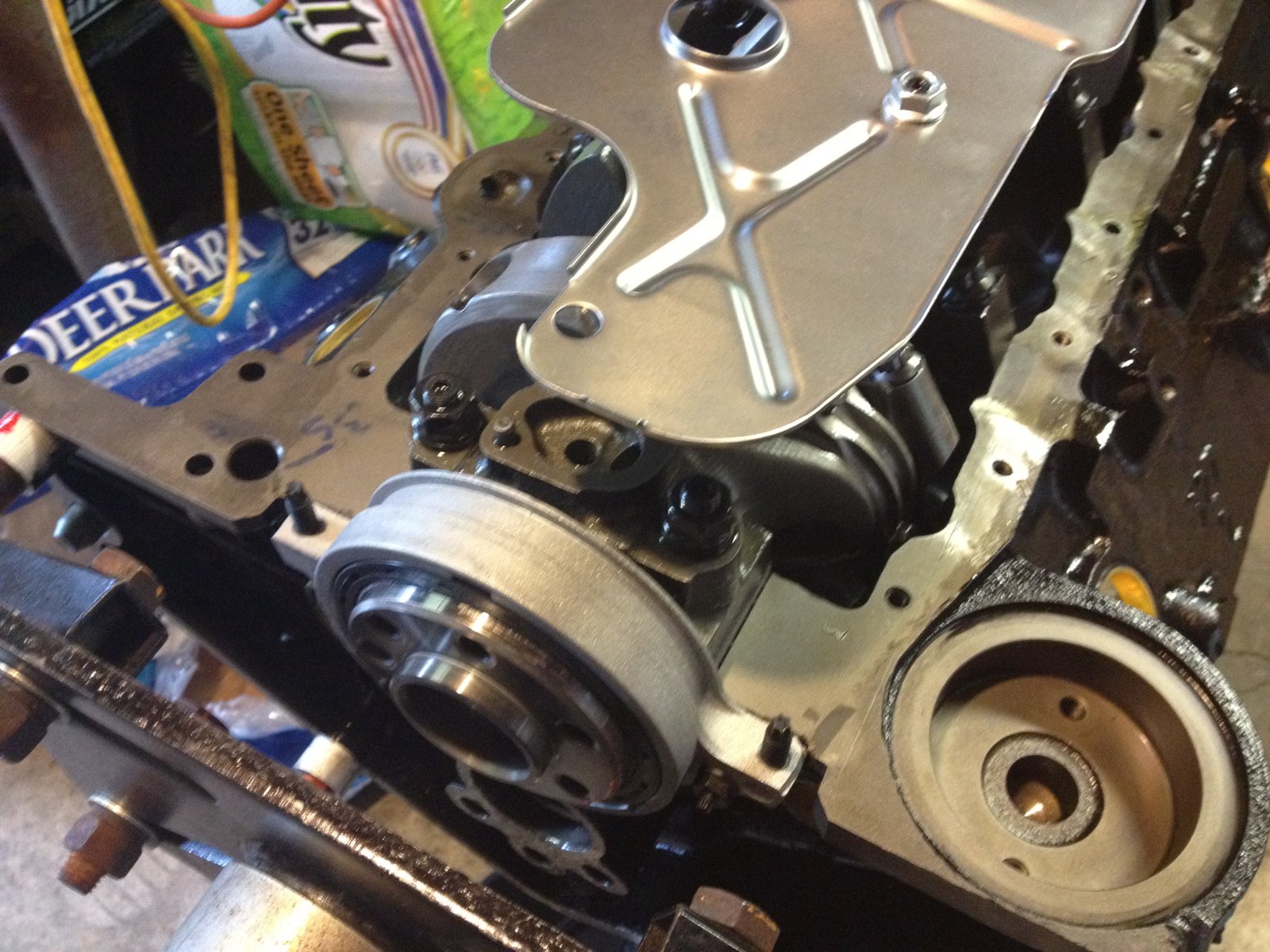

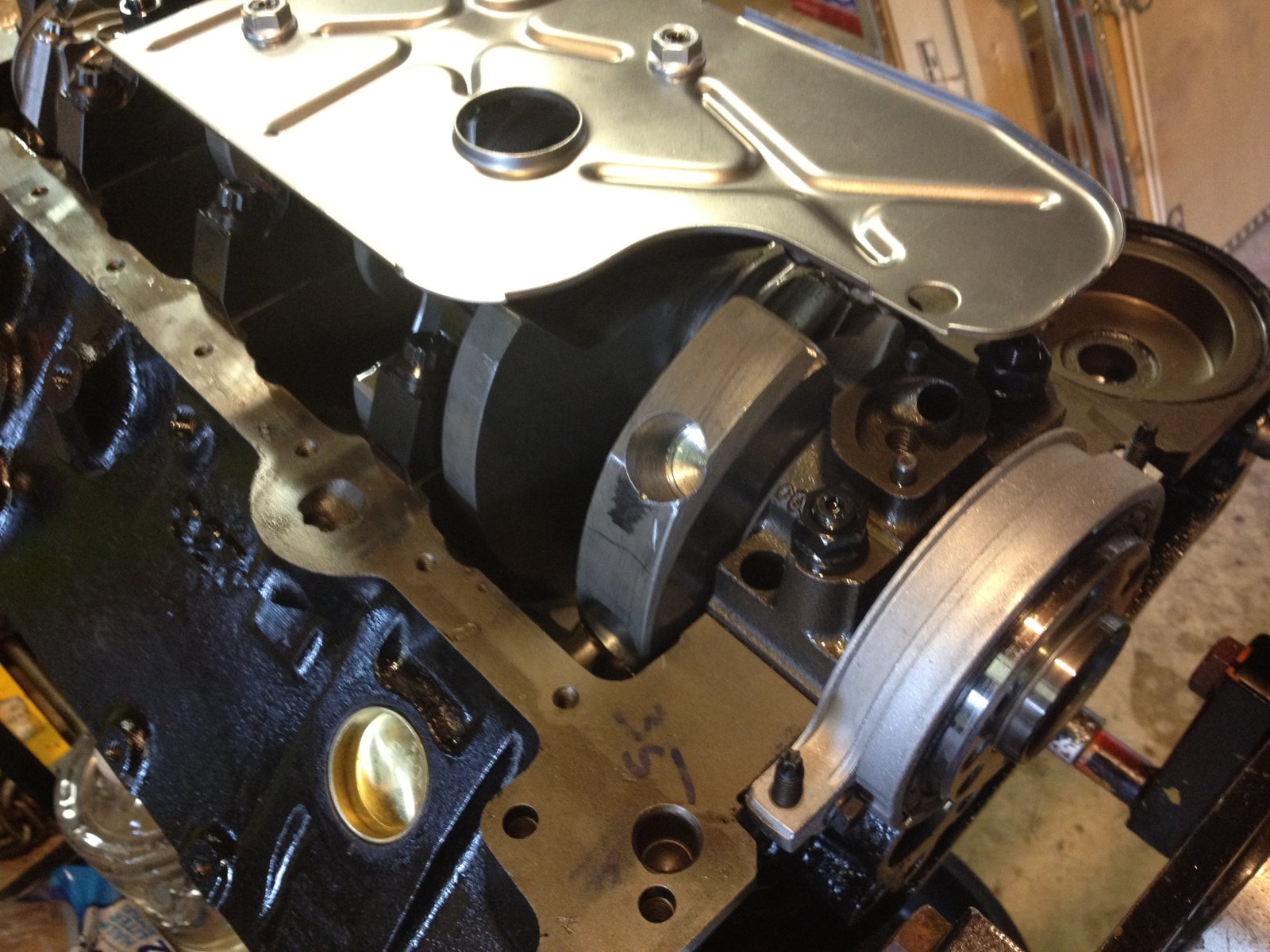

The stock windage tray is vital for keeping air out of the oil.
|

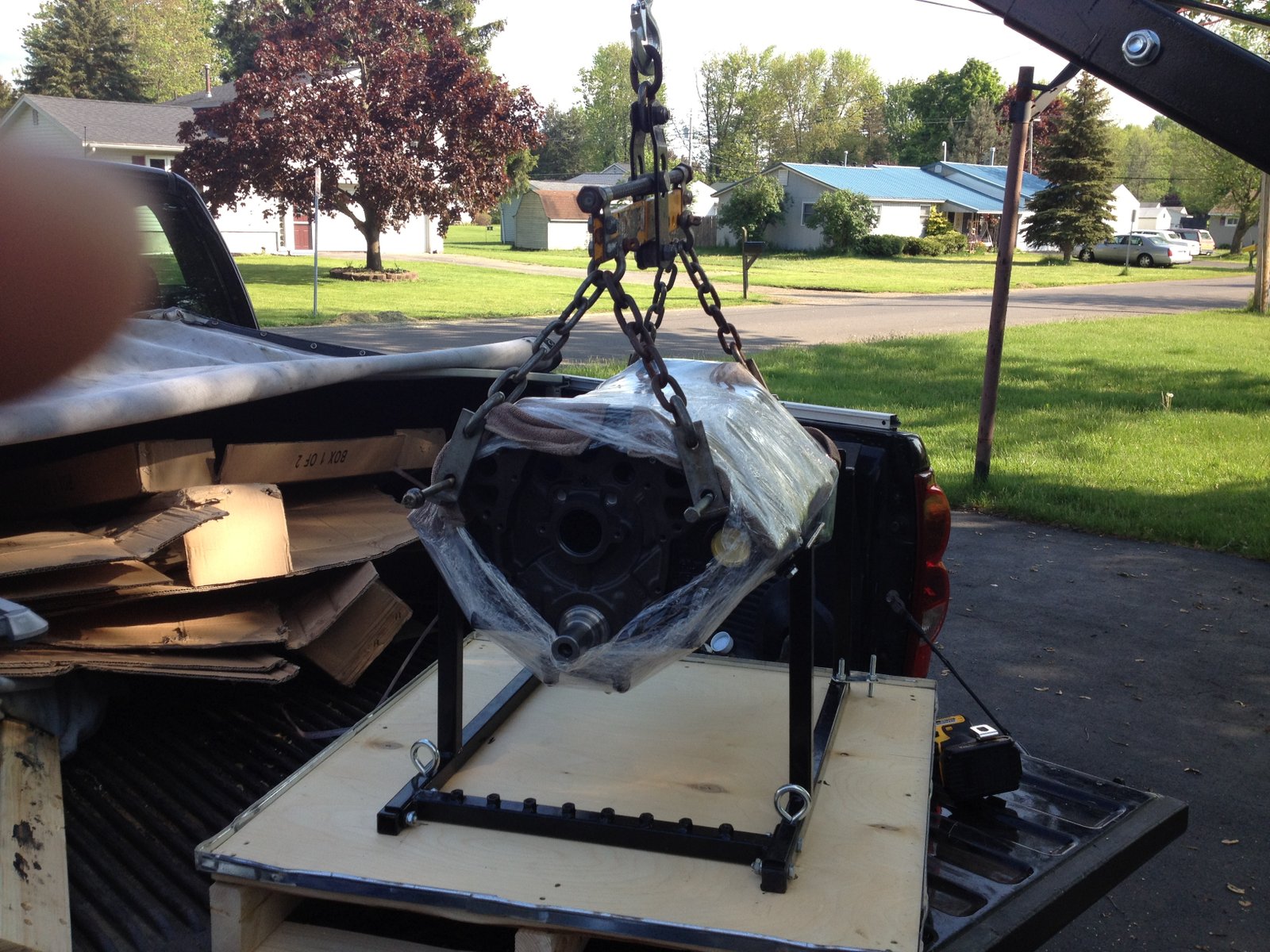

![](ship2tn.jpg)
Export approved crate. Firmly bolted to pallet.
|
![](ship3tn.jpg)

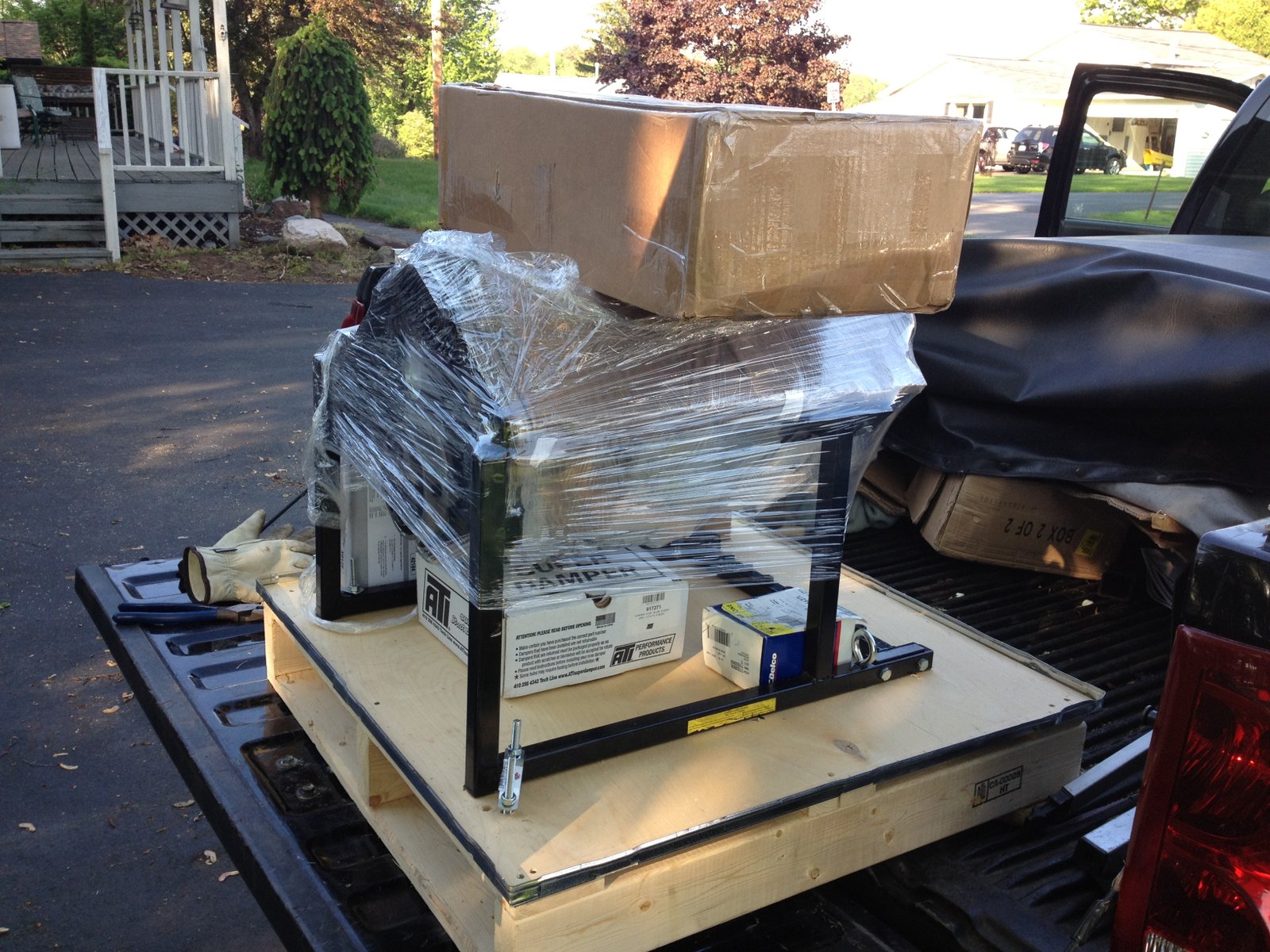

ATI damper, custom headers, other
surprises.
|
![](shiptn.jpg)
Shipping air freight via UPS
|
